Features and Controls

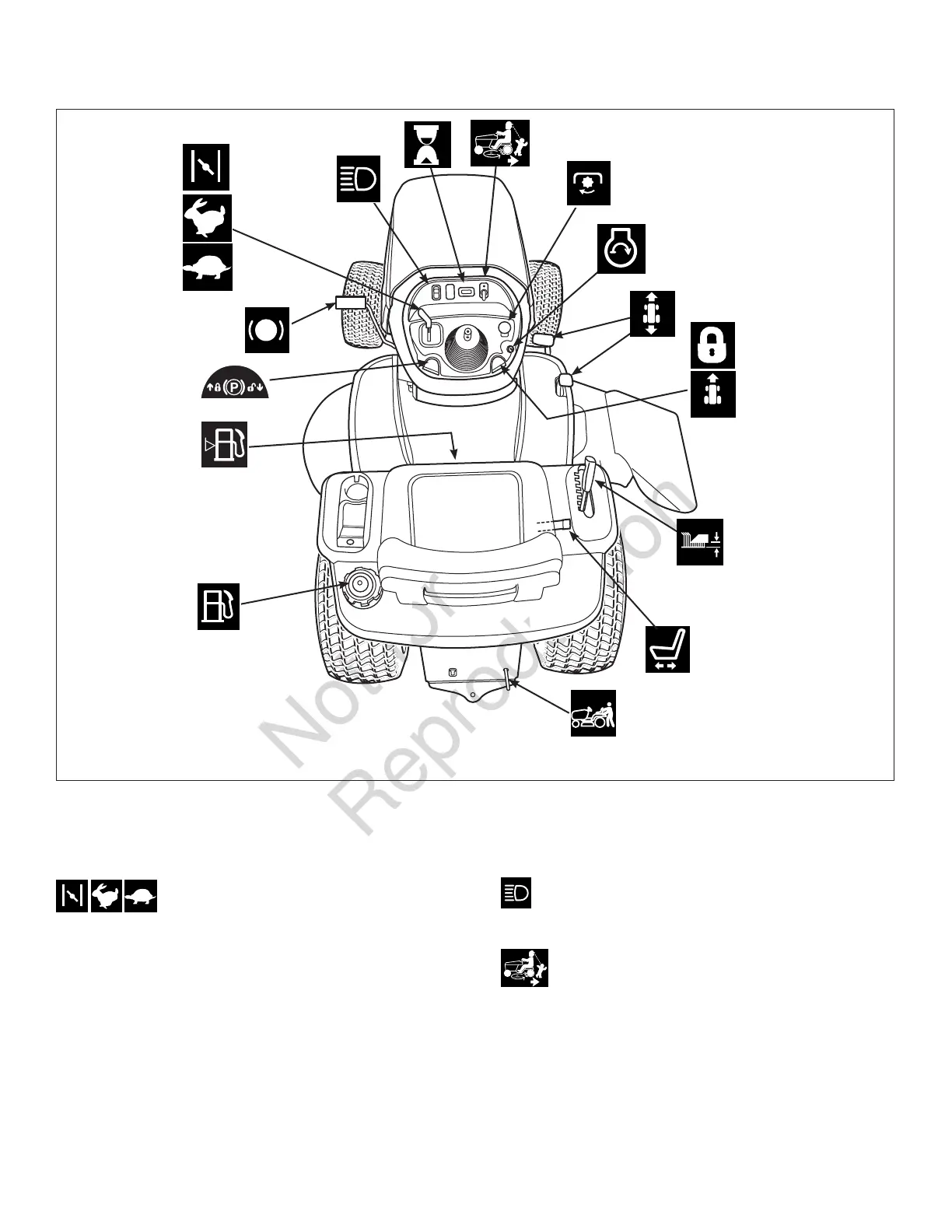

Figure 1
Tractor Controls
10
Headlights
The light switch turns the tractor headlights on and o.
Reverse Mowing Option (RMO)
The Reverse Mowing Option allows for mowing (or use of
other PTO driven attachments) while traveling in reverse.
If you choose to mow in reverse, turn the RMO key after
the PTO is engaged. The L.E.D. light will illuminate, and
the operator can then mow in reverse. Each time the PTO
is engaged the RMO needs to be reactivated if desired.
Throttle/Choke Control
(Choke-A-Matic)
The throttle/choke controls the engine speed and choke
(see Figure 1). Move the throttle/choke to the FAST po-
sition to increase engine speed and SLOW position to
decrease engine speed. Always operate at full throttle.
Move the throttle/choke control to the CHOKE position
for starting a cold engine. A warm engine may not require
choking.
