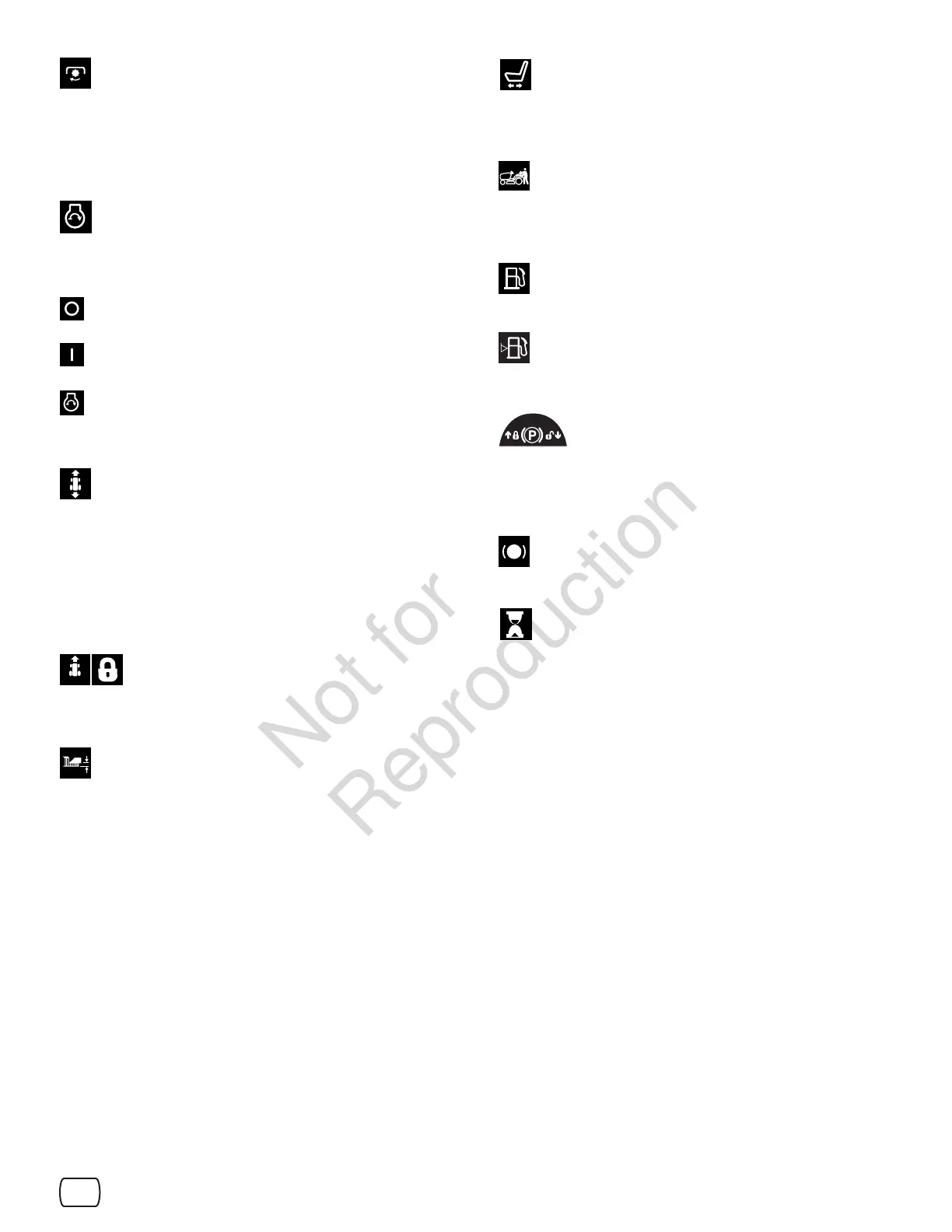

PTO Switch
The PTO (Power Take-O) switch engages and disen-
gages attachments that use the PTO. To engage the
PTO, pull UP on the switch. Push DOWN to disengage.
Note that the operator must be seated rmly in the tractor
seat for the PTO to function.
Ignition Switch
The ignition switch starts and stops the engine, it has
three positions:
OFF Stops the engine and shuts o the
electrical system.
RUN Allows the engine to run and powers the
electrical system.
START Cranks the engine for starting.
NOTICE: Never leave the ignition switch in the RUN posi-
tion with the engine stopped. This drains the battery.
Ground Speed Pedals
The tractor’s forward ground speed is controlled by the
forward ground speed control pedal. The tractor’s reverse
ground speed is controlled by the reverse ground speed
control pedal.
Depressing either pedal will increase ground speed.
Note that the further down the pedal is depressed, the
faster the tractor will travel.
Cruise Control
The cruise control is used to lock the ground speed con-
trol in forward. The cruise control has six lock positions.
Mower Height of Cut Adjustment
The mower cutting height adjustment lever controls the
mower cutting height. The mower cutting height can be
set to one of seven positions between 1.5” and 4.0” (3,8
cm and 10,2 cm).
Seat Adjustment Lever
The seat can be adjusted forward and back. Move the
lever, position the seat as desired, and release the lever
to lock the seat into position.
Transmission Release Lever
The transmission release lever deactivates the trans-
mission so that the tractor can be pushed by hand (see
Pushing the Tractor by Hand).
Fuel Tank
To remove the cap, turn counterclockwise.
Fuel Level Gauge
Displays the fuel level in the tank.
Parking Brake
The parking brake knob is used to lock the parking brake
when the tractor is stopped. Fully depressing the brake
pedal and pulling up on the knob engages the parking
brake.
Brake Pedal
Depressing the brake pedal applies the tractor brake.
Hour Meter
The hour meter measures the number of hours the key
has been in the RUN position.
