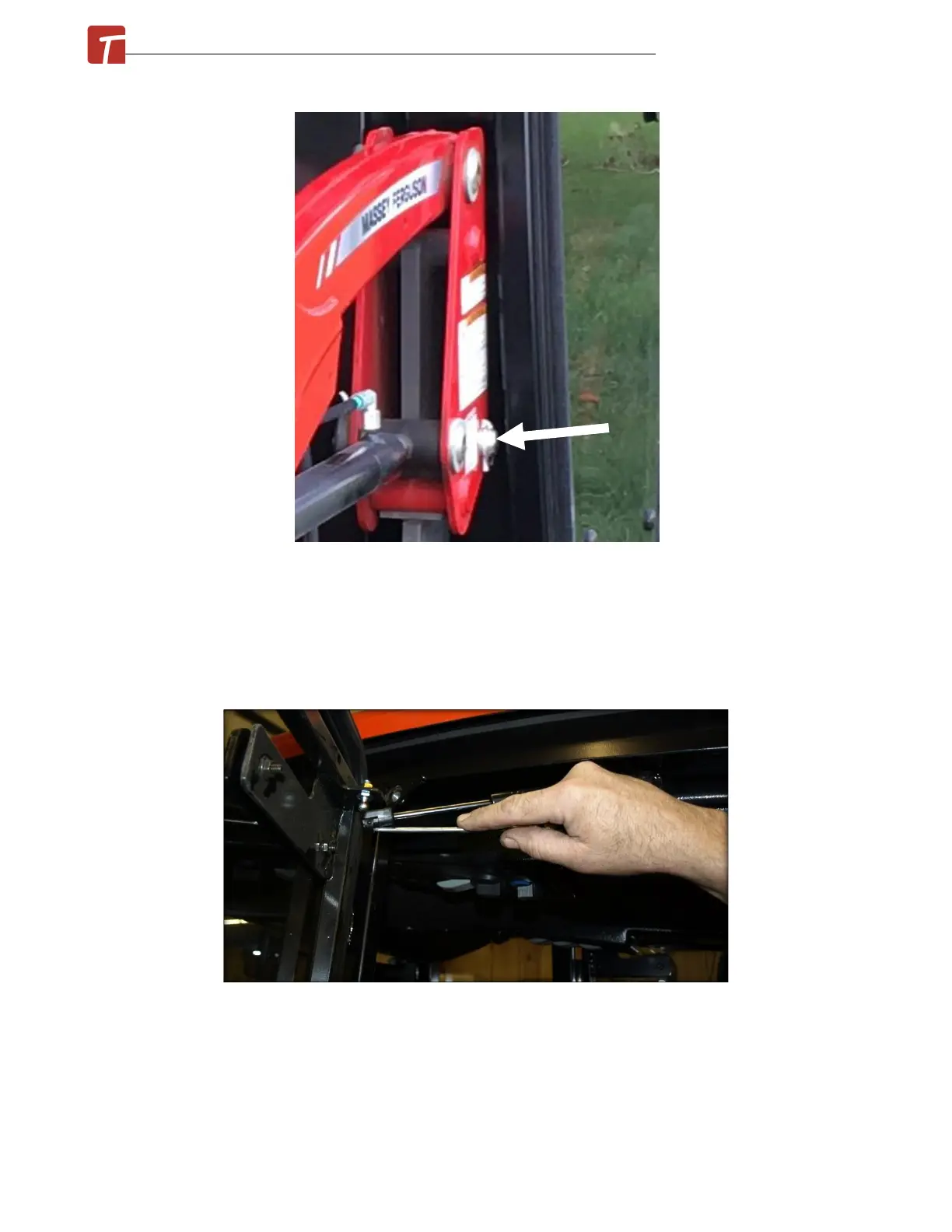

8. Return to the cab to install lift brackets next. To remove the gas shock on the left cab door,
slide a flat screwdriver underneath the small clip on the end cap that must be pulled UP order
to pop the shock off the ball stud. The shock will release very easily when this is accomplished.
Lift the door assembly straight up and off the cab and put aside for now. Remove right door as
well. Un-bolt and remove both under-hood shields from cabs.
9. Take one of the provided cab lift bolts, a ½” x 4 ½ hex bolt, and bolt to the tab in the top
upper corner of the door opening; weld nut is located behind the tab. Repeat for the other
side.
June 2021© Massey GC1705 ROPS Cab Installation Manual

Other manuals for MASSEY FERGUSON GC1715

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MASSEY FERGUSON GC1715 and is the answer not in the manual?

MASSEY FERGUSON GC1715 Specifications

General IconGeneral
Engine Type3-cylinder diesel
TransmissionHydrostatic
Fuel Capacity6.6 gallons
Drive System4WD
Tire OptionsTurf, Industrial
