10. Use a lift strap or chain, and connect the lift bolts together. Attach to an over-head hoist or
fork lift and prepare to lift the cab off shipping pallet. Remove the bolts attaching cab to
shipping bracket and then lift cab up.

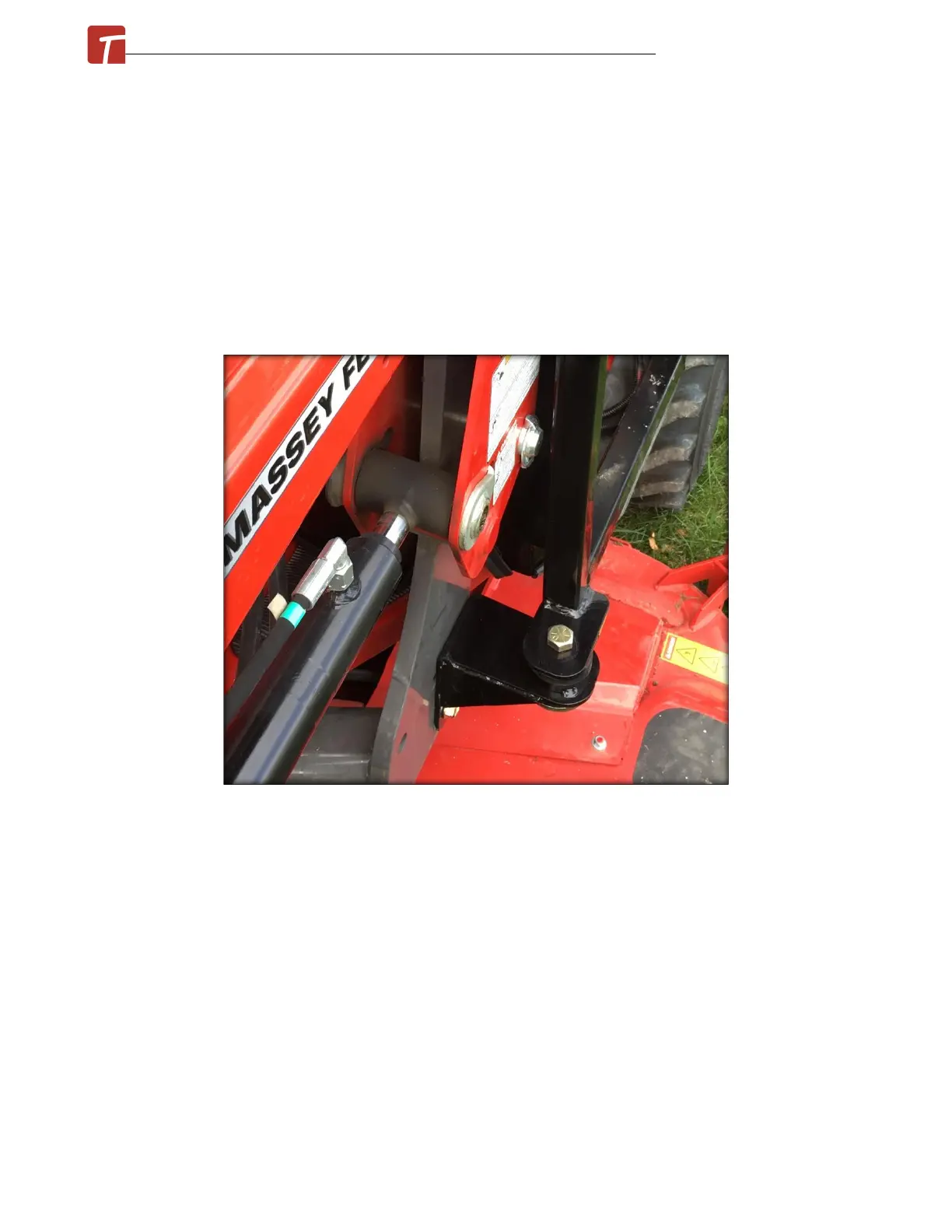

11. Position the cab straight above the tractor and slowly lower down onto the tractor until the
isolators are contacting the steel mounting plates. Use the provided 5/8” x 3” hex bolts, heavy
flat washer and flange nuts, and start all four mounting bolts. The heavy flat washer needs to
be located properly to ensure proper fastening. It is located between nut and the isolator from
underneath.
12. Once all ROPS bolts are started, torque all fasteners to required torques. For 5/8”
fasteners, apply 205 ft-lbs of torque, for ½” fasteners, apply 102 ft-lbs.
13. Remove cab lift straps/chains and bolts. Store for future use if removing cab in summer.
14. Take the left side hood shield and the provided ¼” x ¾” flange bolts and nuts, then position
against hood. Ensure good seal and then fasten into place.
June 2021© Massey GC1705 ROPS Cab Installation Manual
