2 【Low speed】： The shift handle is in the solid line position in Figure 2-16,the vehicle is in the low speed gear, the
vehicle speed is slower, the power increases,suitable for loading or driving on ramp pavement.

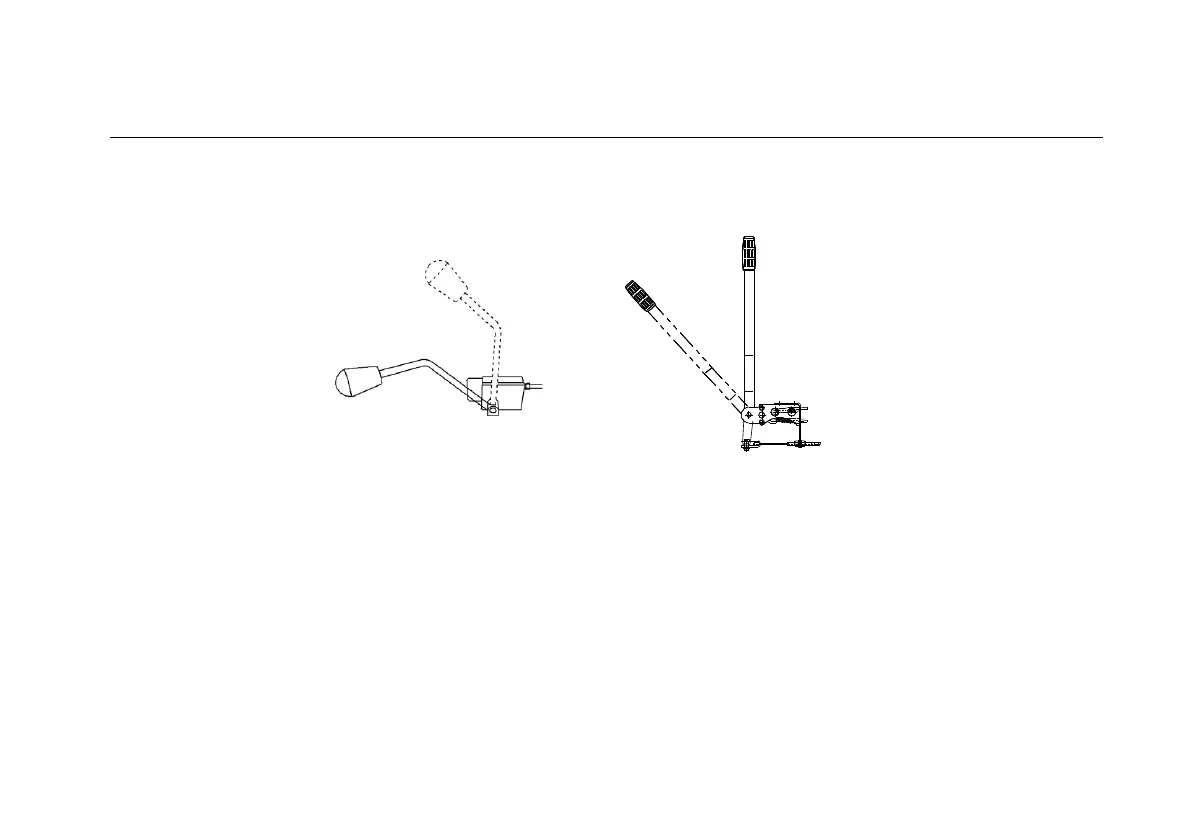

Figure 2-16 Variable speed handle
2-7 Charging Plug & Charger
2-7-1 Charging Plug
The charging socket position is shown in figure 2-1,2-2,2-3,2-4.In the meter power display insufficient need to connect
the charger to charge the battery.Charging time refer to charger instruction sheet.
When charging, please open the charging port protective cover and connect the charger.Please disconnect the power
after charging and make sure the protective cover is closed.
