Massive BL1 - Massive Nano Blu Amplifier Wiring Diagrams; BLX4;BLX48 Amplifier Wiring (Multi-Woofer); BL1;BL3 Amplifier Wiring (Single Woofer)

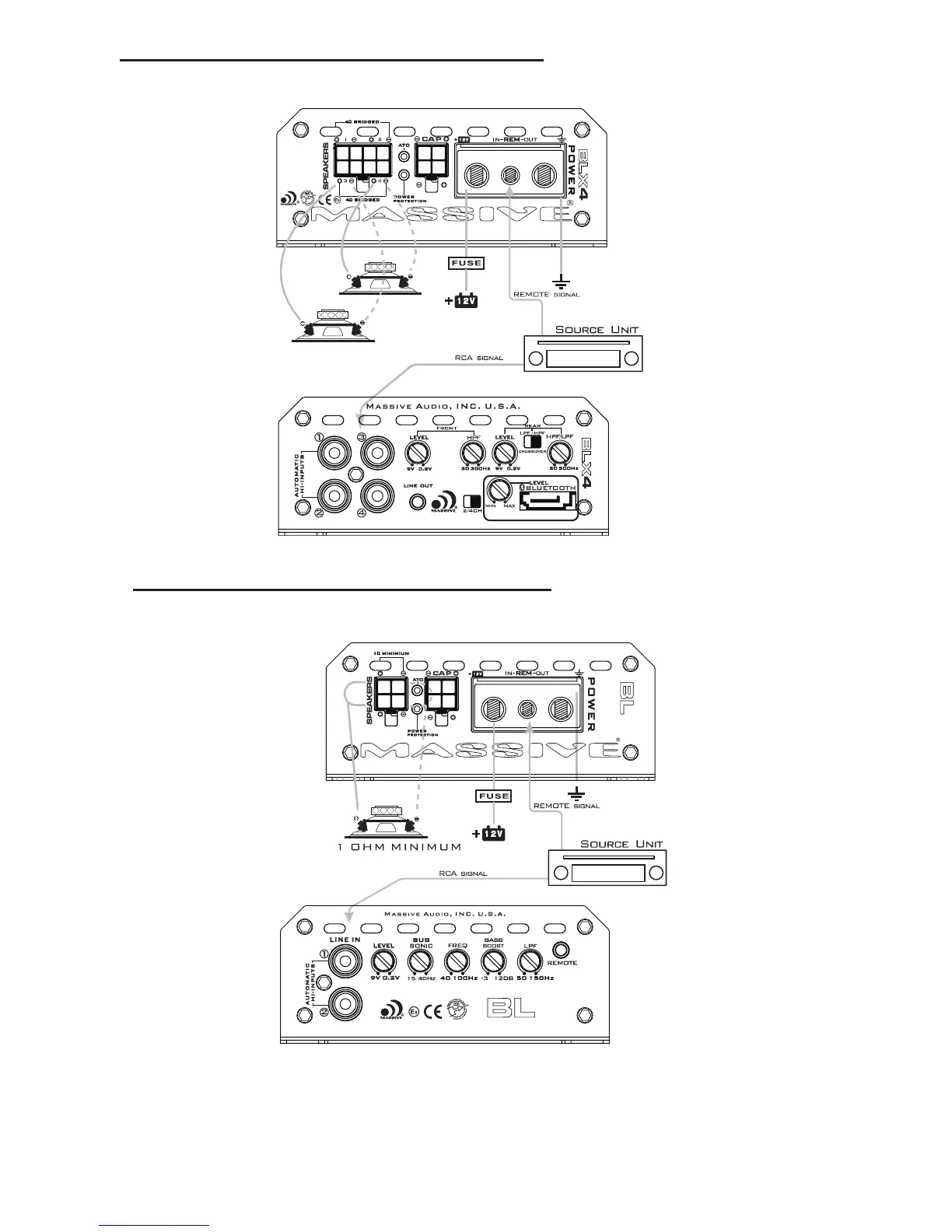

Fig 5. BLX4/BLX48 amplifier wiring
(Multi-woofer load)
Wiring Diagram
7
Equivalent parallel woofer loads cannot be less than the minimum stable
load rated in this manual. The two negative and two positive speaker terminals
are wired internally inside each amplifier.
Only one negative and one positive are needed when wiring to the amplifier.
Fig 6. BL1/BL3 amplifier wiring
(SINGLE WOOFER LOAD)
Wiring Diagram
1
1
