Massive BLX4 - BLX2 Amplifier Wiring (1-Channel Mode); BLX2 Amplifier Wiring (2-Channel Mode)

Massive BLX4
17 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
2OHM-4OHM
2OHM-4OHM

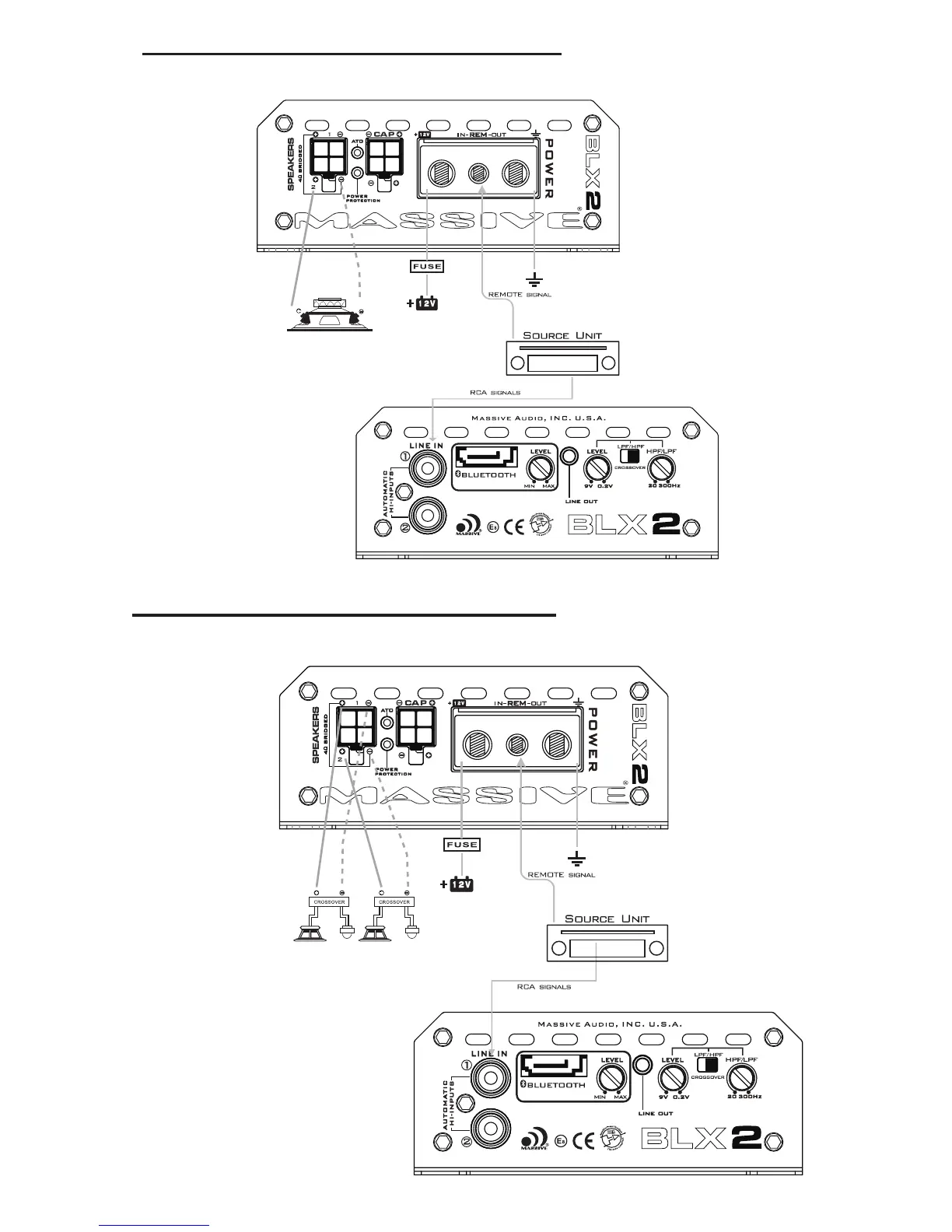

Fig 10. BLX2 AMPLIFIER WIRING
(2-CHANNEL MODE)
Wiring Diagram
9
Fig 9. BLX2 AMPLIFIER WIRING
(1-CHANNEL MODE)
Wiring Diagram
2 OHM MINIMUM
