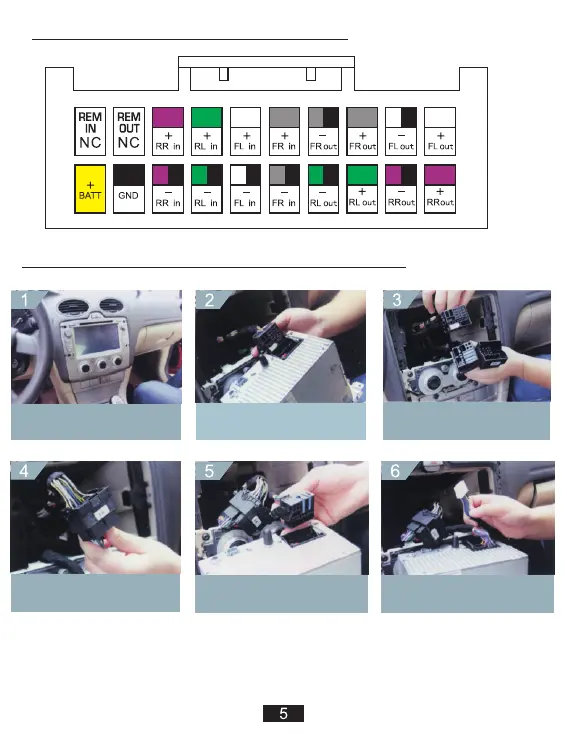

WIRE WIRING DIAGRAM
INSTALLATION FLOW CHART
yellow
green
purple/
black
black
white gray
gray/
black
green
/black
gray white
purple
purple
purple/
black
green
green
/black
gray/
black
white/
black
white/
black
Locate harness for the
vehicle
Pull through DSP-1 wiring
harness to head unit
Disconnect wiring harness
from head unit
Reconnect wiring harness
Remove head unit from
dash
Install proper harness for
your vehicle
