1.3 Load regulation: CV≤0.01%+3mV(I≤3A)
CC≤0.2%+3mA(I≤3A)
CV≤0.01%+5mV(I>3A) CC≤0.2%+5mA(I>3A)
1.4 Ripple and noise: CV≤0.5mVr.m.s (I≤3A) CC≤3mAr.m.s (I≤3A)
CV≤1.0mVr.m.s (I>3A) CC≤6mAr.m.s (I>3A)
1.5 Protection: constant current or short-circuit protection
1.6 Voltage indication accuracy: LED/LCD±1%+2digits, analogue display 2.5%
1.7 Current indication accuracy: LED/LCD±2%+2digits, analogue display 2.5%
1.8 Environment: 0 ~+40
0
C Relative humidity: <90%
2. OPERATION

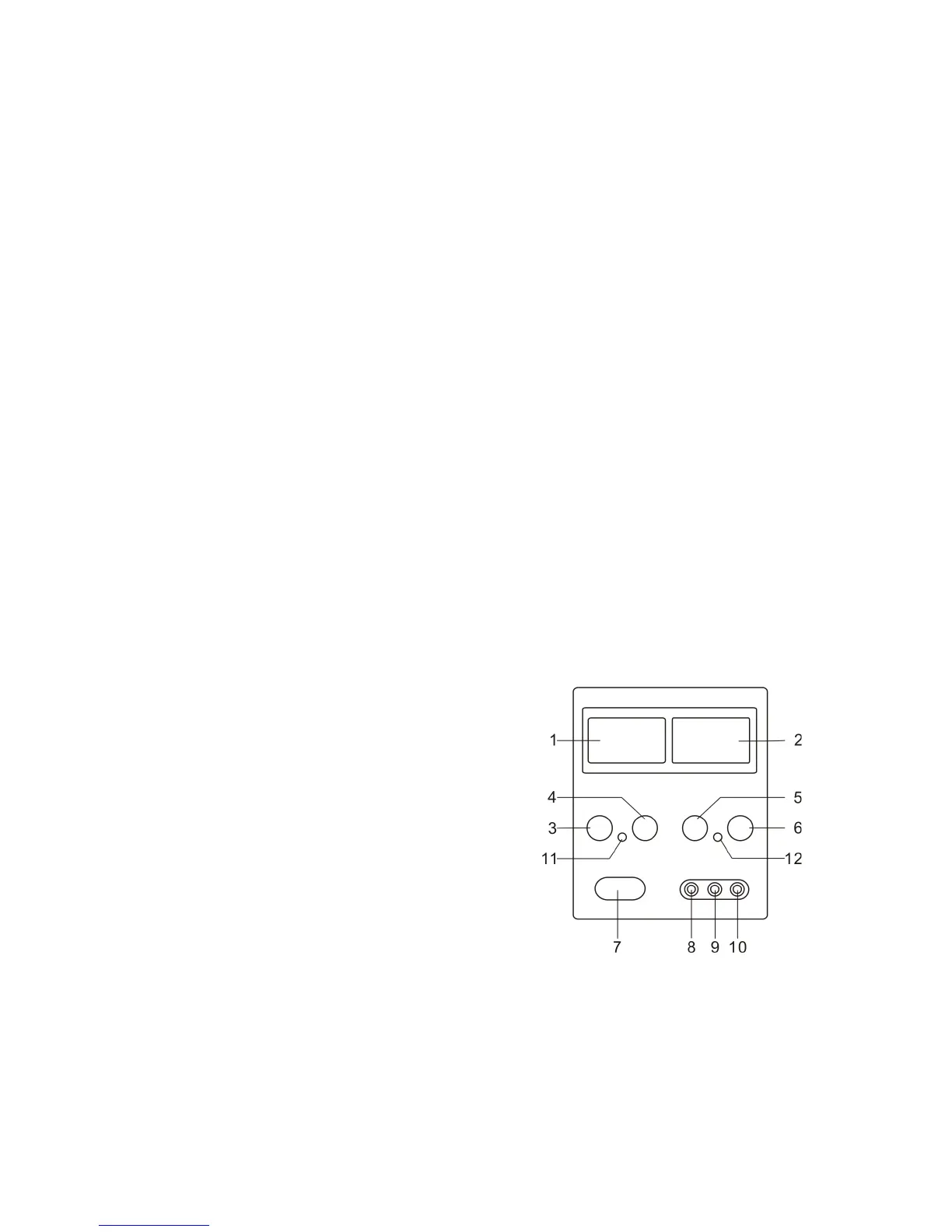

2.1 Front panel controls.
(1) Current indication.
(2) Voltage indication
(3) Fine adjustment of current
(4) Coarse adjustment of current.
