Mastech MS2302 User Manual

Users’ Guide for Earth Ground Resistance Tester
Operation Instructions
4.3 Measurement of the resistance by Tri-pole method
Potential Drop Method is used by the meter for the measurement of the earth resistance. Particularly, RX, the earth
resistance is figured out by first allowing I, the rated current, to flow between E, the object measured (the earth rods) and
C, the current pole, then measuring V, the potential difference between E and P, the voltage pole.

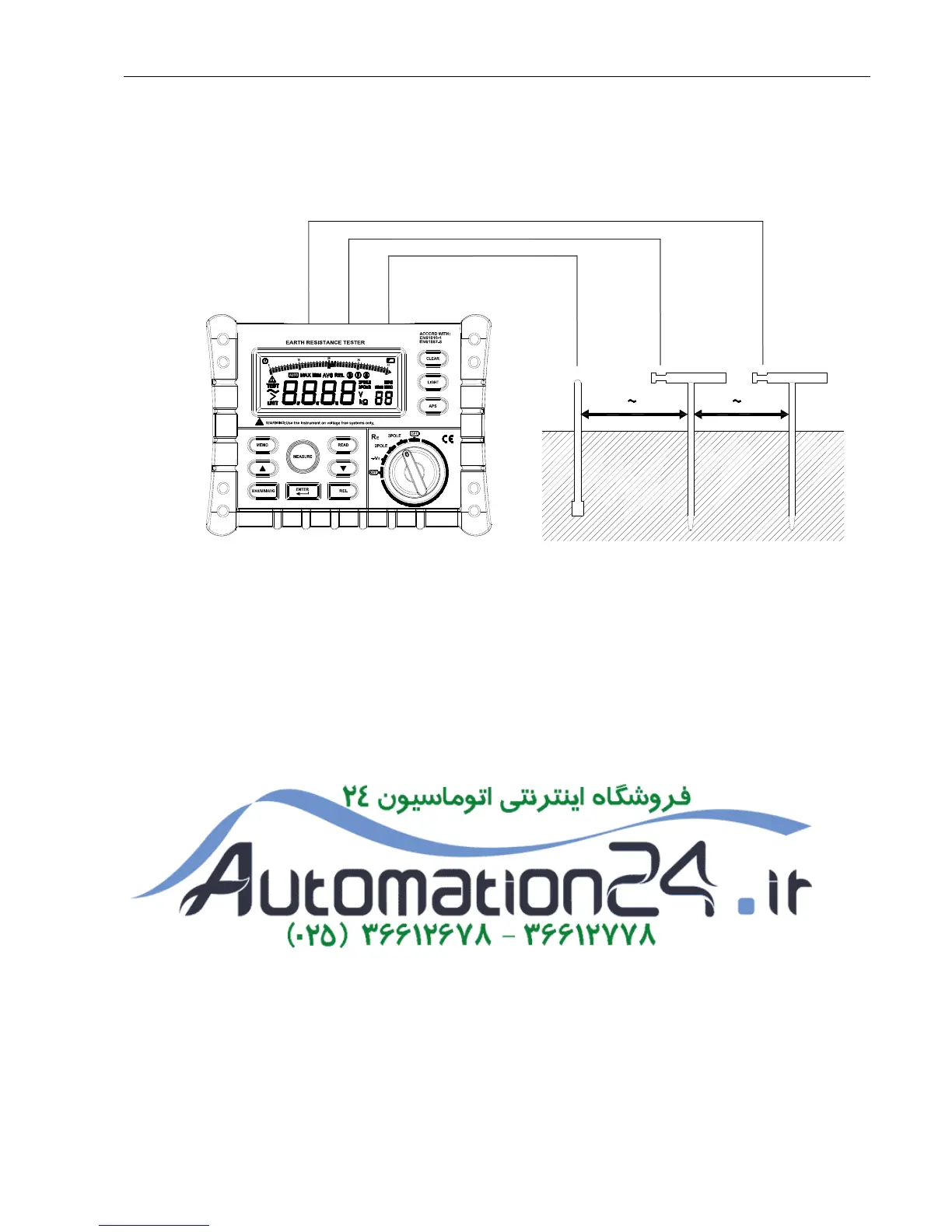

（1）Connect the test leads to the meter as follows
C
P
E
E
P
C
5 10m 5 10m
-15-
