In view of the fact that the requirements of audio professionals are in-
creasingly greater, we would like to thank you for choosing a MASTER
AUDIO product. At Amate Audio S.L., we have incorporated the highest
technology into our products with the conviction that what you have
purchased will give you an optimum performance and operation, how-
ever adverse the working conditions to which you may submit it.
In order to achieve the best performance and correct operation, it is
important that you read the instruction manual carefully before making
any connections.
In addition, we recommend that you read the Warranty Certificate en-
closed with this Manual in case you may observe any anomaly prior to or
immediately after start up, and how to proceed on each case.
INDEX
1. GENERAL FEATURES
2. FRONT PANEL FEATURES
3. INTERNAL FRONT PANEL FEATURES
4. REAR PANEL FEATURES
5. CONNECTION TO THE MAINS
6. CONNECTION OF THE LOUDSPEAKERS
7 WARNINGS
8. PRE-AMP CONNECTION
9. OPERATION MODE
10. COOLING
11. START-UP AND OPERATION
12. CLIP-LIMITER CIRCUIT
13. ADJUSTAMENT LIMITER
14. PROTECTIONS
15. TECHNICAL FEATURES
ENCLOSED DOCUMENT: CERTIFICATE OF WARRANTY
Our amplifiers are modular in design. The metal chassis is very rigid
and the interior design provides easy access to the electronic circuits.
Fully independent safety circuits protect the amplifier in the event of a
short circuit of the loudspeaker output, abnormal increases in temper-
ature and/or excessive amplifier consumption.
The HD Series amplifiers offer high dynamic performance with moder-
ate average energy consumption, as well as good damping factor, which
results in clean response to transients and high quality playback.
The power modules are integrated in a tunnel-shaped own developed
heat sink, which combines high dissipation power with an excellent
thermal inertia, thanks to the high extraction effectiveness of the in-
corporated fans.

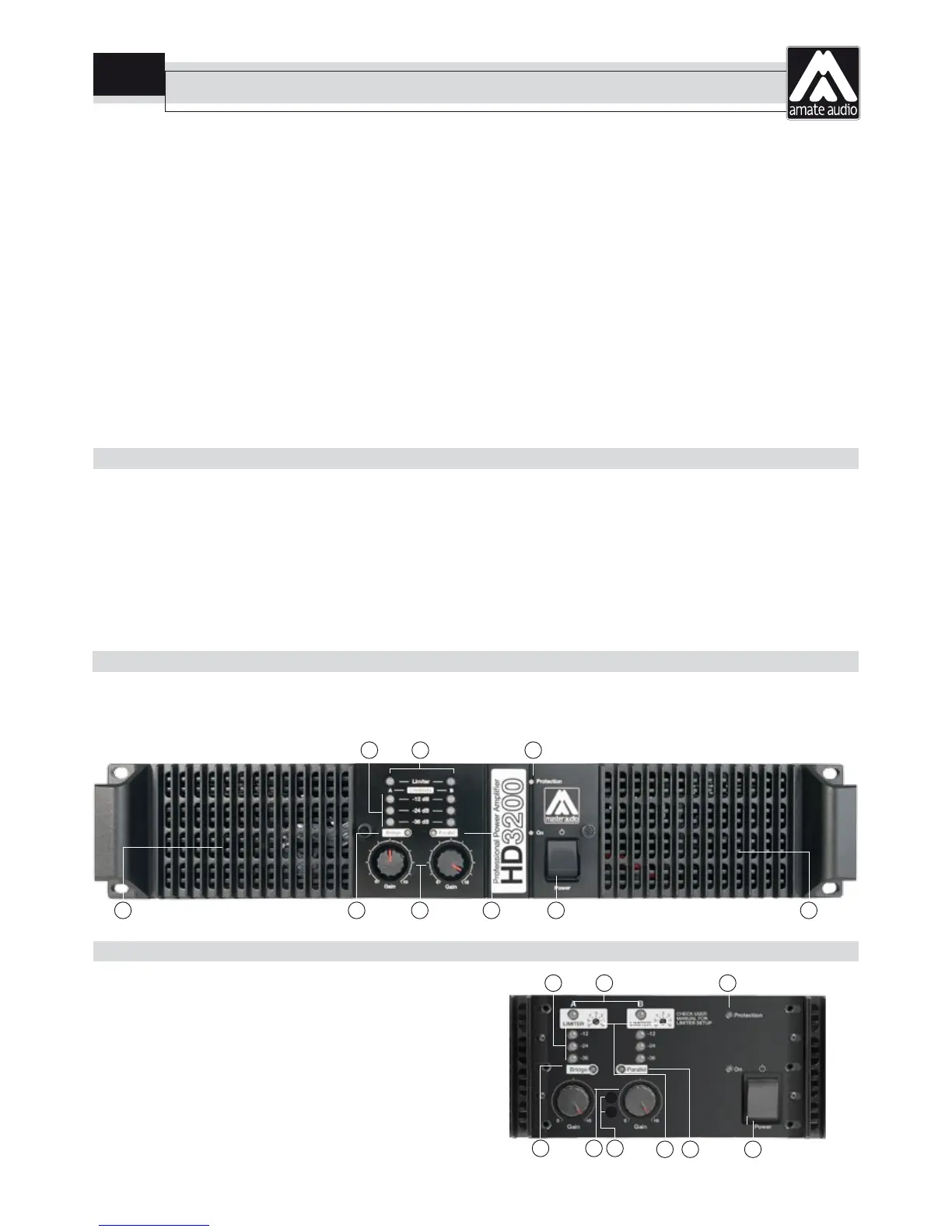

2. Front panel features
- On-Off switch (1) Led ON.
- Volume potentiometers (Gain) (2)
- Cooling outs (8)
8 6 2 7 1 8
3 4 5
- Output Signal indicators (-36dB, -24dB, -12dB) (3).
- Independent Indicators of Peak Limiter (4), and Protection (5)
1. General features
- Bridge mode (6) and Parallel mode (7) indicators
3. Internal view ( Front panel out )
- On-Off switch (1) Led ON.
- Volume potentiometers (Gain) (2)
- Limiter Adjust (8)
- Internal adjust (do not remove label) (9)
- Output Signal indicators (-36dB, -24dB, -12dB) (3).
- Independent Indicators of Peak Limiter (4), and Protection (5)
- Bridge mode (6) and Parallel mode (7) indicators
3 4 5
6 2
7 18
9
