Master Audio
Joker Series (Passive). Version 1.4 Jan14 6
2.2.4. Bi-Amplified configuration with Subwoofer
A wire with the maximum available section (4mm
2
minimum) should link the low
frequencies output channel of the amplifier to one of the subwoofers. Two subwoofers
can be also connected by bridge one to another, as long as the polarity is strictly
respected.
Connect the other output of the amplifier to the Full Range cabinets.
It is also possible to use only one amplifier for the low reinforcement, connecting each
one of the subwoofers to the two outputs of the amplifier and consequently,
connecting the Full Range cabinets to a second amplifier.

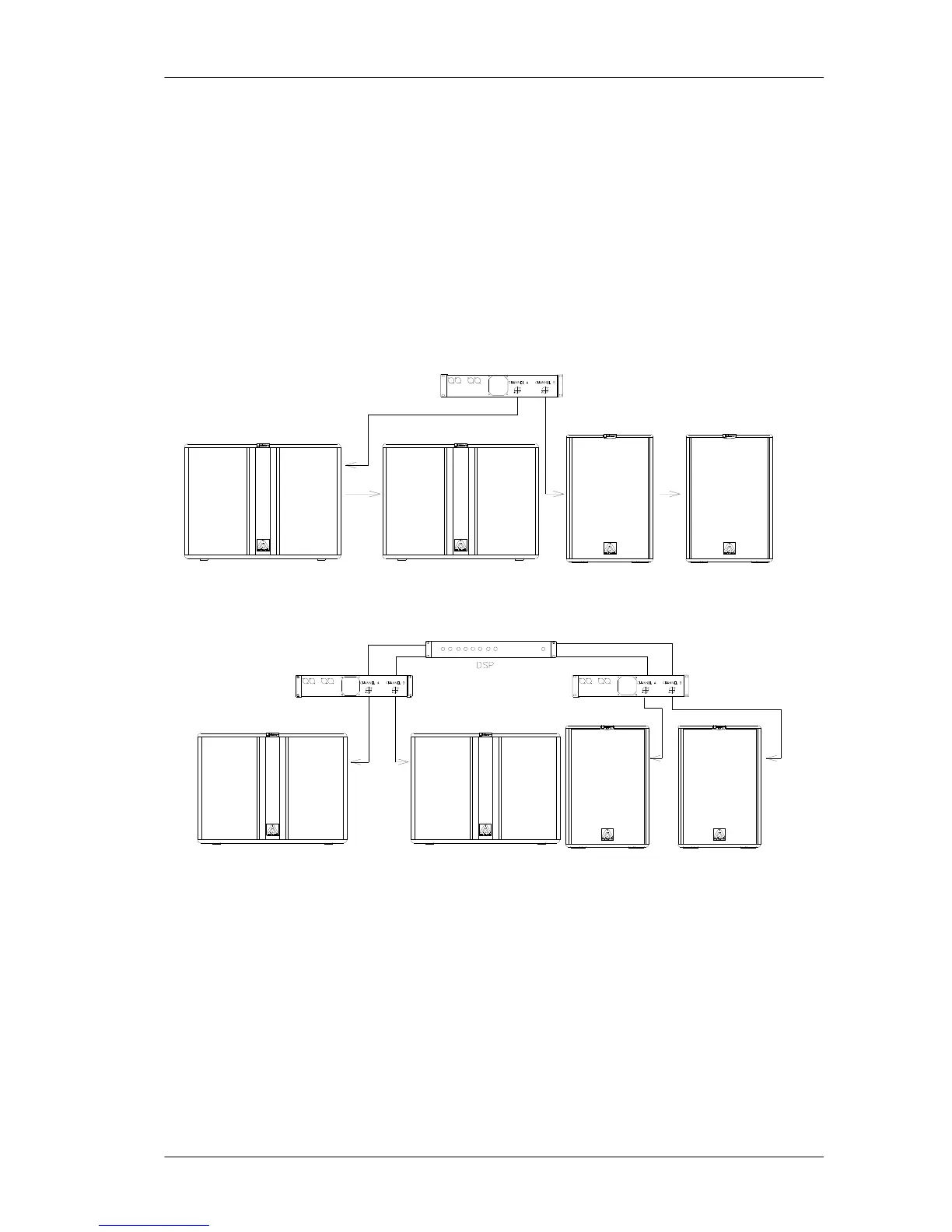

Fig.5. Bi-amplified with subwoofer configuration (option 1)
Fig.6. Bi-amplified with subwoofer configuration (option 2)
WARNING!!!!: In order to allow a bridge connection between cabinets, each one of
them has been provided with two Speakon connectors that allow the Input / Output
function indistinctly. Terminal Pins +1/-1 must be always used, disregarding the +2/-2
which are not internally connected.
