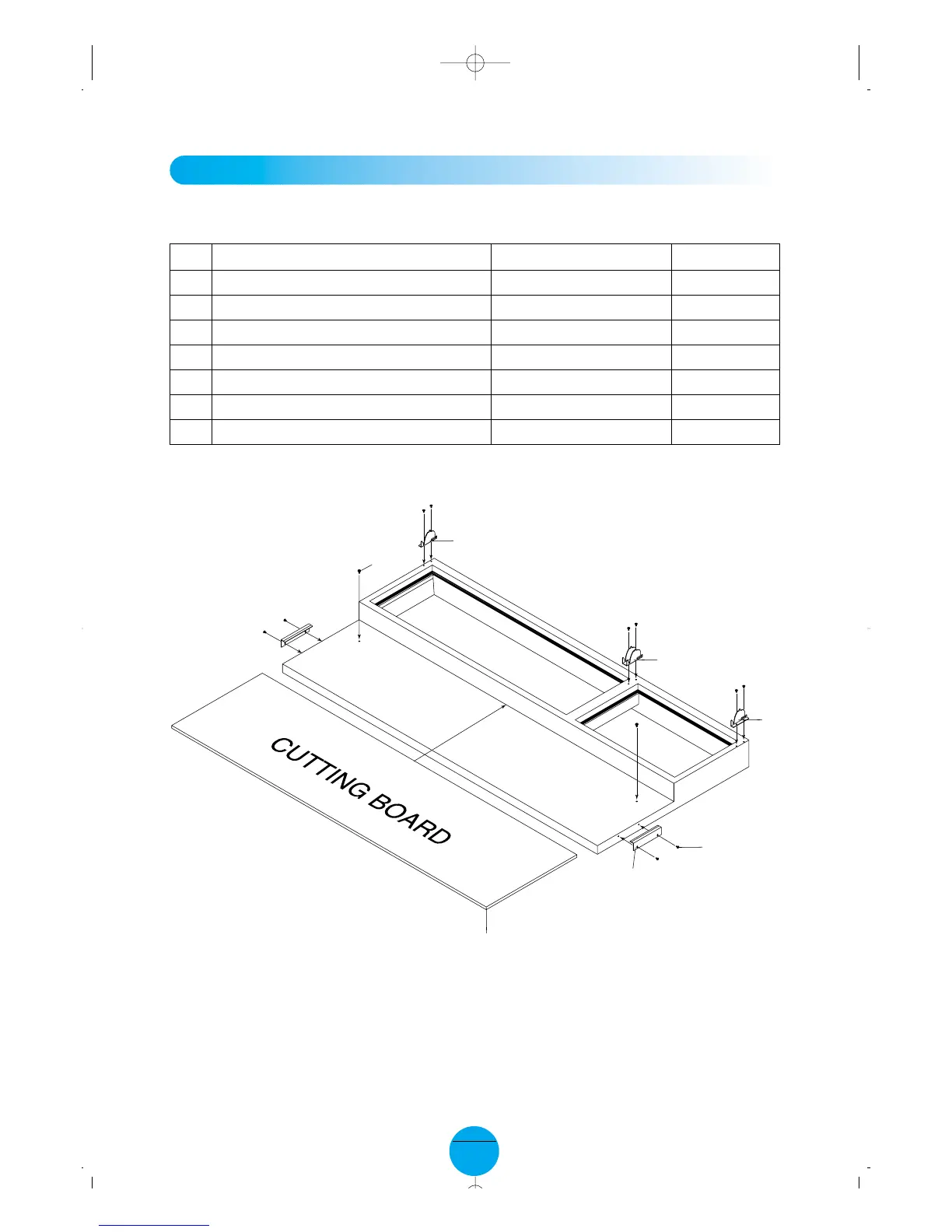

Master Bilt PPT-67 - CUTTING BOARD & BRACKETS Installation Schematic Diagram

3
Master bilt
Part List
* Assemble CUTTING BOARD and BRACKETS as above drawing.
NO PART NAME SPECIFICATION QUANTITIES
1 CUTTING BOARD 67’* 19 5/16’* 1/2’ 1
2 CUTTING BOARD BRACKET SUS304 2
3 LID BRACKET LEFT SUS304 1
4 LID BRACKET CENTER SUS304 1
5 LID BRACKET RIGHT SUS304 1
6 CUTTING BOARD KEY SCREW M5*L6.5 2
7 SCREW M4*10 10
6
3
4
5
7
2
1
CUTTING BOARD & BRACKETS Installation Schematic Diagram
PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지3
