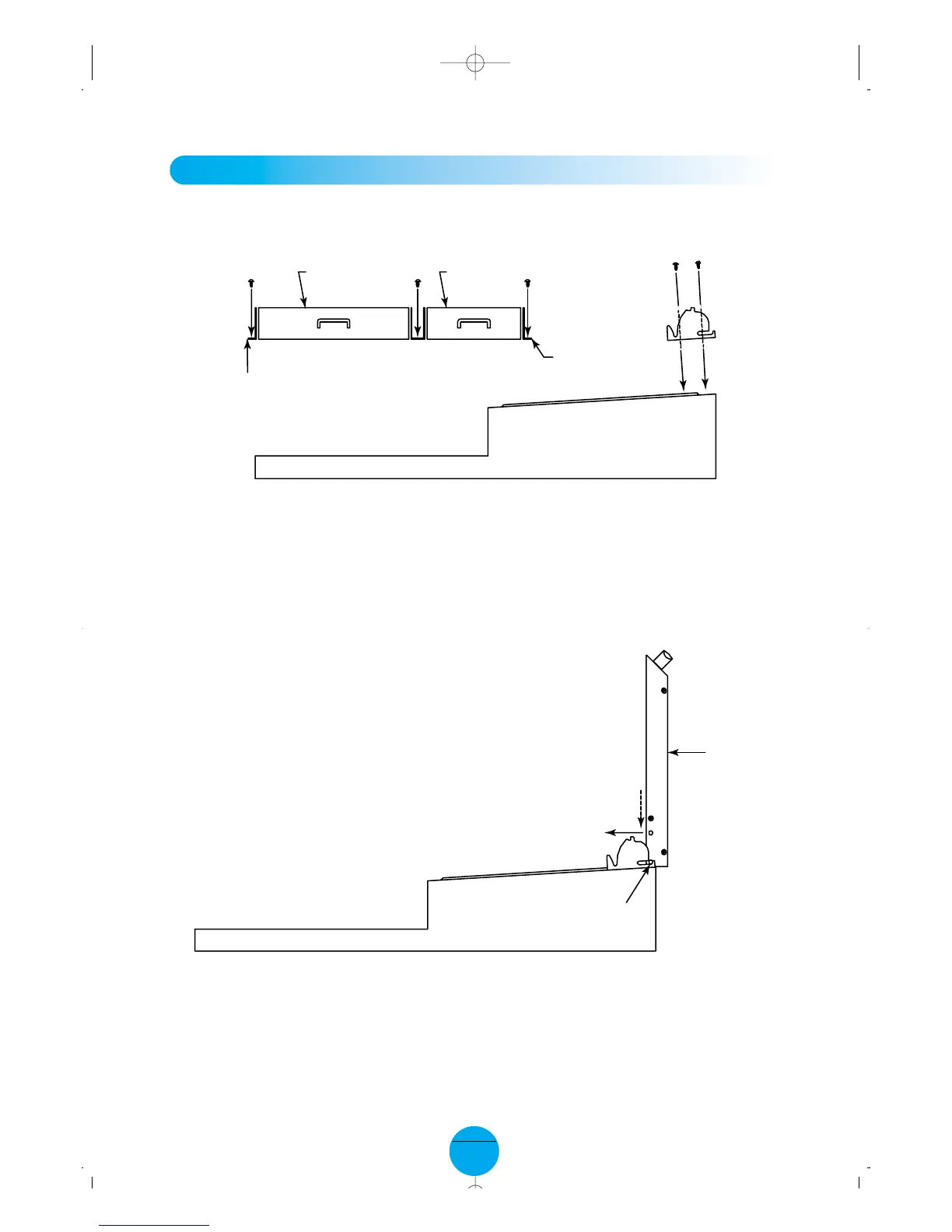

2) Assemble HOOD LID BRACKET like drawing below.
3) Insert HOOD LID SHAFT like drawing below.
* Insert shaft and pull hood lid with parallel like arrow direction.
INSTALLATION OF HOOD LID
LEFT LID
RIGHT LID
FRONT VIEW OF THE UNIT
There are 3 kinds of bracket. They are for left, middle, right position.
LEFT BRACKET’S
BENDING DIRECTION
IS LEFT.
RIGHT BRACKET’S
BENDING DIRECTION
IS RIGHT.
HOOD
LID
SHAFT
