11

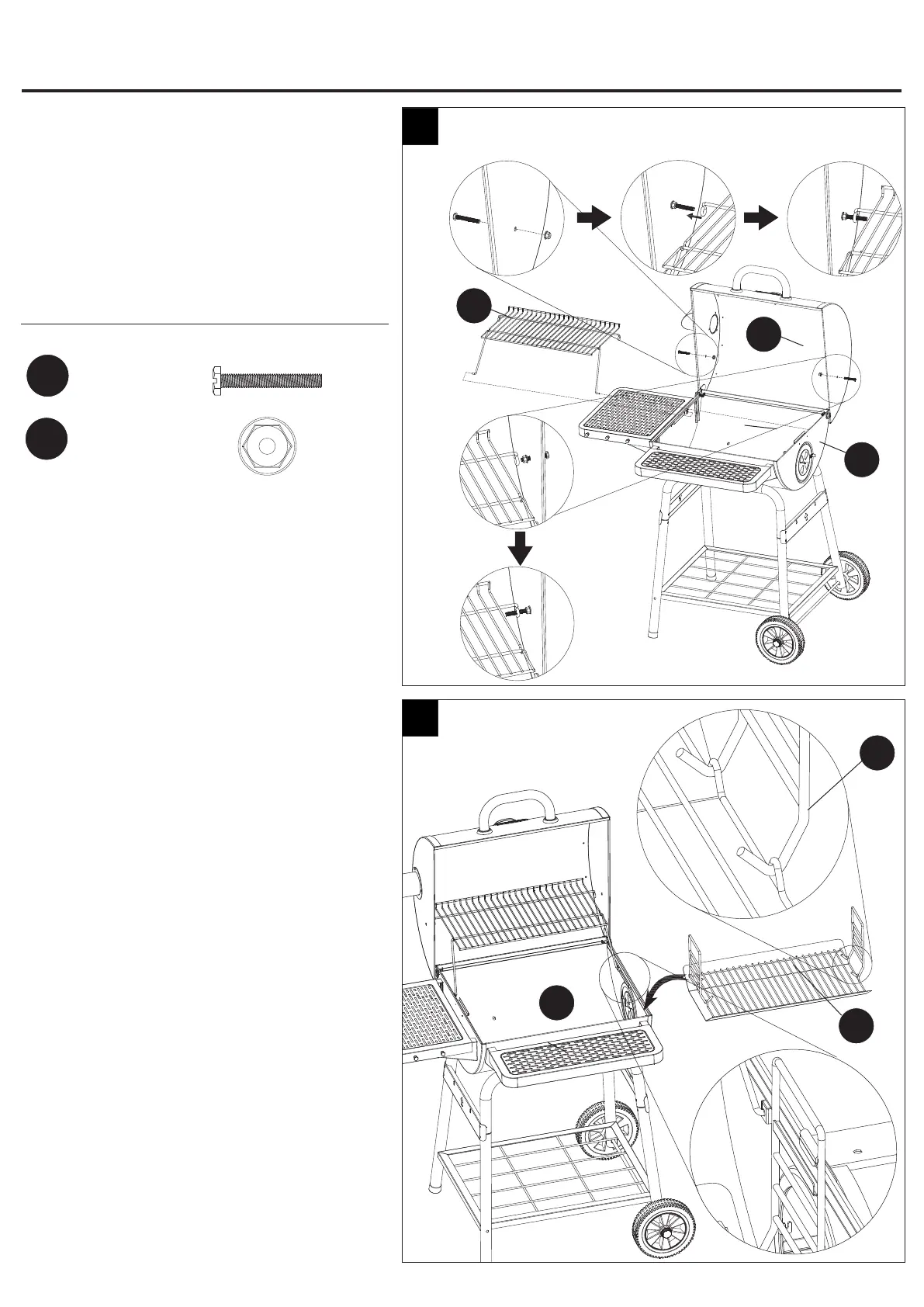

Step 11: Attach Warming Rack
Attach the warming rack (E) onto the lid (D)
and bottom bowl (I) with two M6x45 bolts
(CC) and two M6 nuts (FF).
Note: Please attach each corner of the
warming rack (E) in order shown in Fig.11.
Hardware Used
11
ASSEMBLY INSTRUCTIONS
First
Second
Third
Fourth
E
D
I
I
M6x45
Bolt
CC
x 2
FF
M6
Nut
x 2
Step 12: Place Charcoal Pan and
Charcoal Pan Handle
Place the charcoal pan (G) and charcoal
pan handle (J) into the bottom bowl (I).
Note: Hang the charcoal pan handle (J) on
either side support of the bottom bowl (I).
12
J
G
1 2 3
4
5
To Next Page
