Master Forge CBC23023L User Manual

10
ASSEMBLY INSTRUCTIONS
M6x12
Bolt
AA
x 4

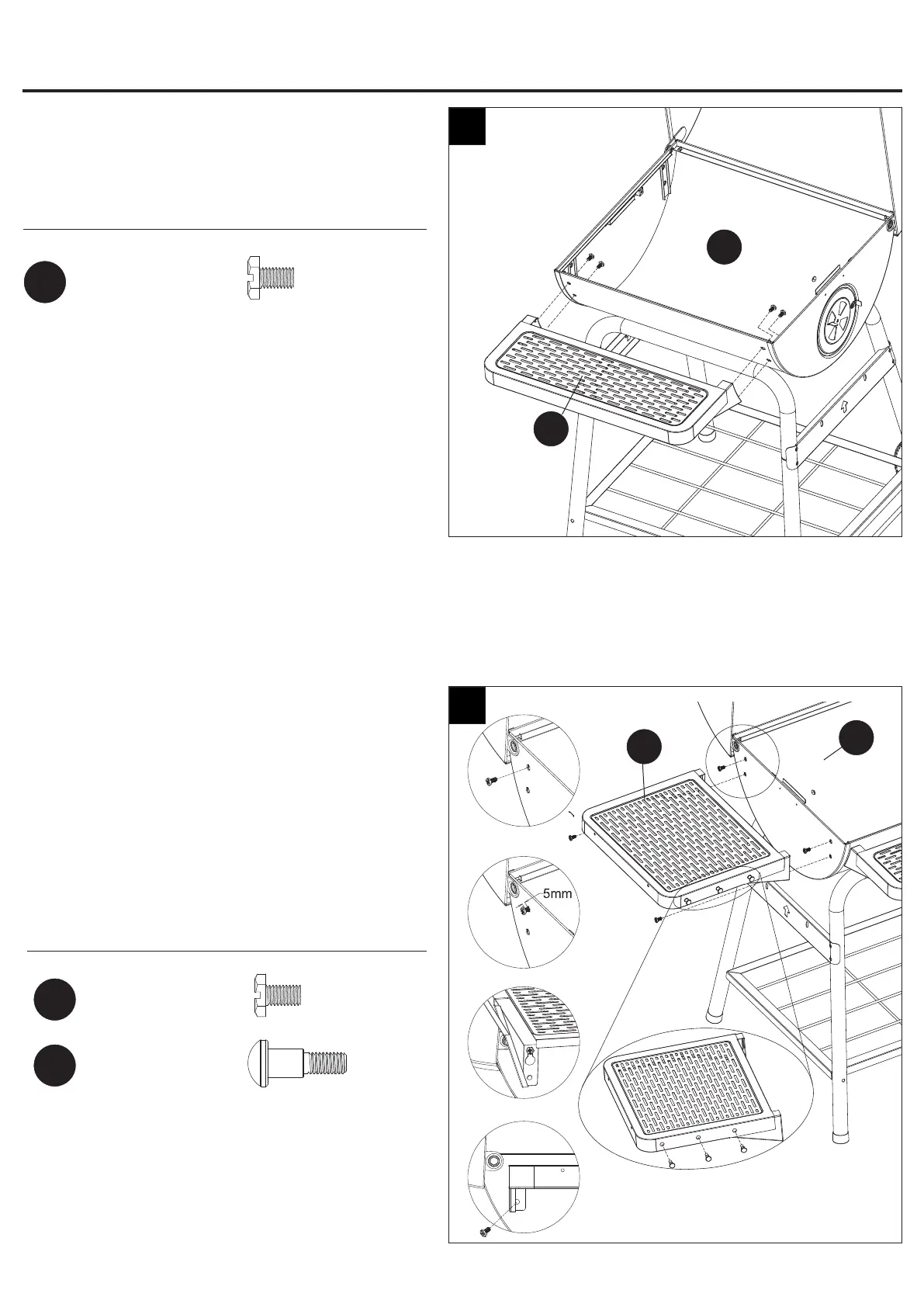

Step 10: Attach Left Side Shelf
Attach the left side shelf (H) to the bottom bowl (I)
with four M6x12 bolts (AA).
Attach three M6 screws (II) onto the left side shelf
(H).
Note: Insert two M6x12 bolts (AA) into the upper
holes with leaving 5 mm threads exposed.
Hardware Used
M6
Screw
II
x 3
First
Second
Third
Fourth
I
H
10
Step 9: Attach Front Shelf
Attach the front shelf (L) to the bottom bowl (I)
with four M6x12 bolts (AA).
Hardware Used
9
M6x12
Bolt
AA
x 4
I
L
