Master Forge CBC23023L User Manual

9

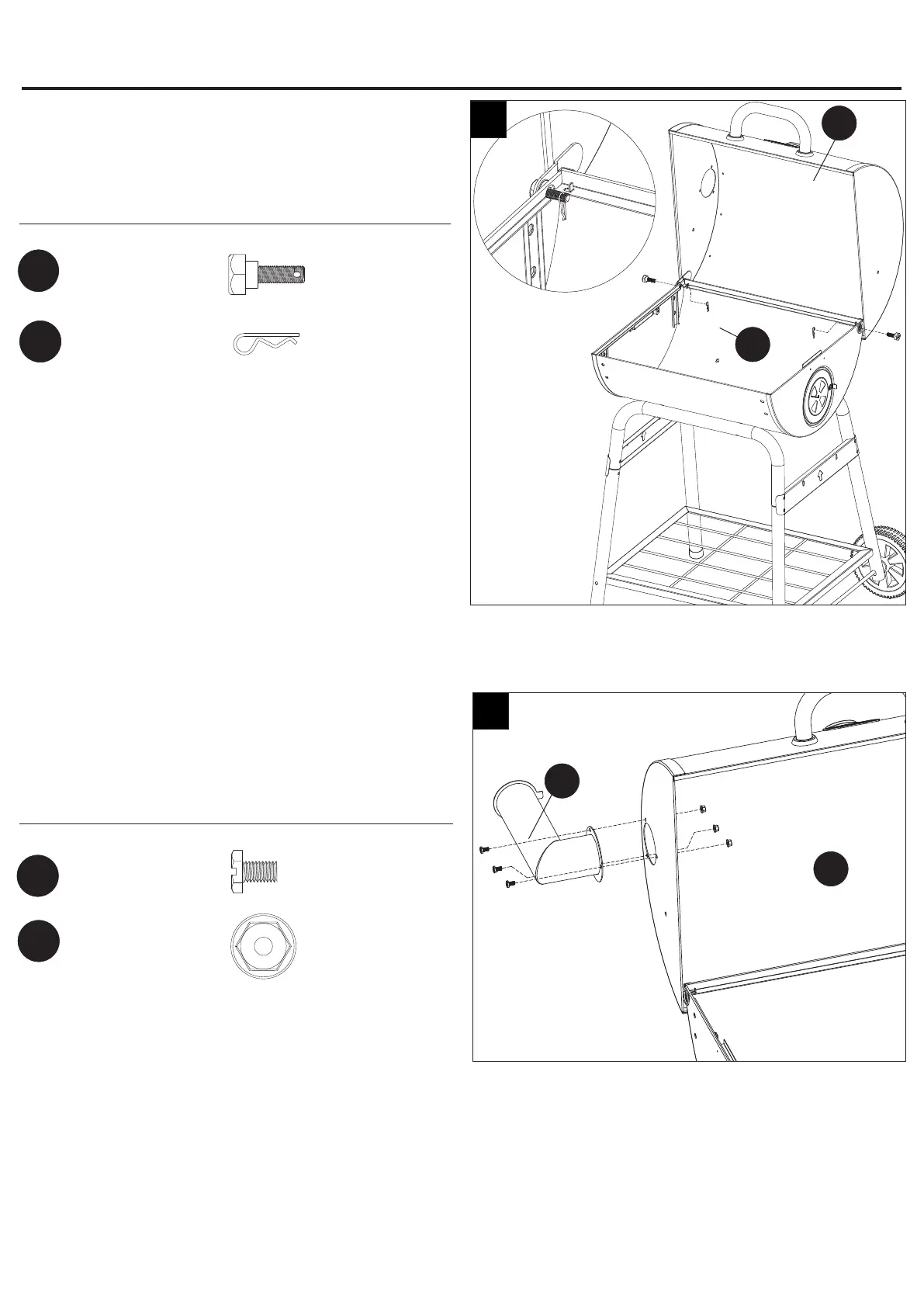

Step 7: Attach Lid
Attach lid (D) onto the bottom bowl (I) with two M8
screws (JJ) and two Ø1.4x30 cotter pins (HH).
Hardware Used
7
ASSEMBLY INSTRUCTIONS
Ø1.4x30
Cotter Pin
HH
x 2
M8
Screw
x 2
D
I
JJ
Step 8: Attach Smoke Stack
Attach smoke stack (C) onto the lid (D) with three
M6x12 bolts (AA) and three M6 nuts (FF).
Hardware Used
8
M6x12
Bolt
AA
x 3
M6
Nut
x 3
C
D
FF

Master Forge CBC23023L Specifications

General

Brand	Master Forge
Model	CBC23023L
Category	Grill
Language	English
