Master Forge CBC23023L User Manual

8

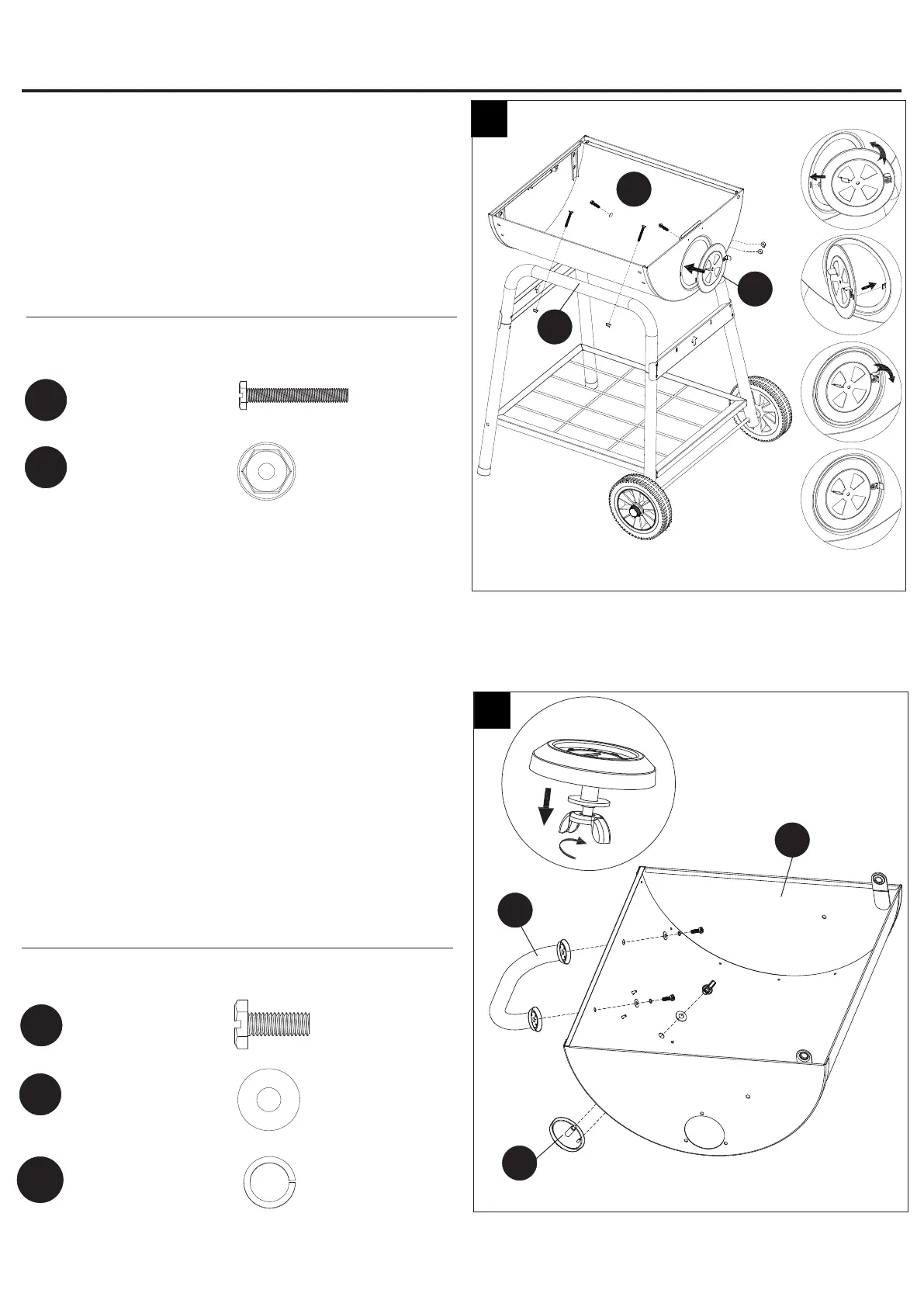

ASSEMBLY INSTRUCTIONS
Step 5: Attach Bottom Bowl and Damper
Align the holes in the bottom bowl (I), upper cart
frame (N). Then attach the bottom bowl (I) onto
upper cart frame (N) with four M6x45 bolts (CC) and
four M6 nuts (FF).
Attach the damper (V) show in Fig.5.
Hardware Used
M6x45
Bolt
CC
x 4
FF
5
I
N
V
M6
Nut
x 4
First
Second
Third
Fourth
Step 6: Attach Lid Handle and Temperature Gauge
Remove the wing nut and washer pre-assembled
on the temperature gauge (A). Then attach the
temperature gauge (A) onto the lid (D) with the wing
nut and washer.
Attach lid handle (B) onto the lid (D) with two M6x20
bolts (BB) and two Ø16x6.2 washers (DD) and two
Ø6 lock washers (GG).
Hardware Used
M6x20
Bolt
BB
x 2
6
Ø16x6.2
Washer
DD
x 2
Ø6
Lock Washer
GG
x 2
D
B
A
