Master Forge CBC23023L User Manual

7
First

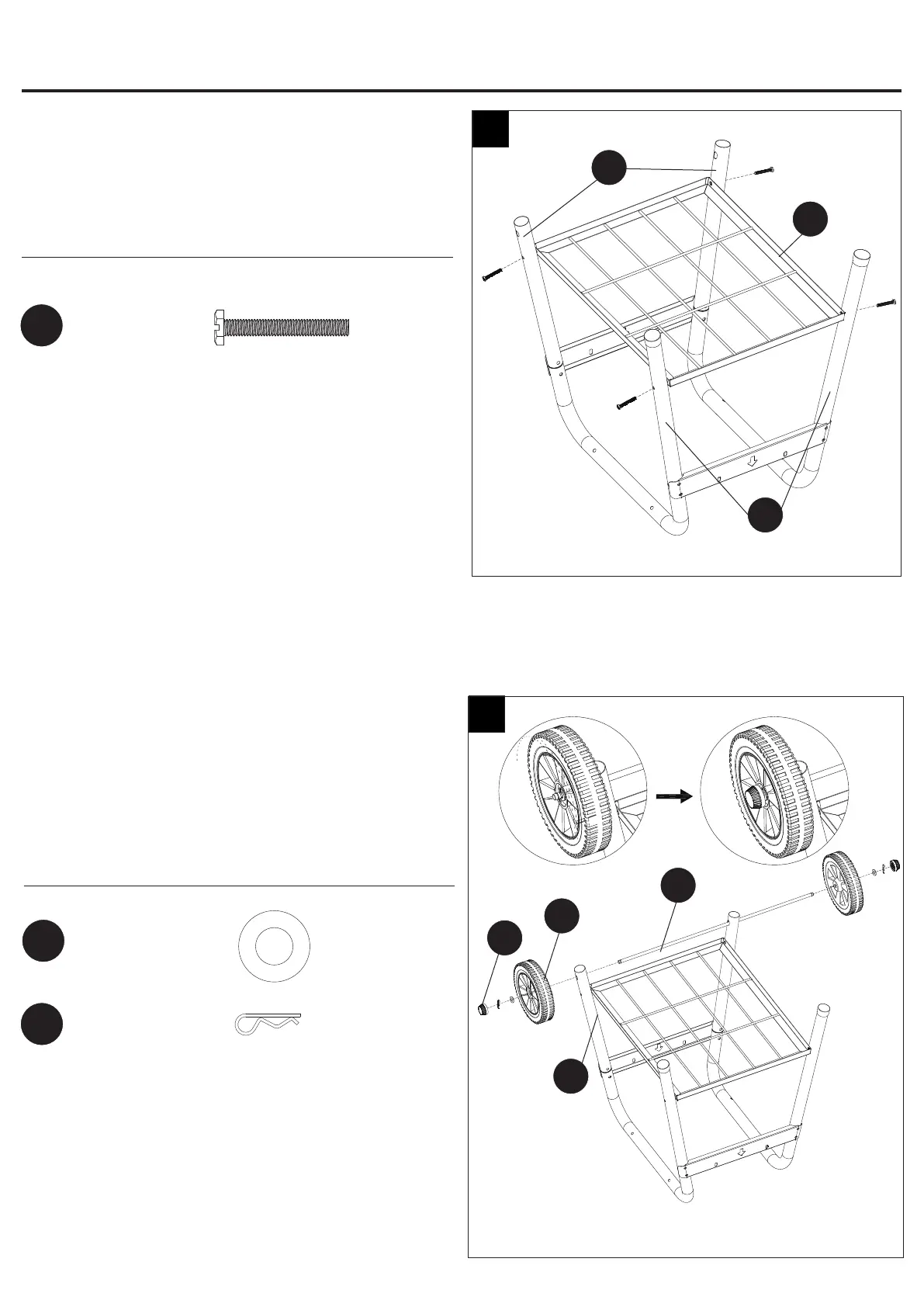

ASSEMBLY INSTRUCTIONS
Step 3: Attach Bottom Mesh
Align the holes in the left legs (O), right legs (U) and
bottom mesh (Q). Then insert four M6x45 bolts (CC)
into the holes shown in Fig.3.
Hardware Used
M6x45
Bolt
CC
x 4
3
Q
U
O
Step 4: Attach Axle, Wheels and Wheel Caps
Insert the axle (S) through the right legs (U).
Attach wheels (T) and wheel caps (R) onto the
axle (S) with two Ø20x10.5 washers (EE) and two
Ø1.4x30 cotter pins (HH).
Hardware Used
4
Ø20x10.5
Washer
EE
x 2
Ø1.4x30
Cotter Pin
HH
x 2
R
U
T
S
