ASSEMBLY INSTRUCTIONS
Hardware Used
x 2
FF

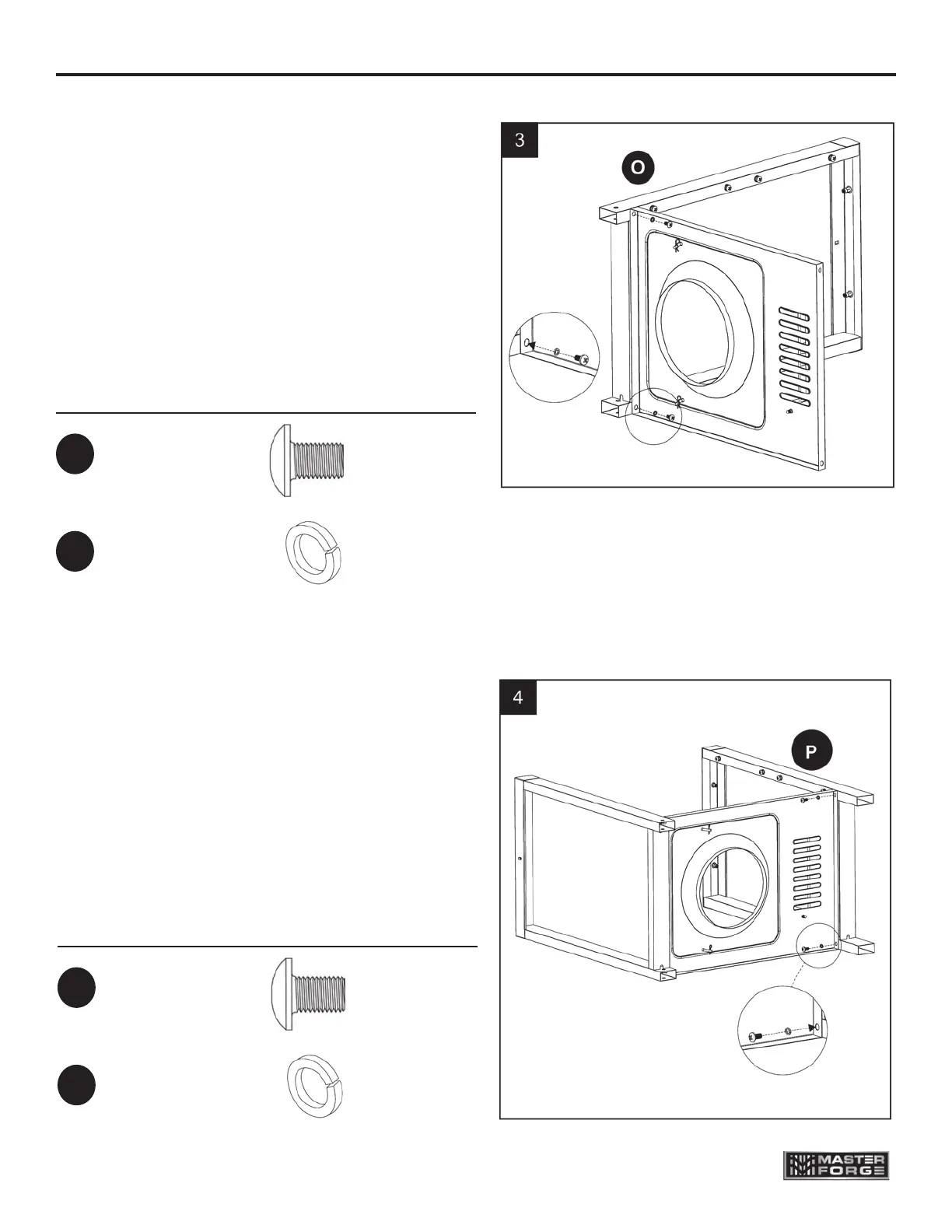

3. Install left leg assembly
Install left leg assembly (O) into bottom
panel (S) with M6 x 12 screws (FF) and
M6 lock washers (GG).
GG
M6 x 12
Screw
M6
Lock Washer
x 2
Hardware Used
FF
4. Install right leg assembly
Install right leg assembly (P) into
bottom panel (S) with M6 x 12
screws (FF) and M6 lock washers
(GG).
GG
M6 x 12
Screw
M6
Lock Washer
x 2
x 2
