Upper Part Assembly

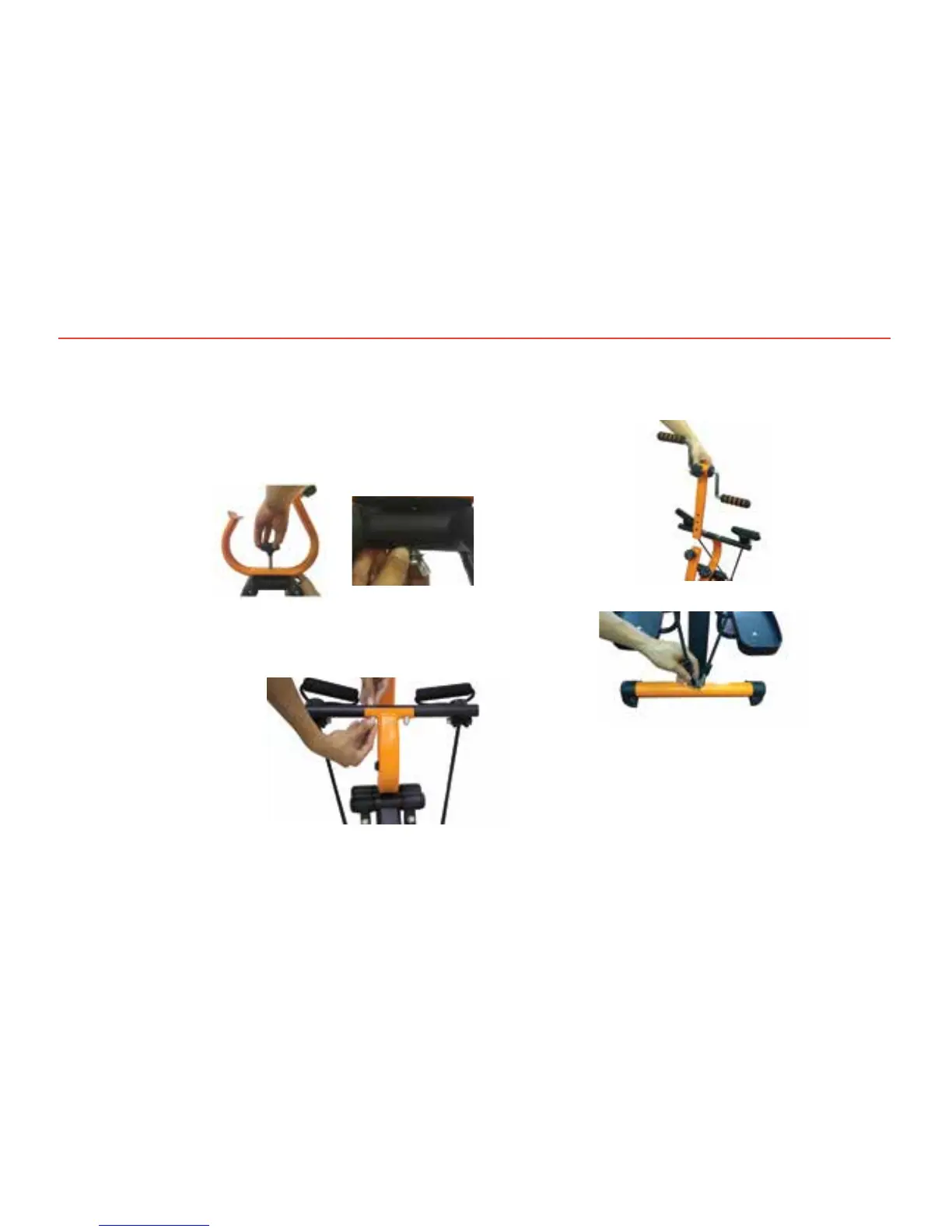

5. Once the lower part of the Master Gym® is assembled, add the
handlebar and roller strip holding tube (6) by using the frame knob (10)
and the lock washer (22), fix it properly with the wing nut (7).
6. Place the roller strip and stretching rubber bands (8) on the
handlebar and roller strip holding tube (6), afix them properly with the
bolts (15) and nuts (44), use the open end wrench.
Note: Make sure the rollers
where the rubber band pass
through are facing towards the
inner side of the roller strip
holding tube curve
ASSEMBLY INSTRUCTIONS
7. Insert the handlebar height adjustment tube (9), into the handlebar
and roller strip holding tube (6) and hold with the knob and select the
desired height.
8. Finally hook the stretching rubber bands to the loop of the tube (2A).
9. In case you wish to remove the upper part, reverse the process.
