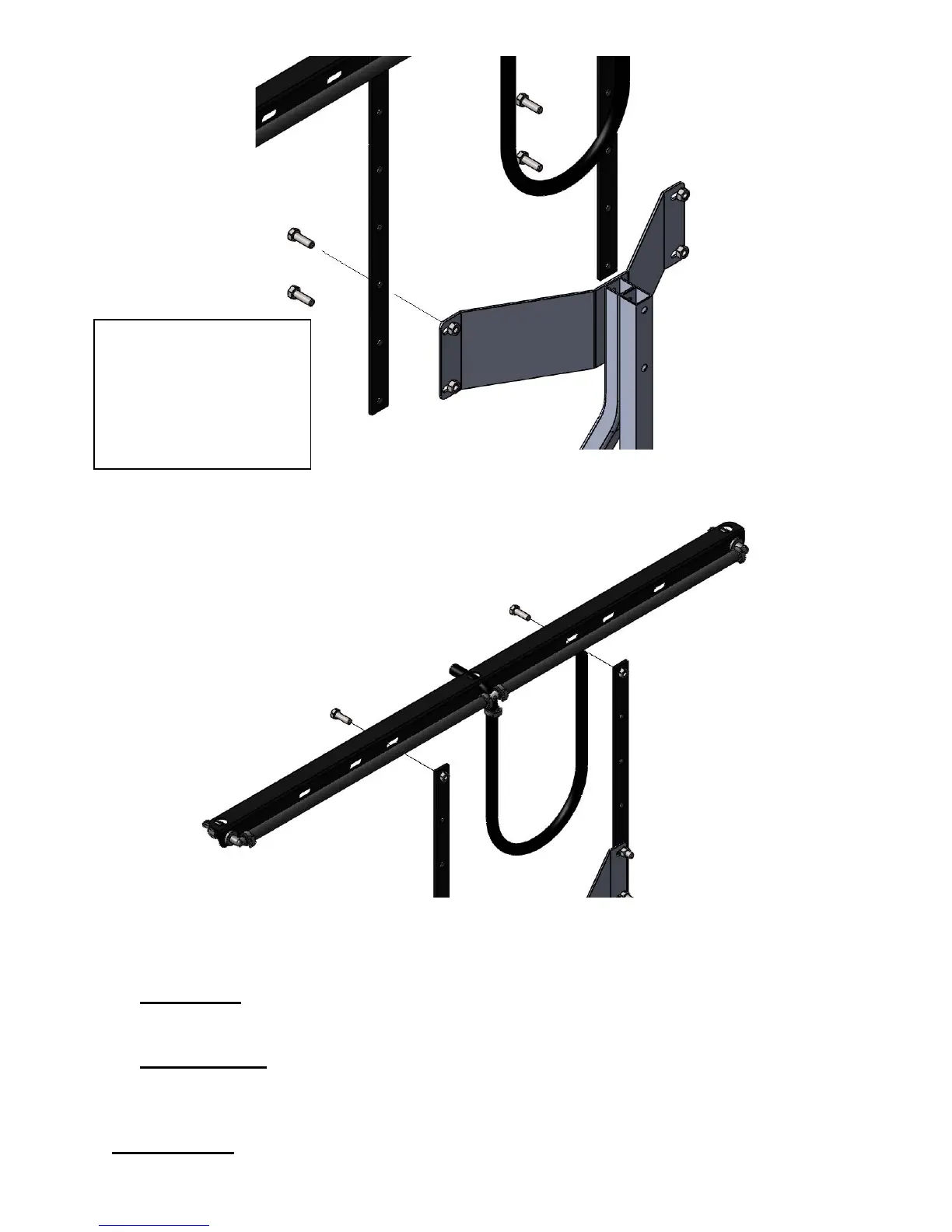

2.) Attach the spray boom (PN 34-140052) to the upright spray boom brackets using two 5/16-18 x 1
bolts (PN 33-100116) and 5/16 nuts (PN 33-100113).
3.) Thread on the boom hose to the manifold valve and tighten securely.
4.) Optimum boom height is 14 to 15 inches above area to be sprayed. Use the location holes in the
upright spray boom brackets as adjustments to obtain the optimum spray height.
Spray Wand
1.) Attach sprayer wand hose (33-103153-180) to sprayer manifold with hose clamp (SHC-F).
Wiring Harness
1.) Operating power is obtained directly from a 12 VDC source. Be sure to connect the red to the
positive (+) source and attach the black to the negative (-) source.
IMPORTANT: Before spraying chemicals, fill the tank half full of plain water to allow familiarization
with the sprayer and to prevent waste of expensive chemicals.
Adjust bolted
holes in order to
acquire desired
boom height
