Master Water Conditioning MBA Series - Typical Piping Layout; Electrical Requirements

6
Well Tank
Untreated
water from well
NOTE: All Master Water Conditioners must be
installed after the well tank or water meter if its
public water supply.
Master Water
Conditioner
Air Gap Drain
Treated water
Untreated to outside
224 Shoemaker Rd.
Pottstown, PA 19464

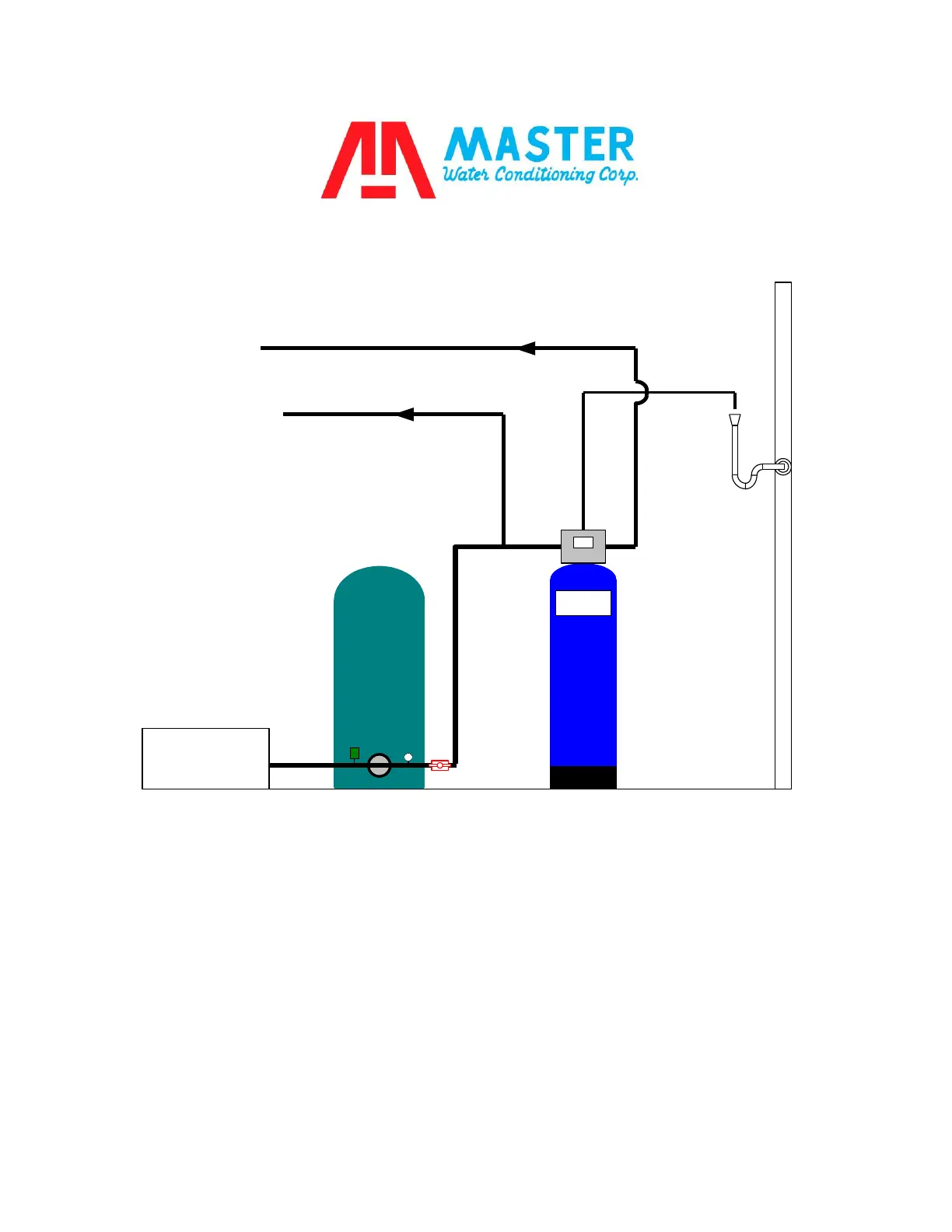

Typical Piping Layout
Electrical Requirements:
Always follow all local electrical codes when installing our water
treatment equipment.
1. Provide an 120v/60Hz properly grounded dedicated electrical
Outlet. (It’s very important that the polarity be correct)
Avoid using outlets that are switch controlled.
2. Maximum amperage required is 5 amps.
