• Instruction manual.
Note: brackets for bottom hung (ref. C) and top hung (ref. D) windows have to be
requested apart.
5. Technical data
MODEL
CLOUD
SYNCRO 230V
CLOUD
SYNCRO 24V
Pressure force 300 N
Traction force 300 N
Track runs (can be selected at any time) 100, 200, 400 mm
Voltage 230VAC 50 Hz 24VDC
Current consumption at nominal charge 0,115 A 0,950 A
Charge absorbed at nominal load ~ 25 W
No load speed 8,5 mm/s
No load duration (400 mm) 48 s
Double electrical insulation YES
Type of service S
2
of 3 min
Working temperature - 5 + 65 ºC
Protection index IP30
Adjustment of socket at casing Autopositioning
Connection of two or more devices in parallel YES
Limit switch stop at opening Electronic
Limit switch stop at closure At absorption of charge
Dimensions 386,5x59x37
Weight 1,180 Kg 1,150 Kg
Any information reported in this table is not binding and may be susceptible to variations without notice

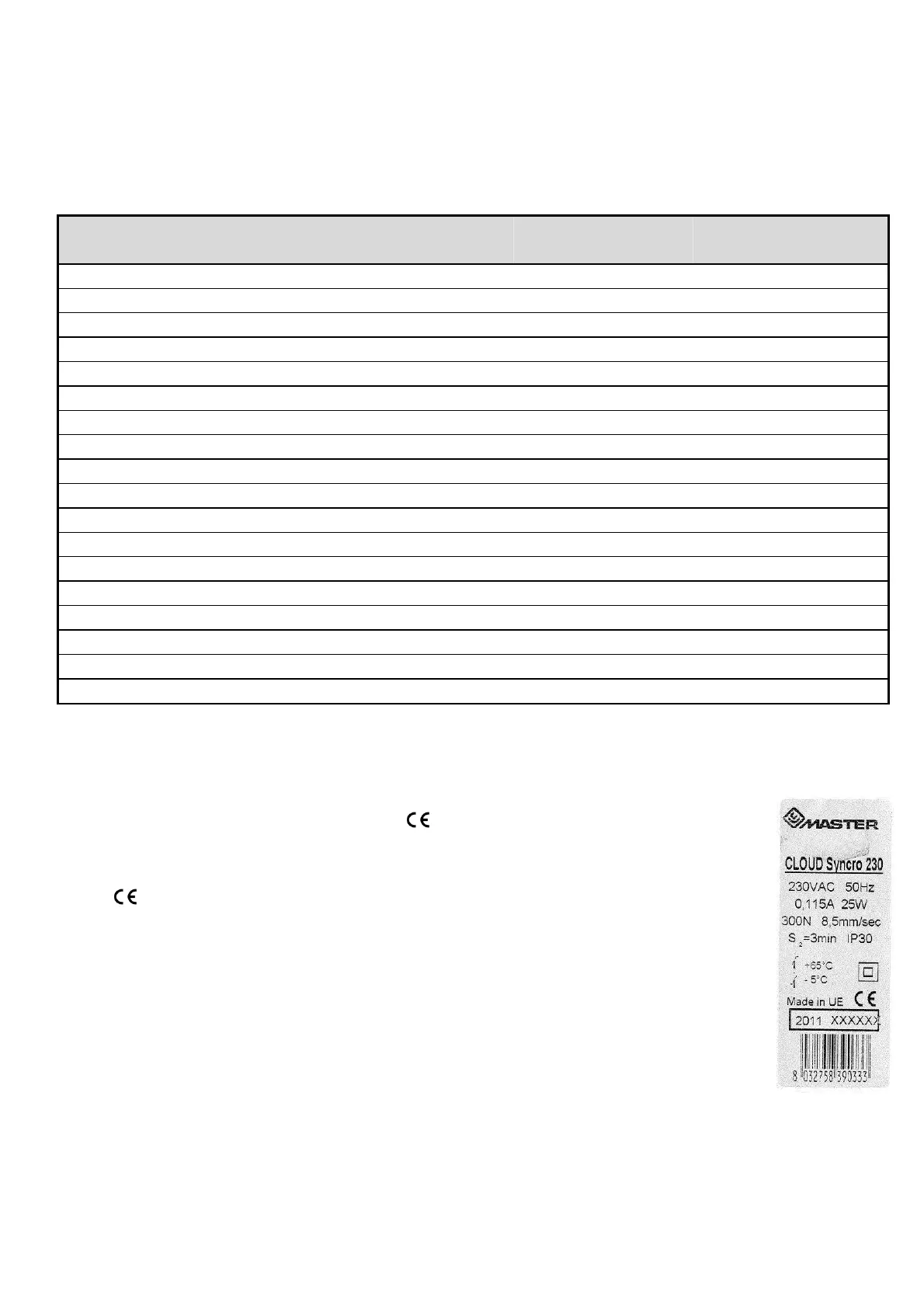

6. Label data and markings
The actuators have been assigned marking and can be sold onto the
market and used throughout European Union territory without further
requirement.
The marking on the product, packaging and user warnings indicate
“presumed conformity to directives” issued by the EEC.
The manufacturer holds technical archives with documentation to prove
that products have been examined to assess conformity to directives.
Rating plate data is located on an adhesive polyethylene label on the
outside of the container, printed in blue on a grey background. All data
conform to stipulations required by community standards in force.
7. Electricity supply
The CLOUD SYNCRO actuator is commercially available in two versions identified
according to electrical specifications:
