Master Heat Gun HG-801D Series User Manual

6
HG-801D • • • •
HG-201D/T
HG-301D/T
HG-501D/T
HG-202D/T
• • • • • •
HG-302D/T
HG-502D/T
VT-751D
VT-752D
• • • • • •
30202
Solder
Preform
51309
Pinpoint
Model
Aachments
51543
Spreader
51544
7/8 Reducer
51542
Glass
Protector
A-160-HG
A-170-HG
Shrink Tube
Item No. Part No. Description
1 35153 Blower wheel
2 30071 Stand kit (D Models)
2 30072 Stand kit (T Models)
3 30073 Motor 120V
3 30074 Motor 220-240V
4 30075 Switch Bezel Kit (3 pos)
4 30076 Switch Bezel Kit (MC)
5 30077 Nozzle Shield Kit
6 30078 Grille Kit
7 30079 Cordset Kit 120V 15amp (-00)
7 30080 Cordset Kit 120V 20amp (-01)
7 30081 Cordset Kit 220V UL/CUL (-02)
8 30082 Element Kit, HG-801D (120V)
8 30083 Element Kit, HG-501D & T/VT-751D (120V)
8 30084 Element Kit, HG-502D / VT-752D (220V)
8 30085 Element Kit, HG-301D & T (120V)
8 30086 Element Kit, HG-302D (220V)
8 30087 Element Kit, HG-201D & T (120V)
8 30088 Element Kit, HG-202D & T (220V)
9 30089 Element Connector
9 30090 Element Connector 20 amp
10 30091 Handle Kit (D Models)
11 30092 VT- Knob Kit
12 30093 Circuit Board Kit VT-751D (120V)
12 30094 Circuit Board Kit VT-752D (220V)
13 30095 Housing Plastic (T Models)
14 30096 Grounding Kit (T Models)

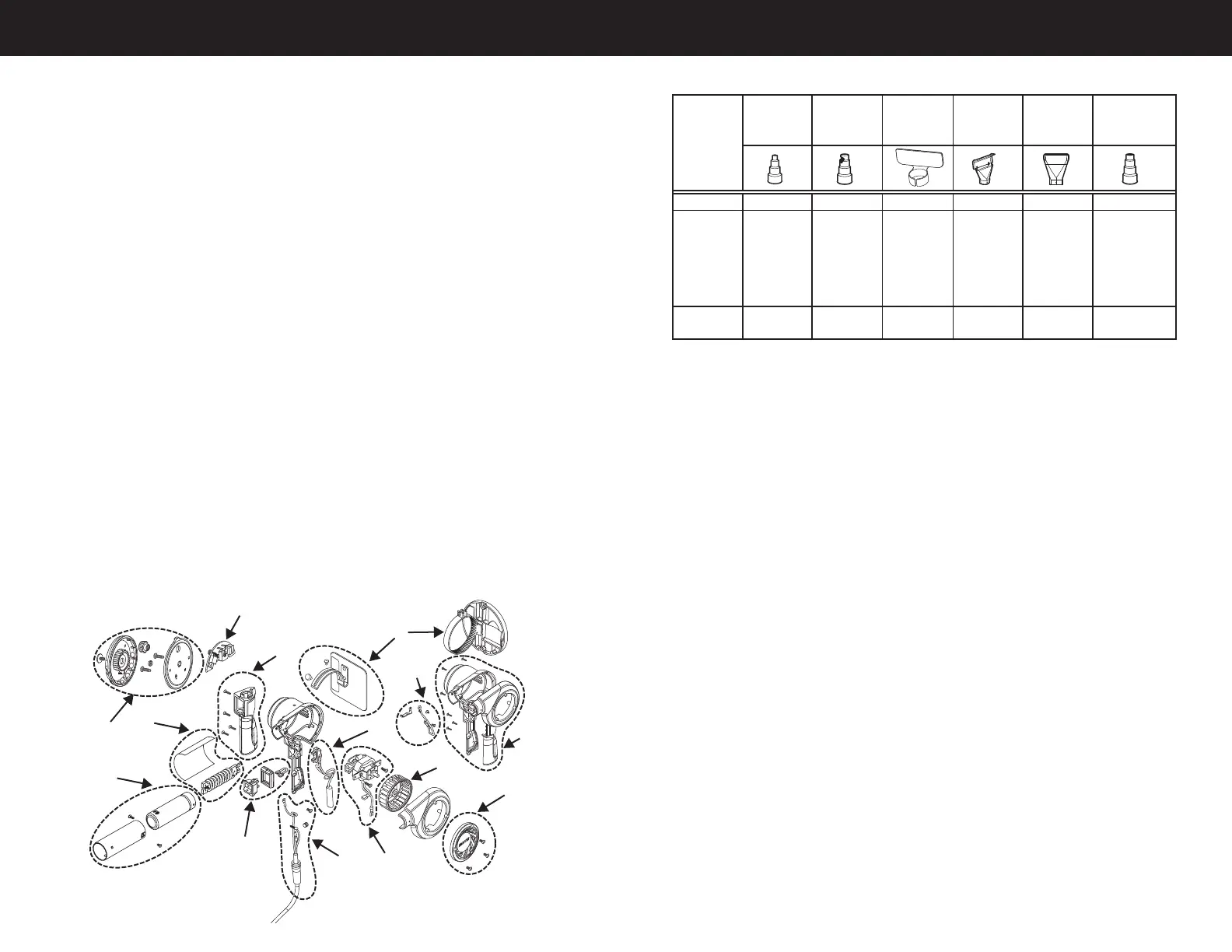

MASTER HEAT GUN
®
Replacement Parts (HG/VT Models)
Attachments
-CAUTION-
HIGH TEMPERATURE AT
NOZZLE. RUN ON ‘COLD’
BEFORE TURNING OFF.
-ADVERTENCIA-
ALTA TEMPERATURA EN LA
BOQUILLA. ANTES DE
APAGAR LA HERRAMIENTA.
A LA SORTIE.
DU BEC OPÉRER À ‘COLD’
AVANT DE FERMER
11
8
2
14
9
1
3
7
6
13
12
10
5
4
