© 2015, Pinnacle Products International, Inc. 12 +9)$LU&LUFXODWRU8VHU¶V0DQXDO
¶¶201,',5(&7,21$/)$10$&2'')
5HSODFHPHQW3DUWV
,WHP 'HVFULSWLRQ 3DUW1XPEHU
1 Front Guard 95-032-0170
2 Fan Barrel 95-001-0400
3 Power Knob 95-027-0130
4 Power Knob Holder 95-031-0325
5 Capacitor 95-004-0235
6 Power Cord 95-026-0255
7 Motor 95-030-0535
8 Motor Mount Assembly 95-030-0555
9 Motor Cooling Fan 95-030-0556
10 Fan Blade Assembly 95-003-0665
11 Rear Guard 95-032-0275
12 Front Leg 95-009-0600
13 Horizontal Adj. Knob 95-015-0150
14 Spacer 95-050-0200
15 Outer Ring Frame 95-024-0320
,WHP 'HVFULSWLRQ 3DUW1XPEHU
16 Vertical Adj. Knob 95-015-0150
17 Wall Mount 95-078-0200
18 Handle Pad 95-007-0100
19 Spacer 95-050-0200
20 Handle Arm 95-006-0300
21 Rear Leg 95-009-0610
22 Large Base Cap 95-024-0410
23 Large Base 95-024-0400
24 Foot Pad 95-023-0240
25 Wall Bracket - L 95-077-0100
26 Wall Bracket - R 95-077-0110
27 Small Base 95-024-0500
28 Small Base Cap 95-024-0510
29 Wheel 95-004-0155
30 Lower Mount 95-024-0325
31 Logo Plate 95-043-0331
([SORGHG9LHZ
1
2
3
4
5
7
8
9
10
11
12
13
14
16
19
17
18
21
20
22
23
25
26
27

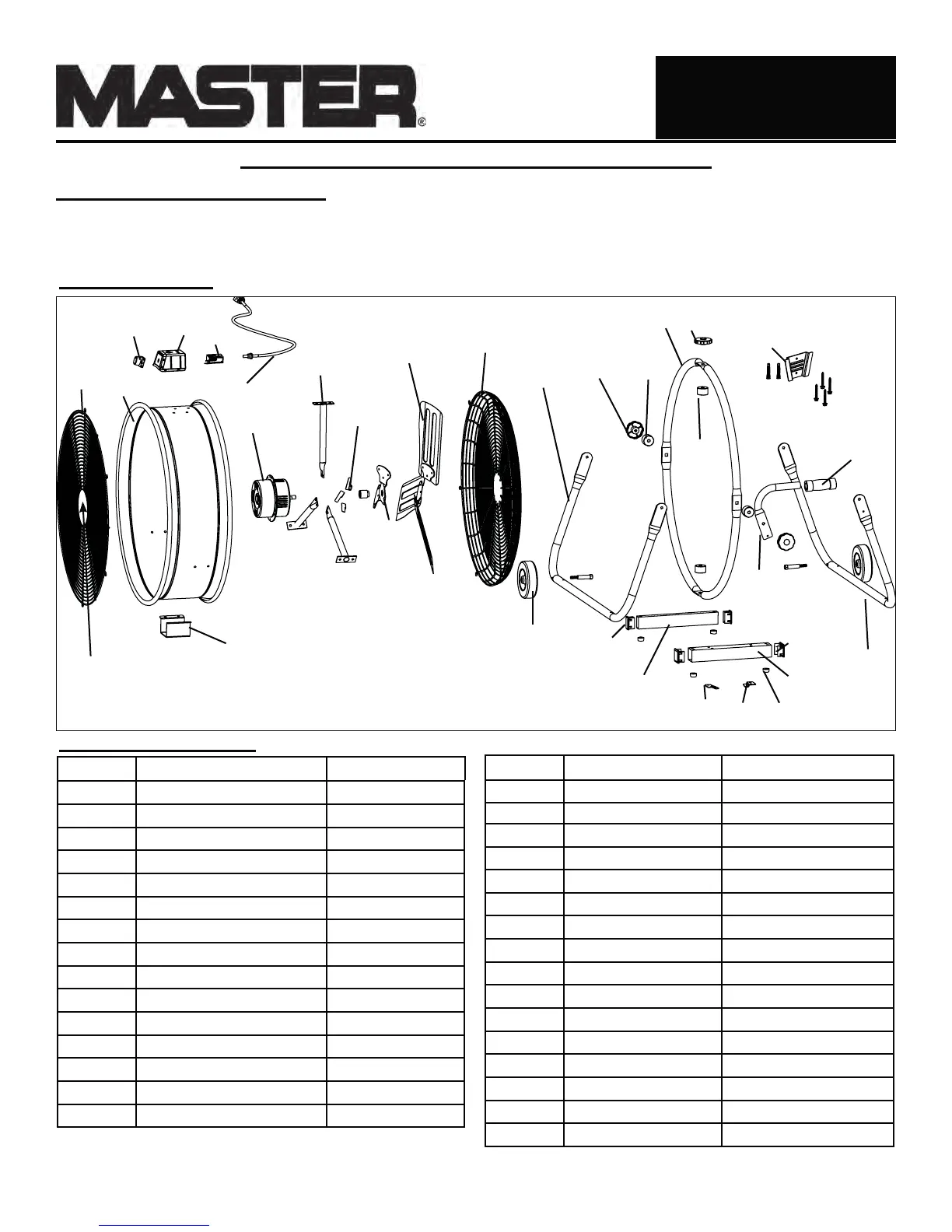

Figure 11: Exploded View of: MAC-24O-DDF
28
24
29
30
15
6
31
,QVWDOODWLRQDQG$VVHPEO\
1. Place the fan on level ground in a safe, desired position
then connect to an approved power source.
1(9(5/($9($)$1
81$77(1'(':+,/(
23(5$7,1*25:+,/(
&211(&7('72$32:(5
6285&(
