5HSODFHPHQW3DUWV

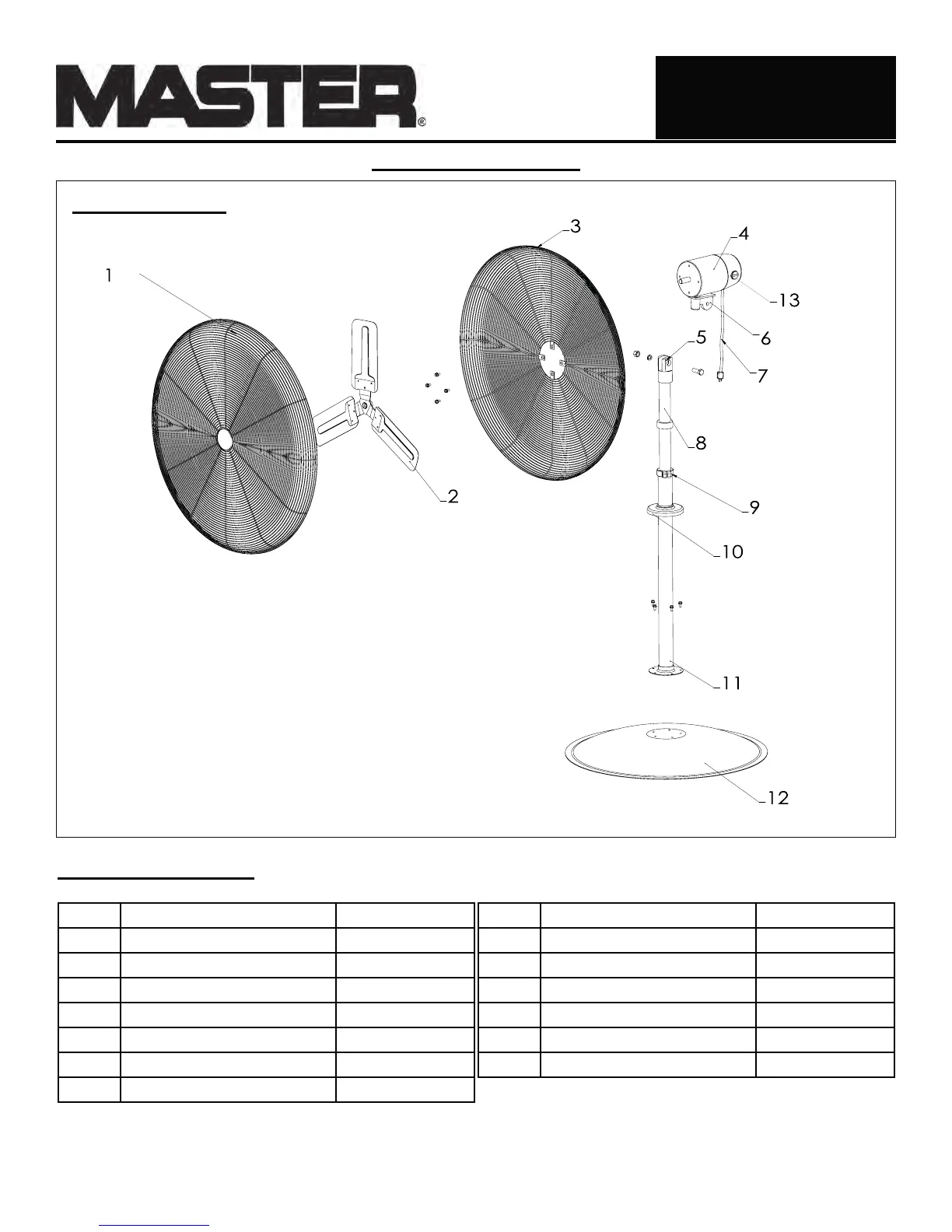

Figure 20: Exploded View of
MAC-30P-DDF-B
([SORGHG9LHZ
,WHP 'HVFULSWLRQ 3DUW1XPEHU
1 Front Guard 95-032-2030
2 Fan Blade Assembly 95-003-2035
3 Rear Guard 95-032-2035
4 Motor 95-030-2030
5 Upper Pole Connector 95-017-2000
6 Motor Mount Bracket 95-017-2005
7 Power Cord 95-026-2030
,WHP 'HVFULSWLRQ 3DUW1XPEHU
8 Upper Support Pole 95-017-2020
9 Locking Collar 95-017-2030
10 Base Cover 95-024-2005
11 Lower Support Pole 95-017-2025
12 Base 95-024-2000
13 Power Switch 95-031-2030
