Master STAR User Manual

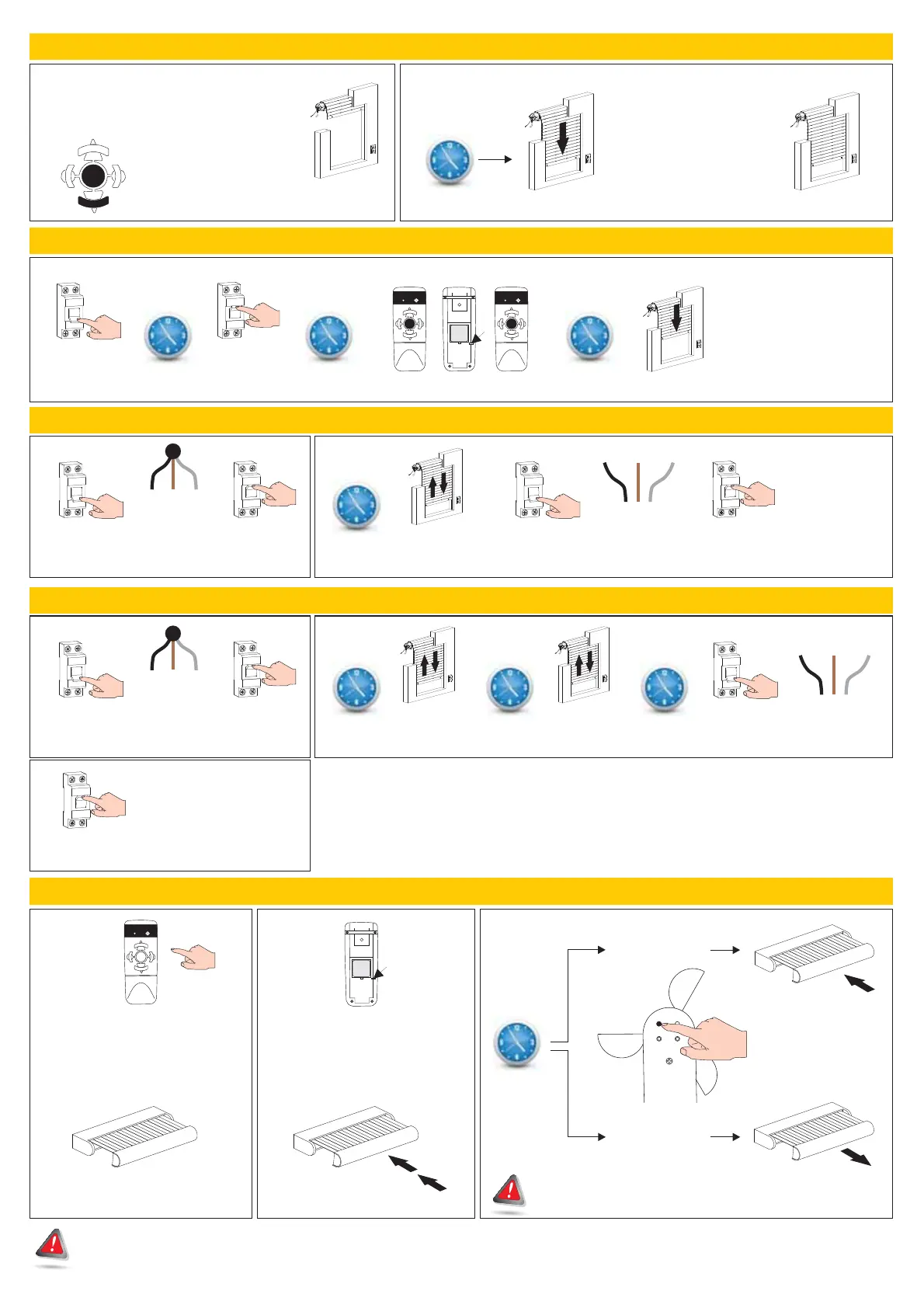

THE MOTOR STARTS TO MOVE
AND STOP IN THE INTERMEDIATE
POSITION PREVIOUSLY
STORED.
WAIT
2 sec.
WAIT
2 sec.
TO RECALL
THE INTERMEDIATE POSITION
PRESS AND
(holding STOP)
PRESS
STOP
DOWN
OFF
SWITCH OFF
POWER SUPPLY
ON
SWITCH ON
POWER SUPPLY
WAIT
2 sec.
PRESS THE SEQUENCE
STOP PROG STOP
WITHIN
8 sec.
WITHIN
8 sec.
THE MOTOR MOVES
DOWNWARD.
NOW FOLLOW THE
PREVIOUS POINTS 06-07
«LIMIT SWITCHES MEMORIZATION»
OFF
SWITCH OFF
POWER SUPPLY
ON
SWITCH ON
POWER SUPPLY
WAIT
30 sec.
CONNECT
TOGETHER
BLACK +
GREY +
BROWN
OFF
SWITCH OFF
POWER SUPPLY
RESTORE THE
CONNECTIONS
ON
SWITCH ON
POWER SUPPLY
THE MOTOR MOVES
2 TIMES ON THE
OPPOSITE DIRECTIONS
IF YOU WANT TO
STORE AGAIN A
TRANSMITTER
FOLLOW THE
PROCEDURE 08.
OFF
SWITCH OFF
POWER SUPPLY
ON
SWITCH ON
POWER SUPPLY
CONNECT
TOGETHER
BLACK +
GREY +
BROWN
OFF
SWITCH OFF
POWER SUPPLY
RESTORE THE
CONNECTIONS
ON
SWITCH ON
POWER SUPPLY
WAIT
30 sec.
TRANSMITTERS
DELETION
WAIT
15 sec.
LIMIT SWITCHES
DELETION
NOW FOLLOW THE
PREVIOUS POINTS 06-07
«LIMIT SWITCHES MEMORIZATION»
WAIT
2 sec.
USING A TRANSMITTER
ALREADY IN MEMORY BRING THE
MOTOR TO THE INTERMEDIATE POSITION.
INTERMEDIATE
POSITION
(around half way).
PRESS AND HOLD « » ON THE
TRANSMITTER UNTIL THE MOTOR
OPERATES 2 UPWARD MOVEMENTS
PROG
1
TO
STORE
TO
DELETE
«1»
PRESS
BUTTON
ON THE SENSOR
«1»
PRESS
BUTTON
ON THE SENSOR
ACTIVATION/DEACTIVATION PROCEDURE FOR THE «SUN FUNCTION» (only if ECLIPSE RADIO or ECLIPSE BATTERY are stored) IS DIFFERENT ACCORDING
TO THE USED TRANMSITTER. IT IS ADVISABLE TO SEE THE INSTRUCTION MANUAL OF THE TRANSMITTER.
13. Recalling the intermediate position using the transmitter.
14. Setting again the limit switches.
15. Cancellation of all the transmitters in memory.
16. Restore the factory settings - RESET.
17. Memorization or deletion of a wind or sun-wind sensor ( ).MISTRAL RADIO, MISTRAL BATTERY - ECLIPSE RADIO, ECLIPSE BATTERY
For MISTRAL BATTERY and ECLIPSE BATTERY hold
button 1 for around 3 seconds, until the motor moves.
PRESS AND HOLD
STOP + DOWN
instruction guide STAR / VENUS rev01 16.04.12
