MASTERBLEND MASTERFORCE - Maintenance; WASTE TANK FILTER BAG; VAC SHUT OFF; AUTO PUMP-OUT (If Equipped)

3
MASTERFORCE
®
ITEM# PART# PART DESCRIPTION
1 740100 COMPLETE ASSEMBLY
2 740102 BODY/DIAPHRAGM ASSEMBLY
3 740103 BODY
4 740104 DIAPHRAGM
5 740105 CLOSING SPRING
6 740106 VALVE COVER O-RING
7 740107 VALVE COVER
8 740108 VALVE COVER SCREWS (PAIR)
9 740109 SHUT OFF VALVE ASSEMBLY
10 A SHUT OFF DISC & STEM ASSM
11 B SHUT OFF SPRING
12 C SHUT OFF PLATE
13 D SHUT OFF STEM O-RING
ITEM# PART# PART DESCRIPTION
14 E SHUT OFF COVER O-RING
15 F SHUT OFF COVER
16 G STEM NUT WITH SET SCREW
17 H LEVER ASSEMBLY
18 I LEVER ASSEMBLY SCREWS (2)
19 740119 RUBBER WASHER
20 740120 BACKFLOW PREVENTER
21 740121 PROPORTIONER
22 740122 METERING TIP KIT
23 740123 CHEMICAL SUPPLY TUBING
24 740124 FOOT VALVE
25 740125 DISCHARGE TUBING
26 740126 FLOAT ASSEMBLY

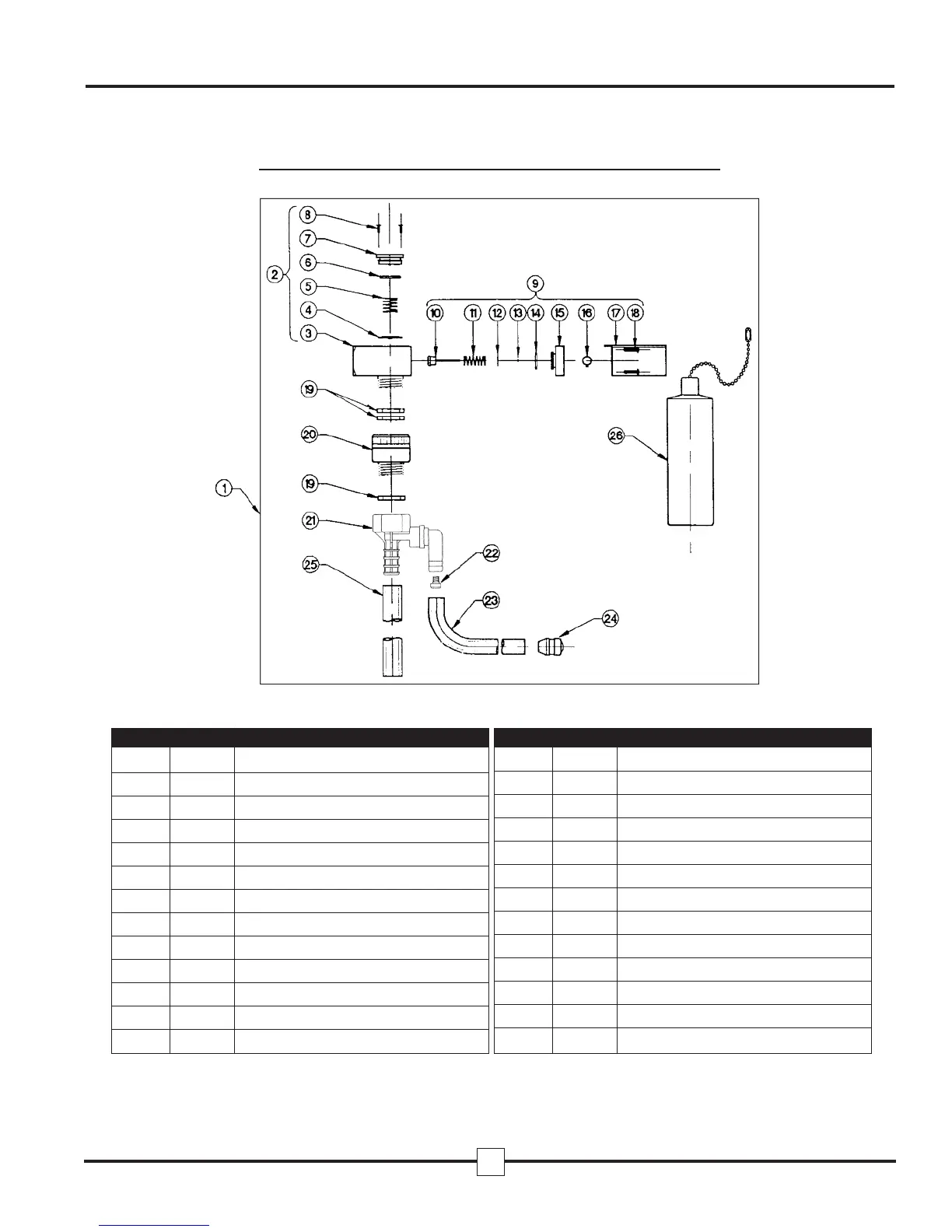

Figure 3
AUTOMATIC CHEMICAL FEED SYSTEM
MasterBlend (800) 525-9644
