10 www.mastercool.com
The COMMANDER4100 has the capabilities to perform reclamations on all standard and hybrid R1234yf
vehicles.
To begin using the COMMANDER machine, turn the power switch to the “ON” position. The power switch is
located on the front right of the machine. Allow a few seconds for the computer command center to power up.
Upon initial startup the language screen will appear. Choose from one of the 18 languages programmed into the
machine. Press the circle next to the language desired and press next. The command center will then display a
series of welcome screens that will provide useful information to first time users.
When the COMMANDER machine powers up the command center, it will display the automatic/manual screen
for COMMANDER4100.
WHEN THE MACHINE STARTS UP IT WILL CHECK:
1. If purge is necessary
2. If filter life is critical (140 kg) or expired (160 kg)
3. If vacuum pump oil is critical (3.45 hrs) or expired (5 hrs)

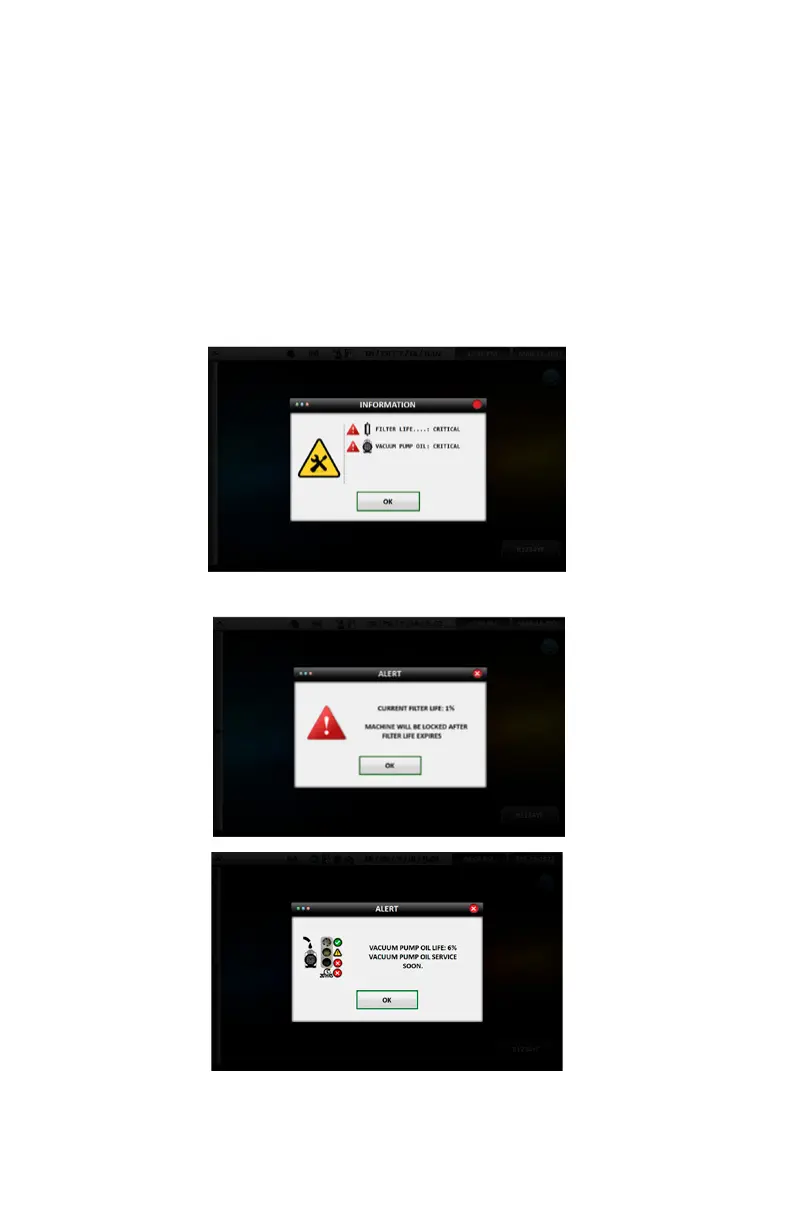

If automatic/manual process is selected and the above conditions exist then a warning pop-up be displayed:
MAIN MENU
To access the MAIN MENU at any time press the small arrows (<<) on the middle left of the screen. The main
menu consists of the following options: status, settings, maintenance, documents and help.
