THE MACHINE

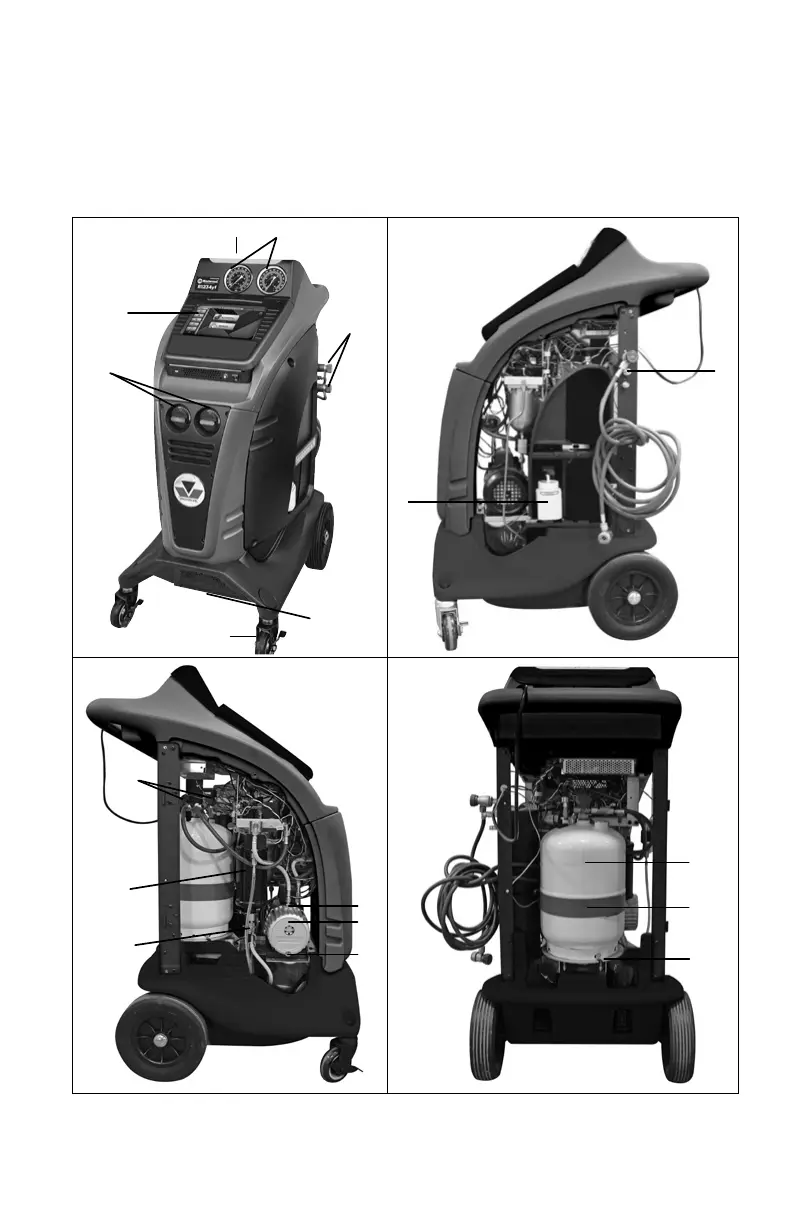

BASIC COMPONENTS (Refer to Figures 2, 3, 4 and 5.)
A. Visual Indicator Light
B. Low and High Side
Analog Gauges
C. Coupler Storage/
Hose Flush Manifold
D. Tank Filling Adapter
E. Waste Oil Bottle
F. Cabinet Fan
G. Wheel Locks
H. Low and High Side
Machine Valves
I. Computer Command Center
J. Low and High Side DOT
Tank Valves
K. 30 lb DOT Tank
L. Heater Blanket
M. Heavy Duty Load Cell Scale
N. Vacuum Pump
O. Vacuum Pump Vent/
Oil Fill
P. Vacuum Pump Oil Drain
Q. Filter Ball Valve
R. Filter
C
A
B
F
G
H
I
D
E
J
N
O
P
Q
R
K
L
M
FIG. 2 FIG. 3
FIG. 4 FIG. 5
