11. The machine will clear the hoses
12. End of process will be displayed
COMMANDER4100 MANUAL PROCEDURE
Once manual is chosen, the machine will now display the screen where you can manually hose flush, recover
the refrigerant in the vehicle, pull a vacuum for the programmed amount of time, perform a vacuum leak check,
or charge a programmed amount of refrigerant into the system. Each of these processes will be performed
individually. As each function is completed, “process complete” will be displayed on the screen and the visual
indicator light will turn green.
NOTE: Allow the machine to complete the process on its own. Terminating a process will cause the machine to
work in an unpredictable way. Some maintenance might be required to restore the machine to proper working
order.
Hose Flush (In Hybrid Mode):
1. Press the hose flushing button. Press go
2. Connect the couplers to the fittings on the side of the machine. Press next
3. Open the couplers by turning the knobs clockwise. Press next
4. Open machine valves. Press next
5. The hose flushing screen will now be displayed. The machine will use some of the refrigerant in the
internal tank to flush out the hoses. This process is used when switching from standard vehicle to
hybrid vehicle. This process will ensure the removal of any non-compatible oil before working on a
hybrid vehicle.
6. “Process complete” will be displayed when finished
Recovery:
1. Press the recovery button, press the GO button to start the refrigerant recovery.

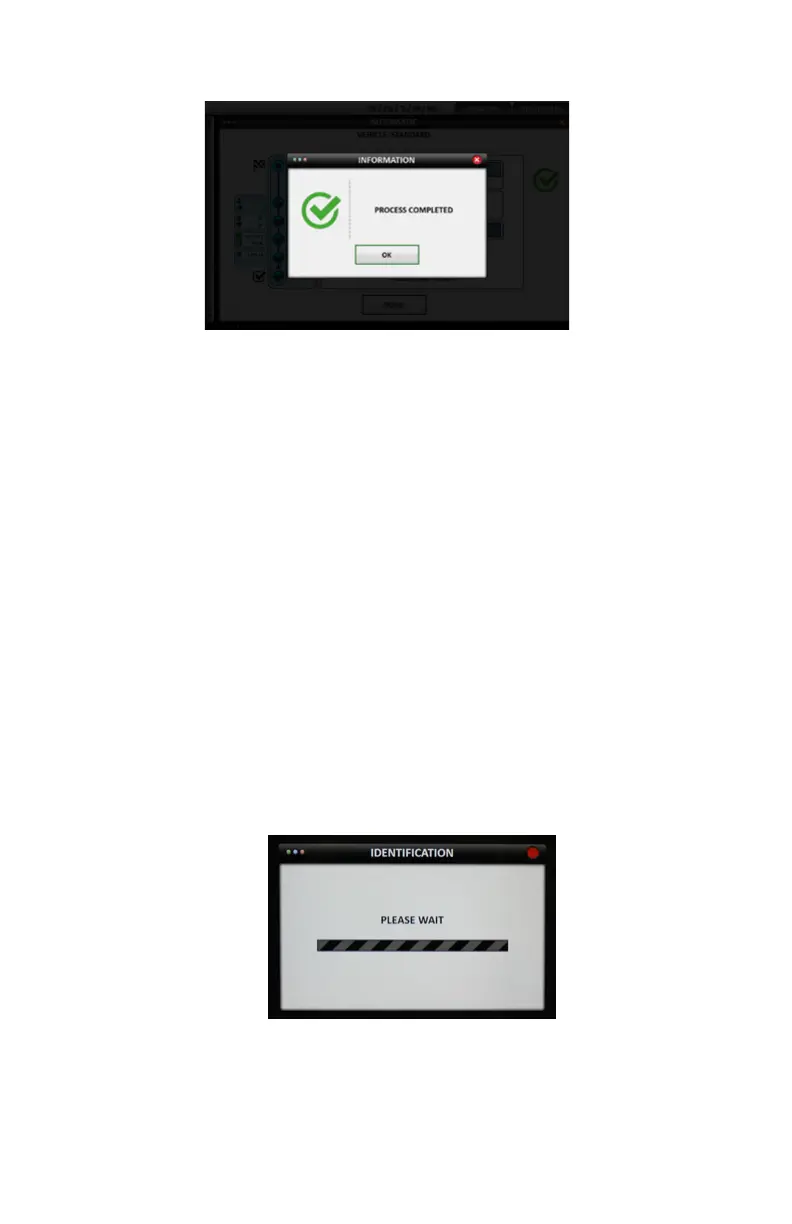

NOTE: The machine will now go through the identifying process. This will take approx. 5 minutes
When the identification process is complete the machine will alert to one of the following:
a.) If the refrigerant ID has passed the machine will continue with the recovery process (see below)
b.) If the refrigerant ID fails, follow the prompts to clear hoses and exit.
2. Follow the directions on the screen.
3. Connect the couplers to the vehicle. Press next to continue.
4. Open the couplers by turning the knob clockwise. Press next to continue.
5. Open the machine valves. Press next to continue.
