MasterCool HYDRA-SWAGE User Manual

2
English
English

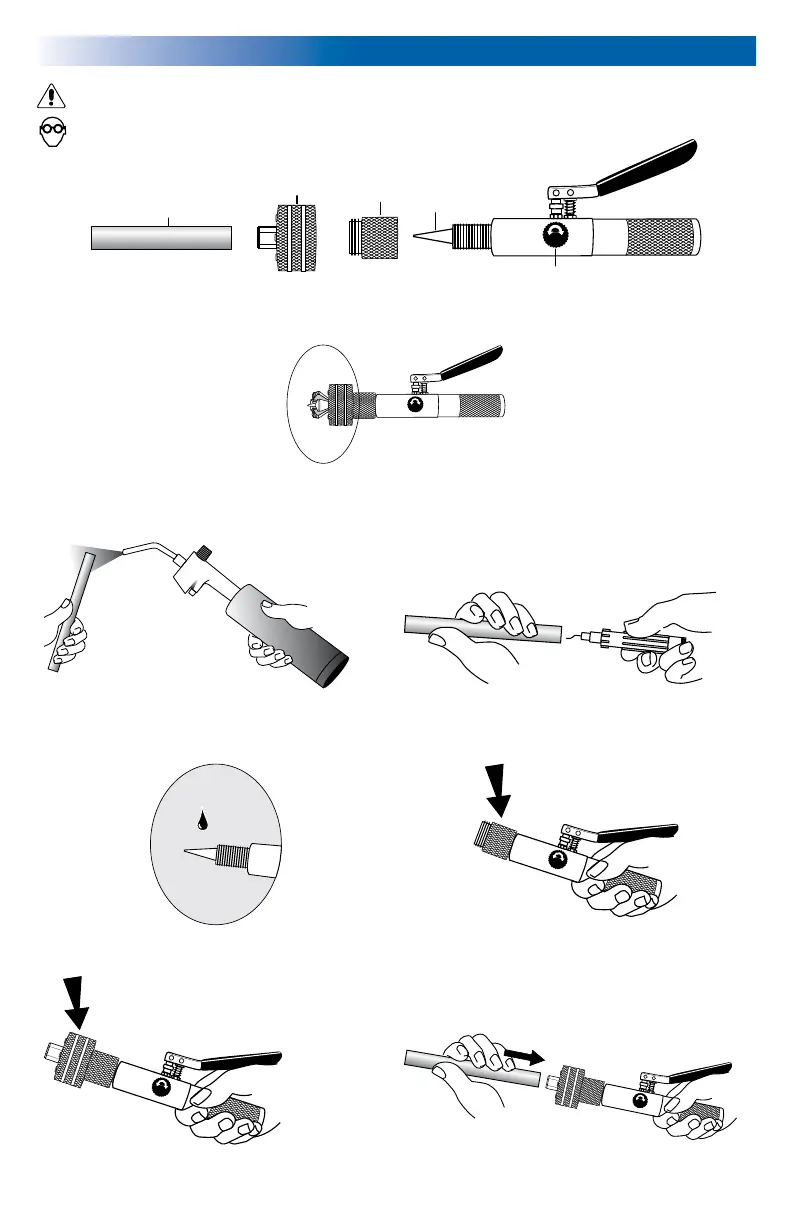

OPEN CLOSE
ADAPTER
RELIEF VALVE
KNOB
CONE
EXPANDER
HEAD
TUBING
NEVER OPERATE PUMP WITHOUT TUBING ON EXPANDER HEAD!
OPEN CLOSE
1) Use soft copper tube or heat (anneal) the section of
hard copper tubing to be expanded.
2) De-burr the inner walls of the tubing completely and
make sure the tube will fit easily over the expander
head.
DO NOT FORCE THE TUBE OVER THE EXPANDER
HEAD!
3) Apply lubricant (preferably grease) to the cone
before using.
4) Screw the adapter onto the shaft of the pump all
the way.
OPEN CLOSE
5) Screw the selected expander head onto the adapter.
OPEN CLOSE
6) Place the tubing onto the expander head. Make sure
that the expander head travels into the tube FREELY.
WARNING!! Do not force or twist the tube while you
are placing the tube on the expander head.
OPEN CLOSE
WARNING
Wear Safety Goggles
WARNING
Wear Safety Goggles
