3

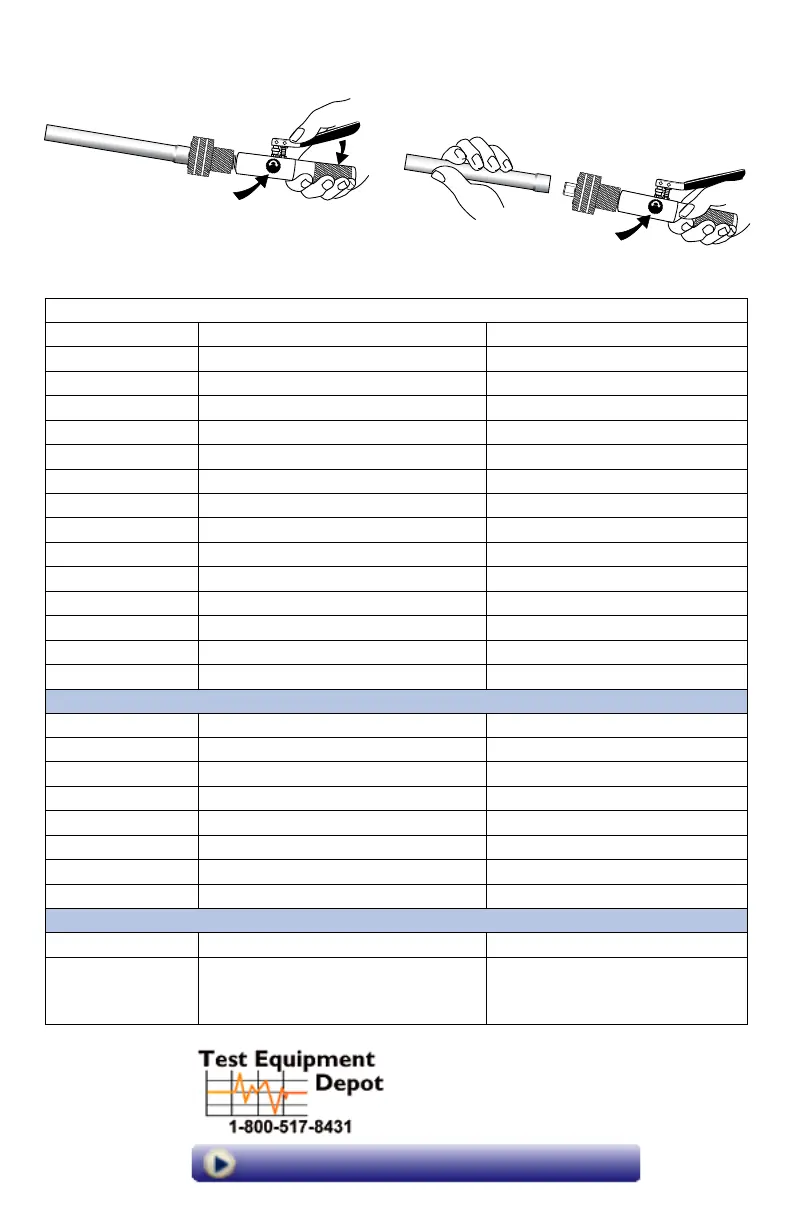

7) Tighten the relief valve knob and pump handle until
tubing is expanded and pump handle becomes firm.
OPEN CLOSE
8) Loosen the relief valve knob to release the finished
tubing. If the tube does not release from the die head
because of tube configuration or burrs, unscrew the
adapter and die head (together) from the pump body.
OPEN CLOSE
PARTS LIST
PART# DESCRIPTION TUBE O.D.
71600-03
Expander Head 3/8”
71600-04
Expander Head 1/2”
71600-05
Expander Head 5/8”
71600-06
Expander Head 3/4”
71600-07
Expander Head 7/8”
71600-08
Expander Head 1”
71600-09
Expander Head 1 1/8”
71600-11
Expander Head 1 3/8”
71600-13
Expander Head 1 5/8”
71600-17
Expander Head 2 1/8”
71601-A
Hydra-Swage
71601-D
Adapter for 71601
71685
Inner - Outer Reamer
71600-PB
Molded Box for 71600 & 71650
METRIC
PART# DESCRIPTION TUBE O.D.
71600-10M
Expander Head 10mm
71600-12M
Expander Head 12mm
71600-15M
Expander Head 15mm
71600-16M
Expander Head 16mm
71600-18M
Expander Head 18mm
71600-22M
Expander Head 22mm
71600-28M
Expander Head 28mm
ALSO AVAILABLE
71600-002
Expander Head 1/4”
71680
Hydraulic Flaring Accessory
Make OEM flares with a simple pump
of the handle.
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
