11

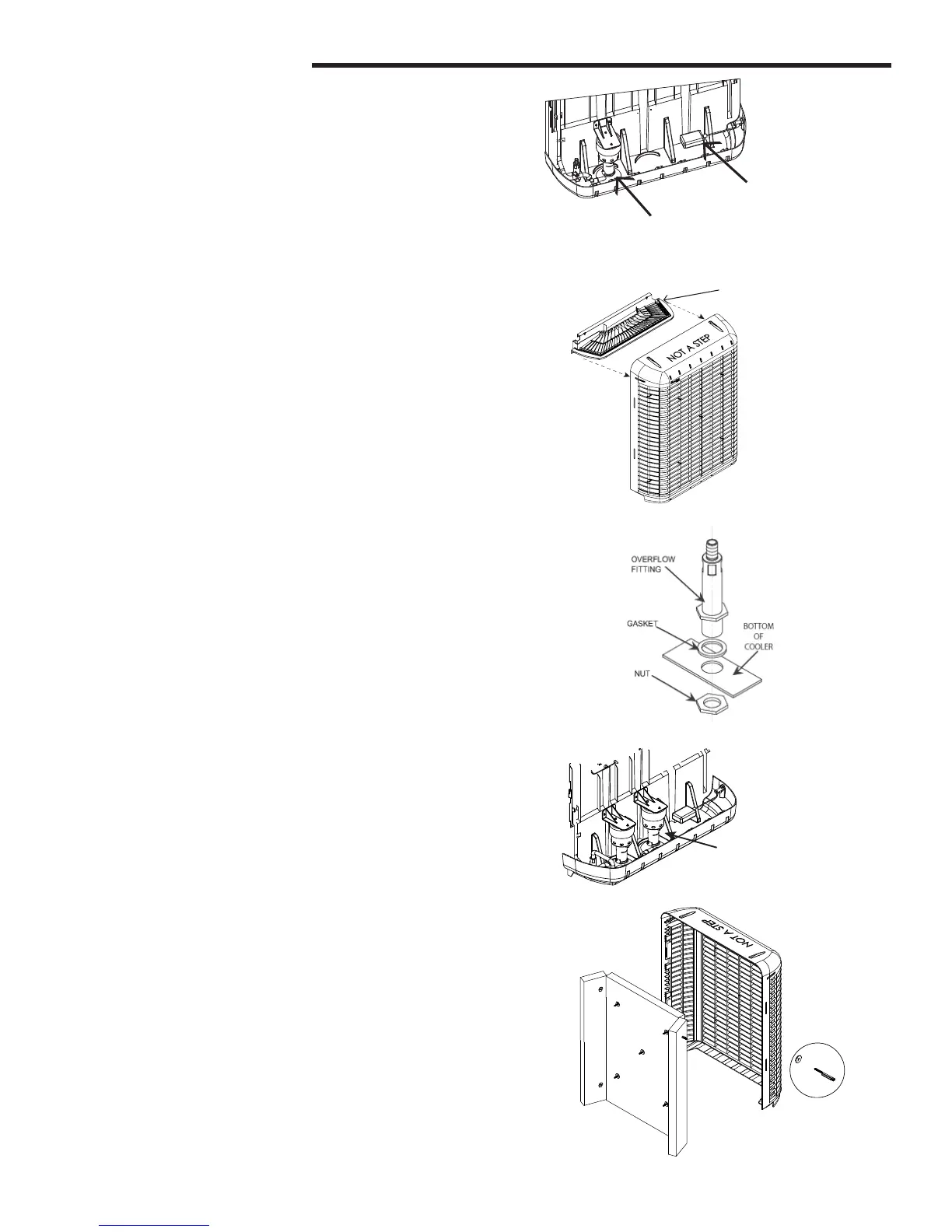

Annual Maintenance (Con’t)
Water System Pump:
1. The water pump is a self-contained unit that should re-
quire no maintenance other than ensuring that no debris
or corrosion interferes with free movement of the parts.
2. Ensure hose connection to pump is in good condition.
Water Float:
3. The À oat level is factory set for optimum performance,
however moderate adjustments can be made by bending
the À oat arm for a different water level.
4. The maximum recommen
ded water level is approximately
two inches (the height of the overÀ ow ori¿ ce.)
Water Distributor
5. Inspect the water distribution section to ensure all ori¿ ces
are clear.
6. Verify the hose connections are in good order and no
kinks or tears are present.
Water Drain OverÀ ow
7. Unscrew the drain overÀ ow pipe and check the condition
of the gasket at the bottom of the ¿ xture. When reinstall-
ing, ensure the standpipe ¿ xture is secure and there is no
leakage after the reservoir is ¿ lled.
NOTE: If during usage of the cooler you start notic-
ing low saturation of pads and insuf¿ cient cooling, or
leakage from the cooler, check the gasket at the base
of the standpipe. This is the most likely cause of leak-
age on this unit.
Optional Water Purge Pump (if installed)
8. If a purge pump has been installed on the MCP Series,
check that the purge pump and strainer are corro-
sion-free with freely moving parts.
Media Pad Replacement
9. When the media pads have become encased with miner-
al buildup, broken or damaged, replace them with Gen-
uine Munters GreenGuard Celdek
®
replacement pads,
model MCP44-PAD. You may purchase them on-line at
www.championcooler.com or by calling 1.800. 643.8341.
WATER
SYSTEM
PUMP
WATER
FLOAT
WATER
DISTRIBUTOR
OPTIONAL
PURGE PUMP
(OWNER INSTALLED)
