MasterCraft 054-1240-4 User Manual

12
No. Description No. Description
1 Palm grip 6 ON/OFF switch
2 Dust bag assembly 7 60 grit sanding disc
3 Motor vents 8 80 grit sanding disc
4 8 hole hook & loop sanding base 9 120 grit sanding disc
5 Hook & loop fastening system
13
RANDOM ORBIT SANDER 054-1240-4
RANDOM ORBIT SANDER 054-1240-4
NOTE: The drawings in the assembly and
operating section of this manual may differ
slightly from the tool you purchased.
Installing a sanding disc
To install a sanding disc, rmly press the sanding
disc (1) onto the hook & loop pad (2) (Fig. 1).
NOTES:
a) Place the sanding disc so the holes in the disc
line up with the matching holes in the hook &
loop pad.
b) Press the sanding disc rmly onto the hook &
loop pad.
To remove the sanding disc (1), simply peel the
disc away from the hook & loop pad (2) (Fig. 2).
On/off switch
To turn the switch ON, press the left hand side
of the switch (1) (Fig. 3). To turn the switch OFF,
press the right hand side of the switch (2).
Connecting the dust bag
assembly to the sander
1. Slide the dust bag connector (1) into the
dust port (2) in the rear of the sander
(Fig. 4).
NOTE: Make sure the dust bag connector
key (3) mates with the dust port key way (4).
2. When the dust bag connector is pressed
fully into the dust port, turn the dust bag
approximately 15° clockwise to lock the
dust bag onto the sander.
g. 1
g. 2
g. 3
g. 4

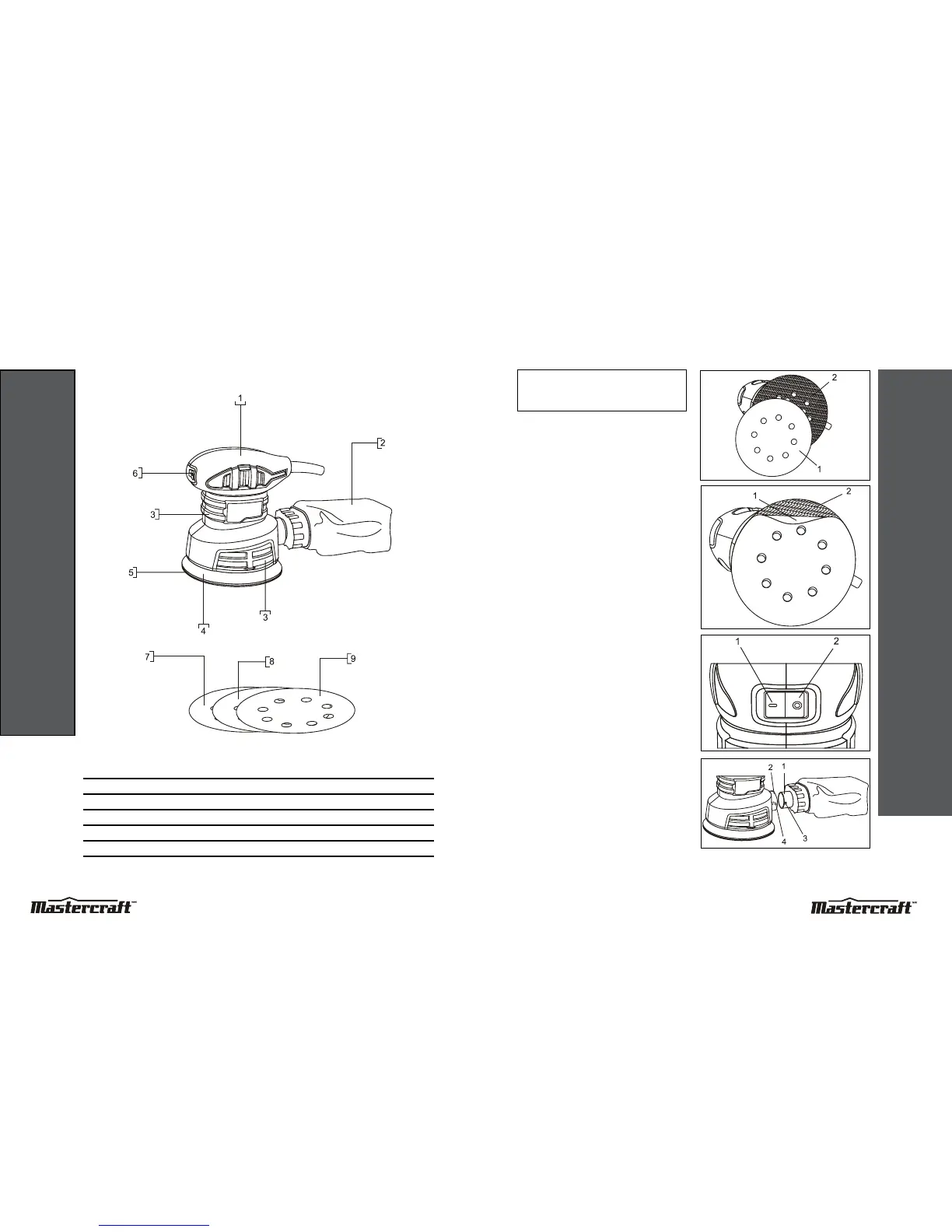

KEY PARTS DIAGRAM
OPERATING INSTRUCTIONS
