ASSEMBLING & INSTALLING THE

STAND

The C-clamp that holds the hang bar rod

can be mounted either horizontally or

vertically (see Fig. 6a & 6b).

1. To open the clamp (1), pull back on the

quick release lever (2) and pull

outward on the clamp knob (3).

2. Clamp the C-clamp onto a work table

(horizontal surface) or other

appropriate vertical surface by pushing

inward on the clamp knob. Complete

the tightening process by turning the

clamp knob clockwise (see Fig. 6a &

6b).

NOTE: Do not over tighten to avoid

breaking the clamp.

3. Thread screw (3) in the bottom of the

hang bar rod (4) into the appropriate

mounting hole (5) in the C-clamp (see

Fig. 7).

NOTE: Do not over tighten. Hand-

tighten only.

4. Loosen hang bar sections (6) by

turning them counter-clockwise.

5. Pull out each hang bar section

approximately 5” and lock into place by

turning them clockwise.

NOTE: Do not over tighten. You will

damage the locking mechanism.

6. Insert the rotary tool hanger (7) into the

top of the hang bar rod.

7. Using the hang loop on the rotary tool

(8) hang rotary tool from the stand (see

Fig. 8).

ASSEMBLY & OPERATION

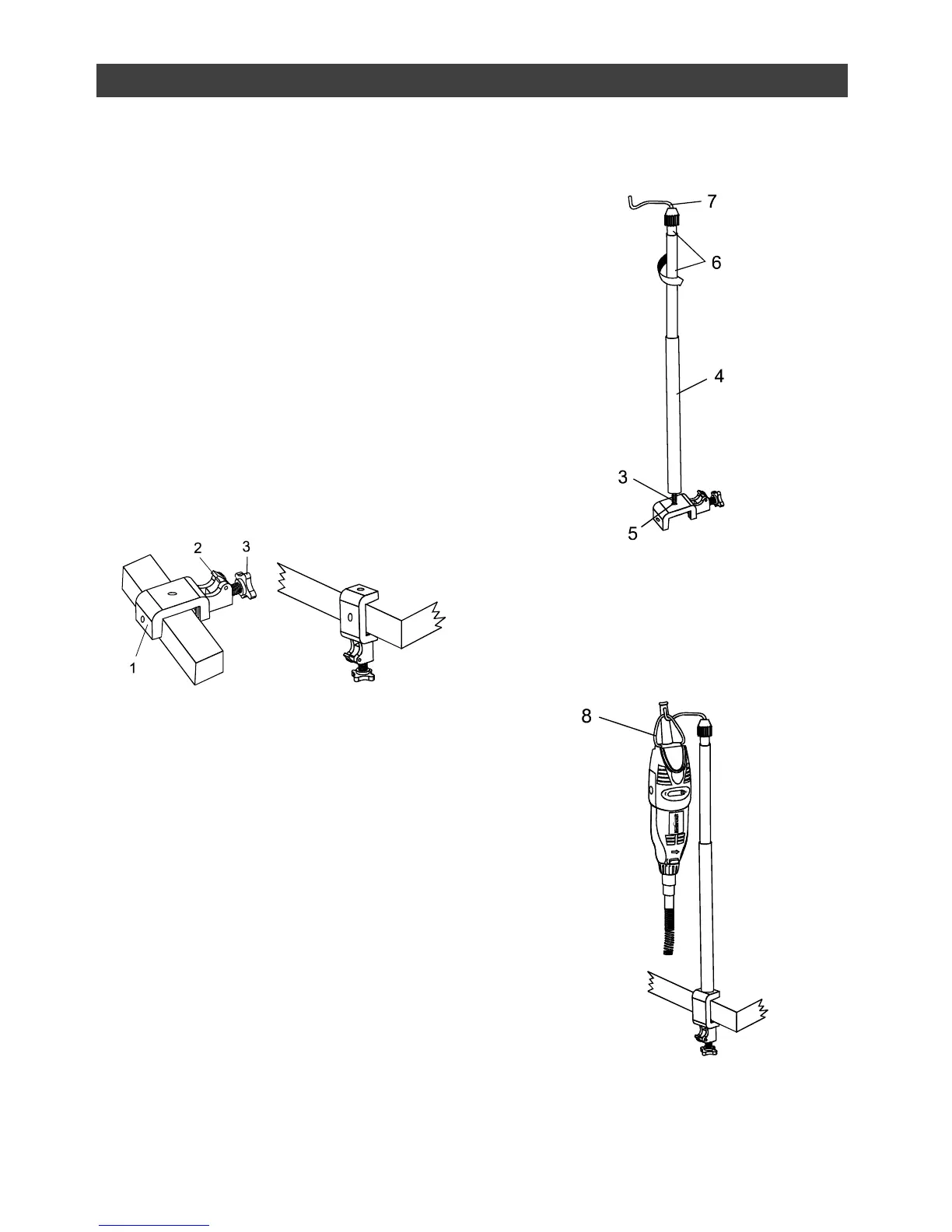

Fig. 6a

Fig. 6b

Fig. 7

Fig. 8
