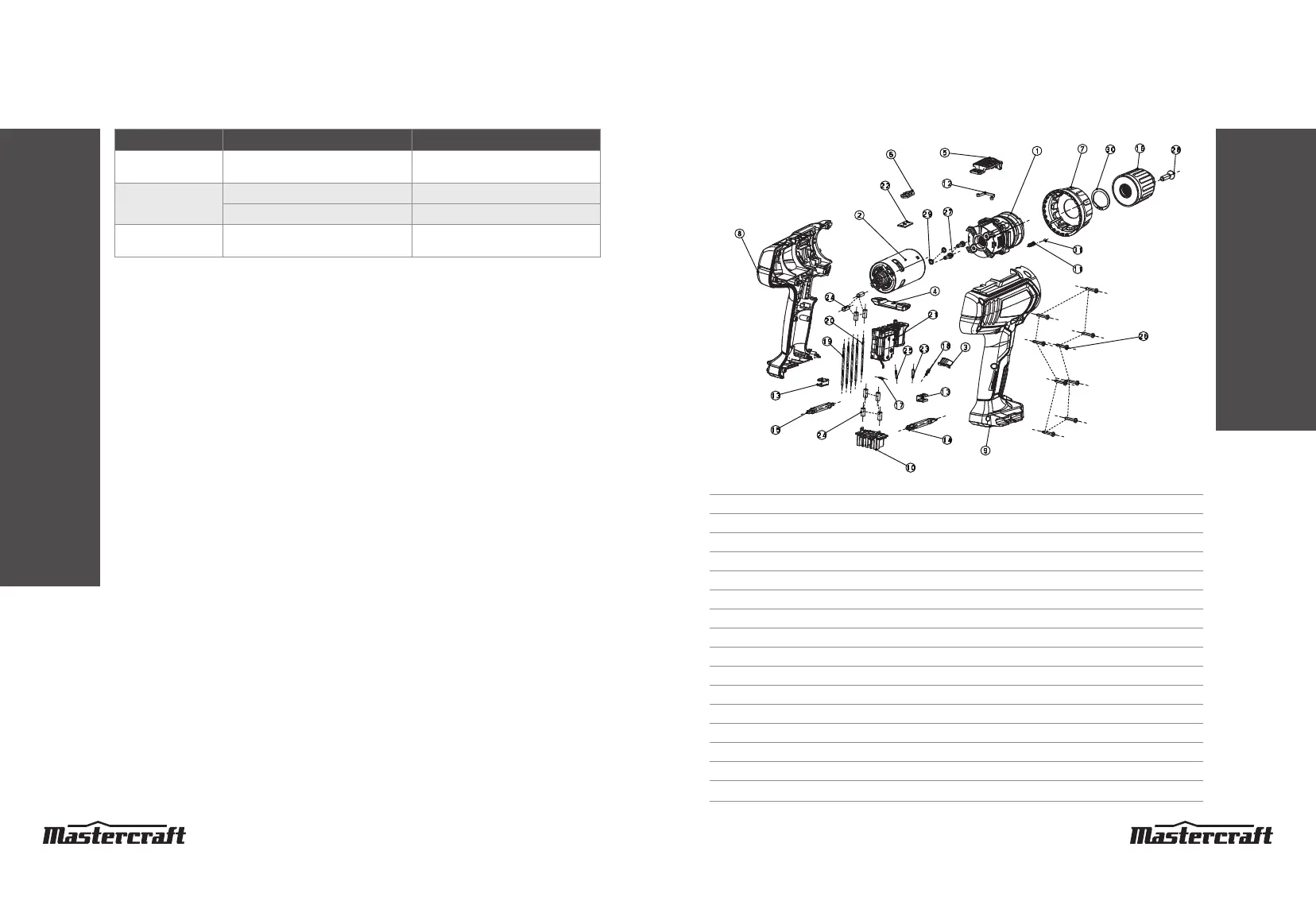

Exploded view
No. Part No. Description No. Part No. Description
01 2790306000 Gear Case Assembly 17 4120311001 Lead Resistor
02 2790307000 Motor And Gear Assembly 18 4360225000 LED
03 3126500000 LED Cover 19 4860003000 Inner Wire
04 3126501000 F/R Button 20 4860007000 Inner Wire
05 3126502000 Speed Change Button 21 4870452000 Trigger Switch
06 3126503000 Lens 22 4890709000 PCB Assembly
07 3126506000 Clutch Cap 23 4920154000 Shrinkable Tube
08 3321410000 Left Housing Assembly 24 4920156000 Shrinkable Tube
09 3321411000 Right Housing Assembly 25 4920158000 Shrinkable Tube
10 3402385000 Contact Receptacle Assembly 26 5610013000 Tapping Screw
11 3660466000 Compression Spring 27 5620422000 Screw
12 3700961000 Stop Spring 28 5620488000 Screw (L.H.)
13 3703673000 Bits Holder 29 5650007000 Spring Washer
14 3810357000 Screw Bit 30 5660142000 Circlips For Shaft-Type B
15 3810405000 Screw Bits 31 5700178000 Steel Ball
16 3860112000 Chuck
19 20
20V max* LITHIUM-ION CORDLESS DRILL/DRIVER - 054-3118-620V max* LITHIUM-ION CORDLESS DRILL/DRIVER - 054-3118-6
PROBLEM POSSIBLE CAUSES SOLUTIONS
The drill/driver does
not work.
The battery is depleted. Charge the battery.
The bit cannot be
installed.
1. The chuck is not opened. 1. Open the chuck.
2. The bit does not fit the chuck. 2. Use a suitable bit.
The motor is overheating.
Be sure the cooling vents are free from dust
and obstacles.
Clean and clear the vents. Do not cover with
your hand during operation.
If the problem remains unsolved after performing the checks described above, call the toll-free helpline at
1-800-689-9928.
TROUBLESHOOTING
PARTS LIST
