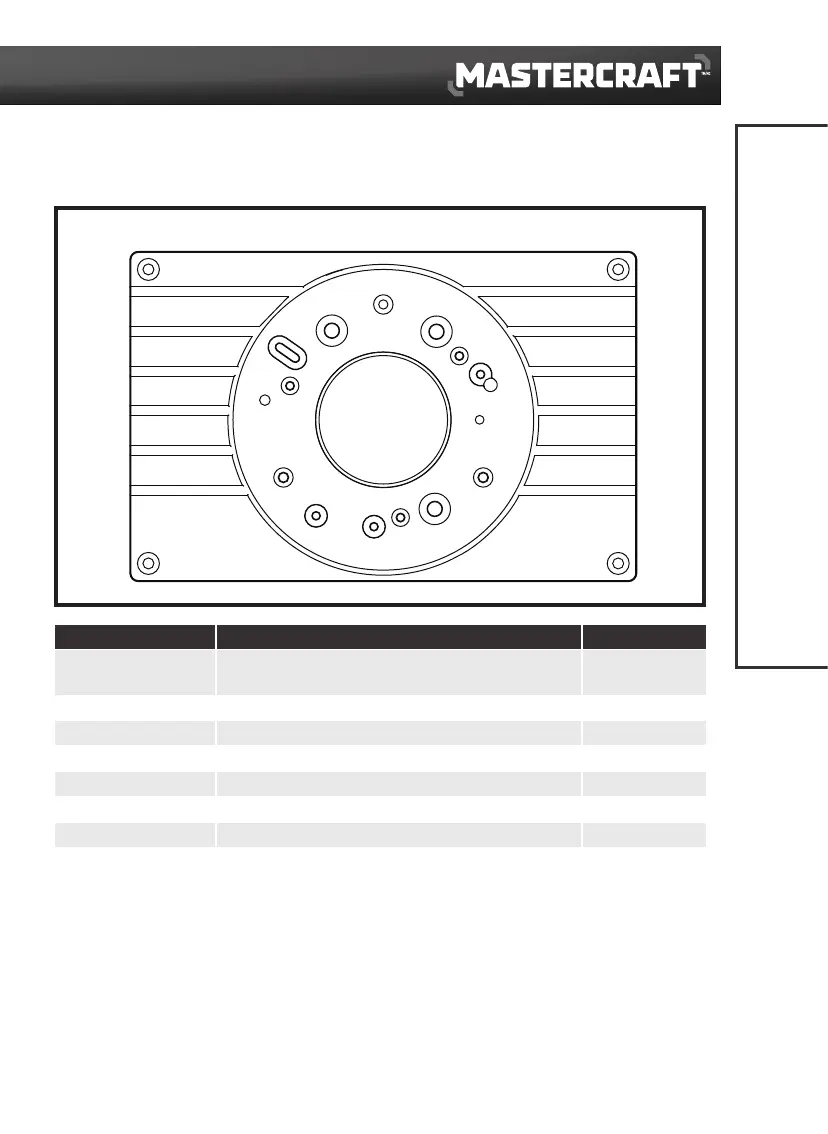

ATTACHING THE ROUTER TO THE ROUTER TABLE
(fig 3)
The holes on the router mounting plate can fit most popular routers: Mastercraft
®
, MAXIMUM
®
, Bosch
®
,
Porter Cable
®
, DeWALT
®
, Ryobi
®
.
A
A
A
B
B
B
C
C
C
D
D
D
fig 3
ROUTER BRAND Router Model Hole Pattern
Mastercraft
®
54-6908-8, 054-6908-8, 054-6902-0, 054-6988-6,
54-7010-6, 054-7010-6, 054-6821-2
Hole A
MAXIMUM
®
54-6810-8, 054-6810-8, 054-2433-0 Hole A
Skil
®
1825 Hole A
Bosch
®
1617EVSPK (plunge base only) Hole B
Bosch
®
1617EVSPK( fixed base only) Hole C
Porter Cable
®
694VK, 893, 1001-T2 Hole C
Dewalt
®
DW616 Hole C
Ryobi
®
RE1803BK Hole D
SKIL
®
is a registered trademark of Chervon (China)Trading Co.,Ltd.. BOSCH
®
is a registered trademark
of Robert Bosch GmbH. Porter Cable
®
is a registered trademark of the Porter Cable Corporation.
DEWALT
®
is a registered trademark of DEWALT Industrial Tool Co. Ryobi
®
is a registered trademark of
Ryobi Limited and is used by One World pursuant to a license granted by Ryobi Limited.
