model no. 054-6841-4 | contact us 1-800-689-9928
14
ASSEMBLY AND ADJUSTMENT

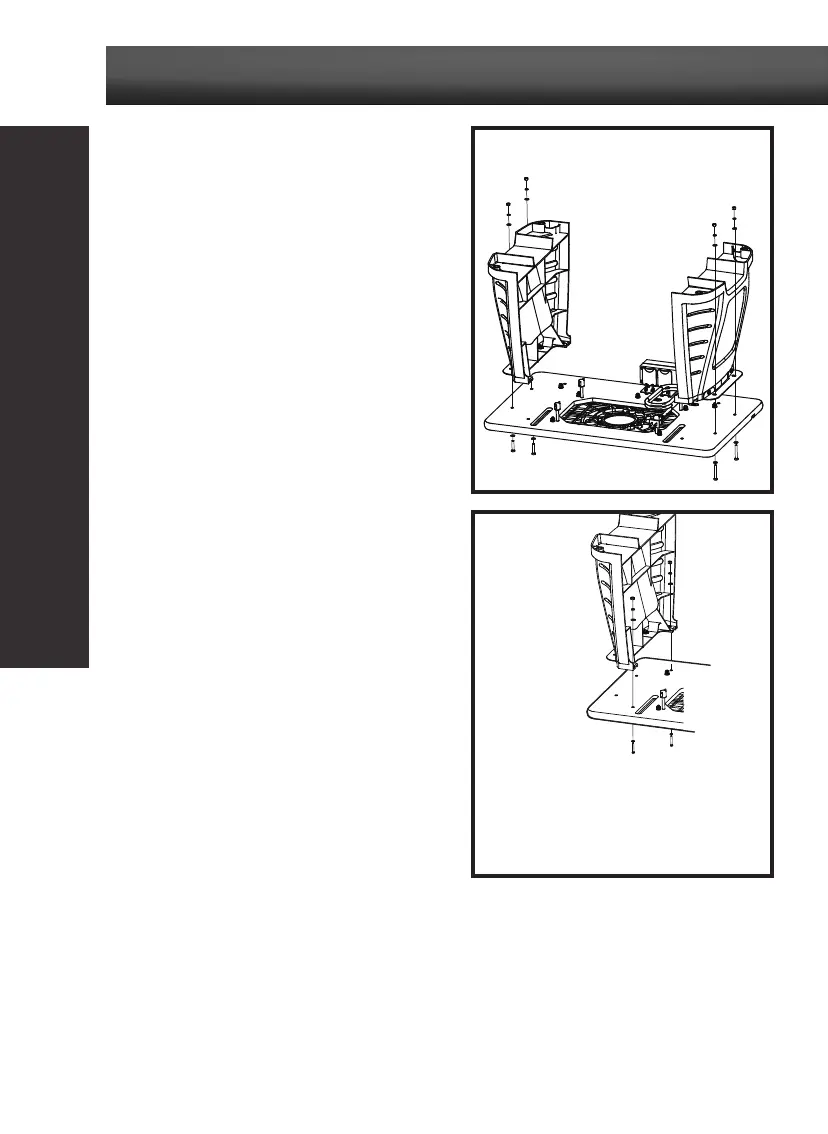

ATTACHING THE LEGS TO THE TABLETOP
1. Place the tabletop on a flat, level surface, with the
underside of the table facing up.
2. Position the legs against the underside of the
tabletop surface, as shown in fig 1.
3. Position one short end of the table so that it extends
beyond the edge of the work surface far enough to
gain access to the four holes in that end of the top of
the router table.
4. Align the two outermost holes on the tabletop with
the holes in the leg bracket.
5. Place a small washer(19) onto each of two short pan-
head screws(12). Insert the short pan-head screws up
through the holes in the table and through the holes
in the leg bracket. Place a small washer (19), a spring
washer (18), and a small nut (17) on the threads of
each screw. Loosely tighten the nuts (fig 1).
6. Place a small washer(19) onto each of two long pan-
head screws(13). Insert the long pan-head screws
up through the other two holes on the tabletop and
through the corresponding holes in the leg. Place a
small washer (19), a spring washer (18), and a small
nut (17) on the threads of each screw (fig 2).
7. Tighten all fasteners securely.
8. Repeat with the other leg.
OPERATING INSTRUCTIONS
fig 1
fig 2
