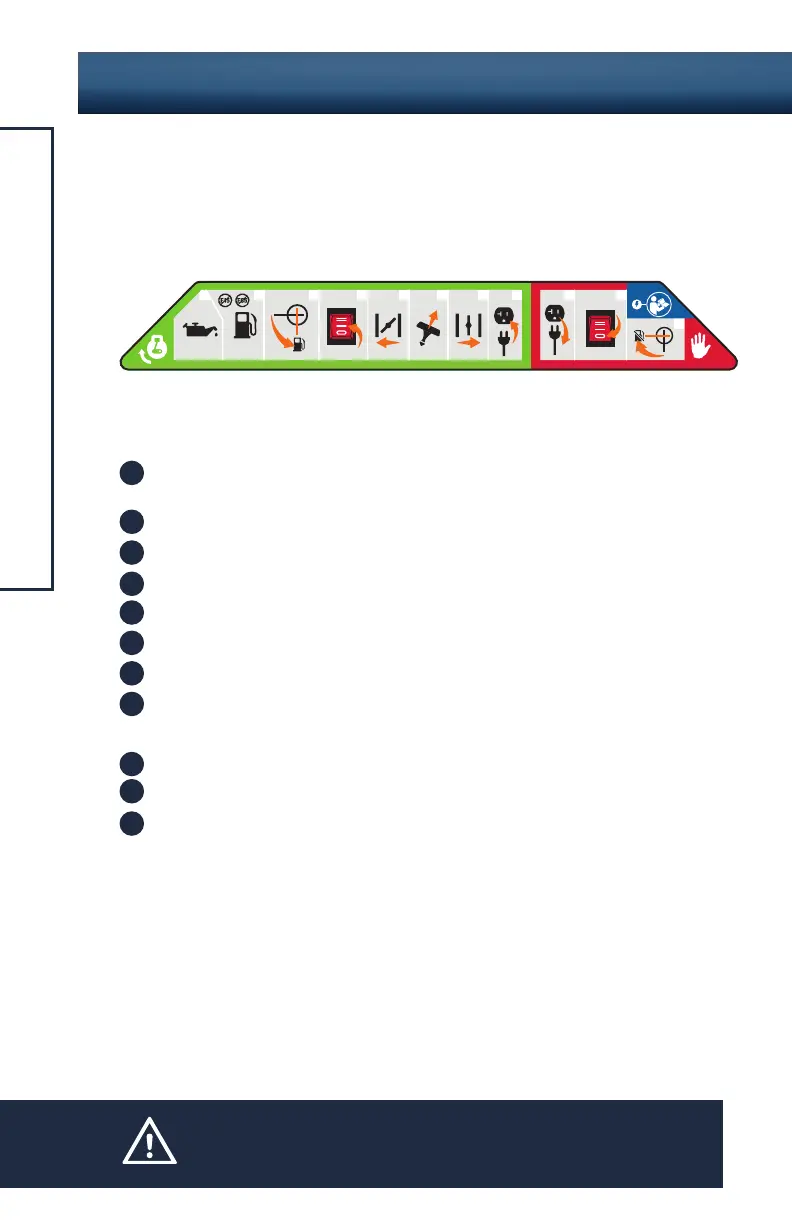

QUICKSTART LABEL SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to more safely operate the product.
Starting the Engine
Recommended oil is 5W-30.
• Check oil level.
See page 20 - “Add Engine Oil”.
• Check gasoline level.
• Turn fuel valve to “ON” position.
• Press ignition swith to “ON” position.
• Move the choke lever to “CHOKE” position.
• Pull the recoil cord.
• Move the choke lever to “RUN” position.
• Plug in desired device.
Stopping the Engine
• Turn off and unplug all connected electrical loads.
• Press the ignition switch to the “OFF” position.
• Turn the fuel valve to the “OFF” position.
Electric Start
See page 24 in “Operation” section.
IMPORTANT SAFETY INSTRUCTIONS
DANGER!
• Move generator outside and far away from windows, doors and intake ventilation covers.
