CONTROLS AND FEATURES
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location
and function of the controls and features. Save this manual for future reference.

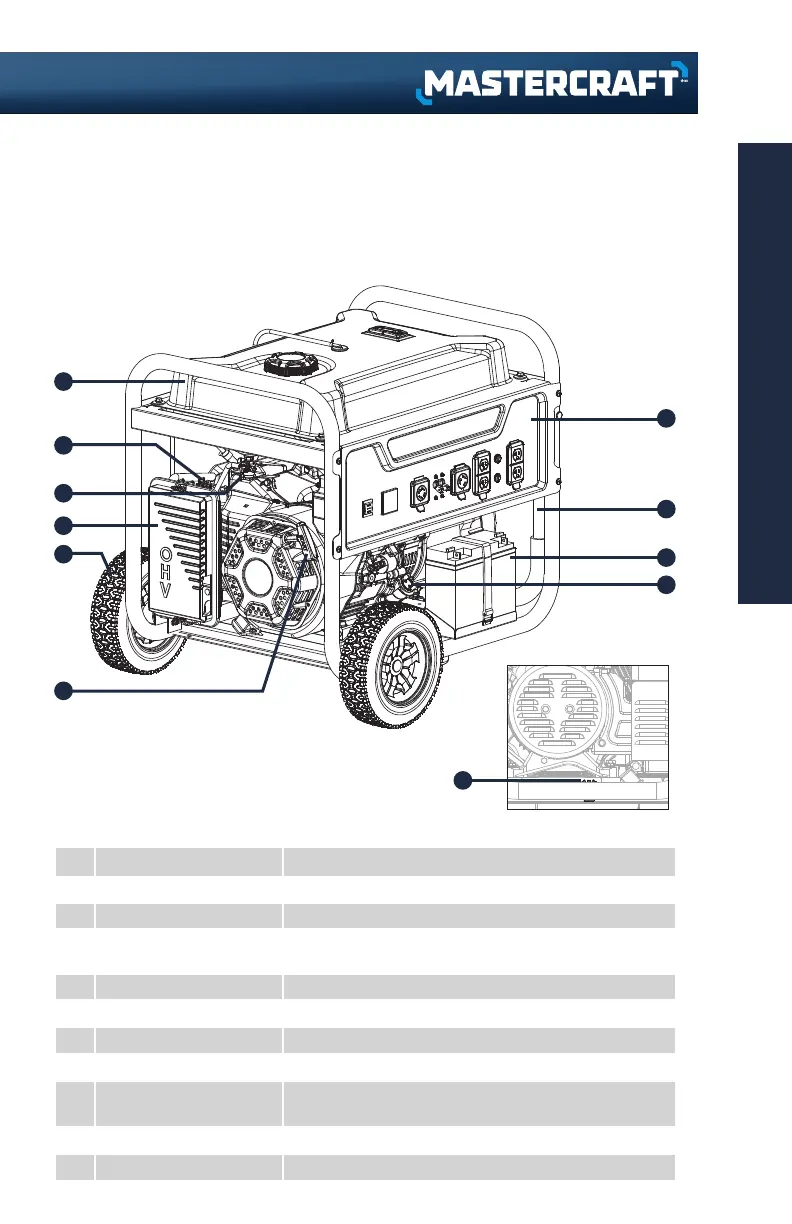

1. Gasoline Tank 6.1 gal. (23.1 L)
2. Choke Used to start the engine.
3. Fuel Valve Used to turn fuel supply on and off to engine.
4.
Air Filter
Protects the engine by filtering dust and debris from
the intake air.
5. Never Flat Wheels 9 1/2" (24.1 cm)
6. Recoil Starter Used to manually start the engine.
7. Oil Fill Cap/Dipstick Used to check and fill oil level.
8. Battery Provides 12V DC power to the starting system.
9.
Folding Handle
Used to move unit by lifting and rolling on wheels. Do not
use to lift or carry the unit.
10. Control Panel See “Control Panel” section.
11. Ground Terminal Consult an electrician for local grounding regulations.
5
7
8
9
10
6
11
4
3
2
1
