SELF-LEVELLING CROSS-LINE LASER LEVEL - 057-4587-6
18
SELF-LEVELLING CROSS-LINE LASER LEVEL - 057-4587-6

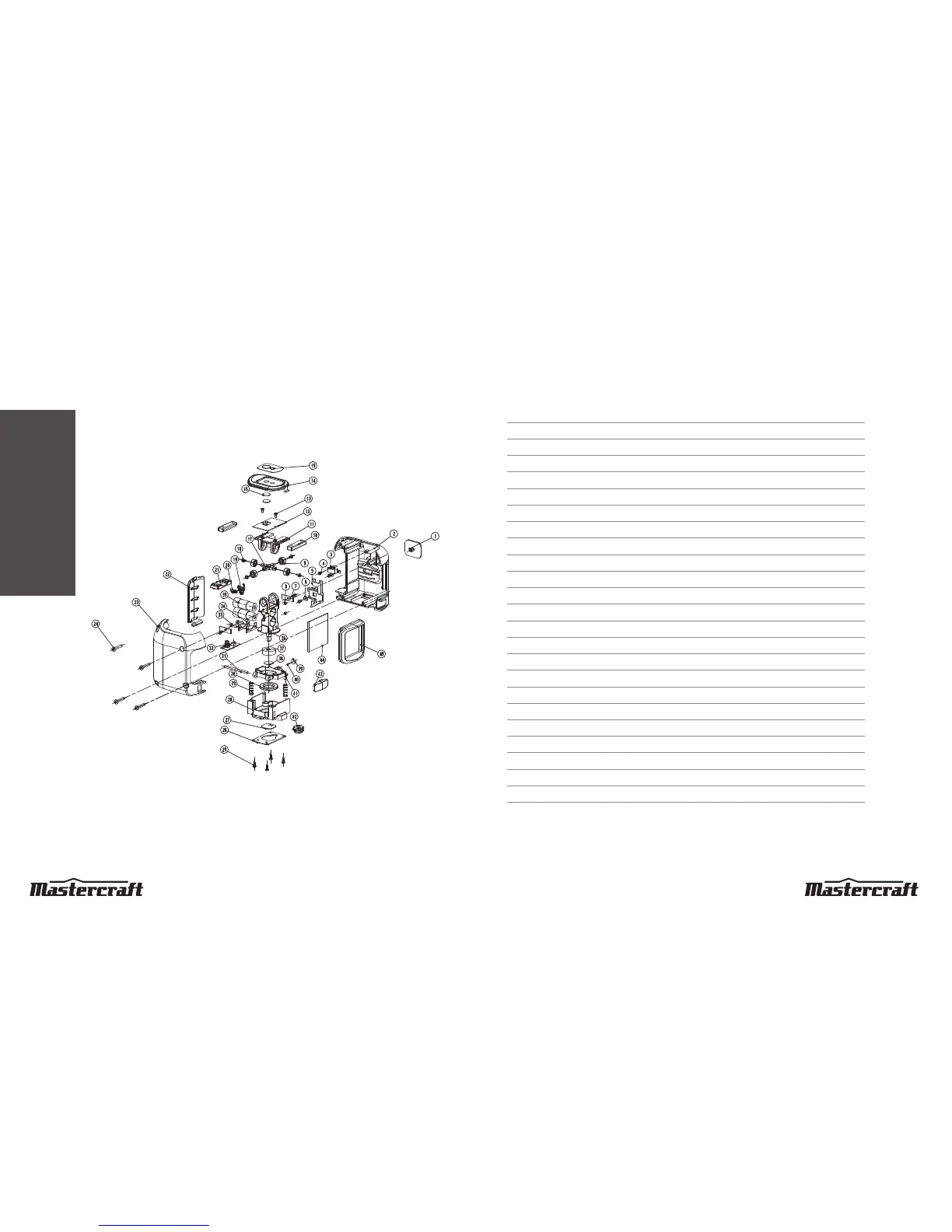

Exploded view
No. Part No. Description No. Part No. Description
1 3126974000 Slide Button 24 5610013000 Tapping Screw
2 3126976000 Left Housing 25 5610005000 Tapping Screw
3 4870343000 Micro Switch 26 3704889000 Magnetic Holder
4 5610004000 Tapping Screw 27 4890718000 PCB Assembly
5 3126972000 Handspike 28 3126971000 Support
6 5650033000 Plain Washer 29 3660316000 Spring
7 4580001000 PCB Board 30 3680138000 Magnet Ring
8 5620100000 Hexagon Socket Screw 31 5670153000 Pin
9 5700002000 Ball Bearing 32 2820009000 Contactor
10 3123982000 Rubber Gasket 33 5620202000 Screw
11 3420741000 Top Support 34 3700042000 Sheet copper
12 4890969000 PCB Assembly 35 2780015000 Laser Module
13 5620058000 Screw 36 3421447000 Main Support
14 3126977000 Top Cover 37 3552004000 Pendulum
15 3705466000 Control Panel 38 3704986000 Paster
16 3124822000 Rubber Protector 39 3550488000 Guiding Roller
17 3520368000 Shaft 40 5670017000 Parallel Pin
18 5620394000 Screw With Washer 41 3321123000 Brake Assembly
19 3660304000 Spring 42 5630228000 Collar Nut
20 3660305000 Spring 43 3126978000 Decorate Cover
21 3126980000
Contact Receptacle Assembly
44 3690137000 Transparent Guard
22 3126975000 Battery Cover 45 3126979000 Rubber Protector
23 3126973000 Right Housing
If any parts are missing or damaged, or if you have any questions,
please call the Toll-free Helpline, at 1-800-689-9928.
PARTS LIST
PARTS LIST
