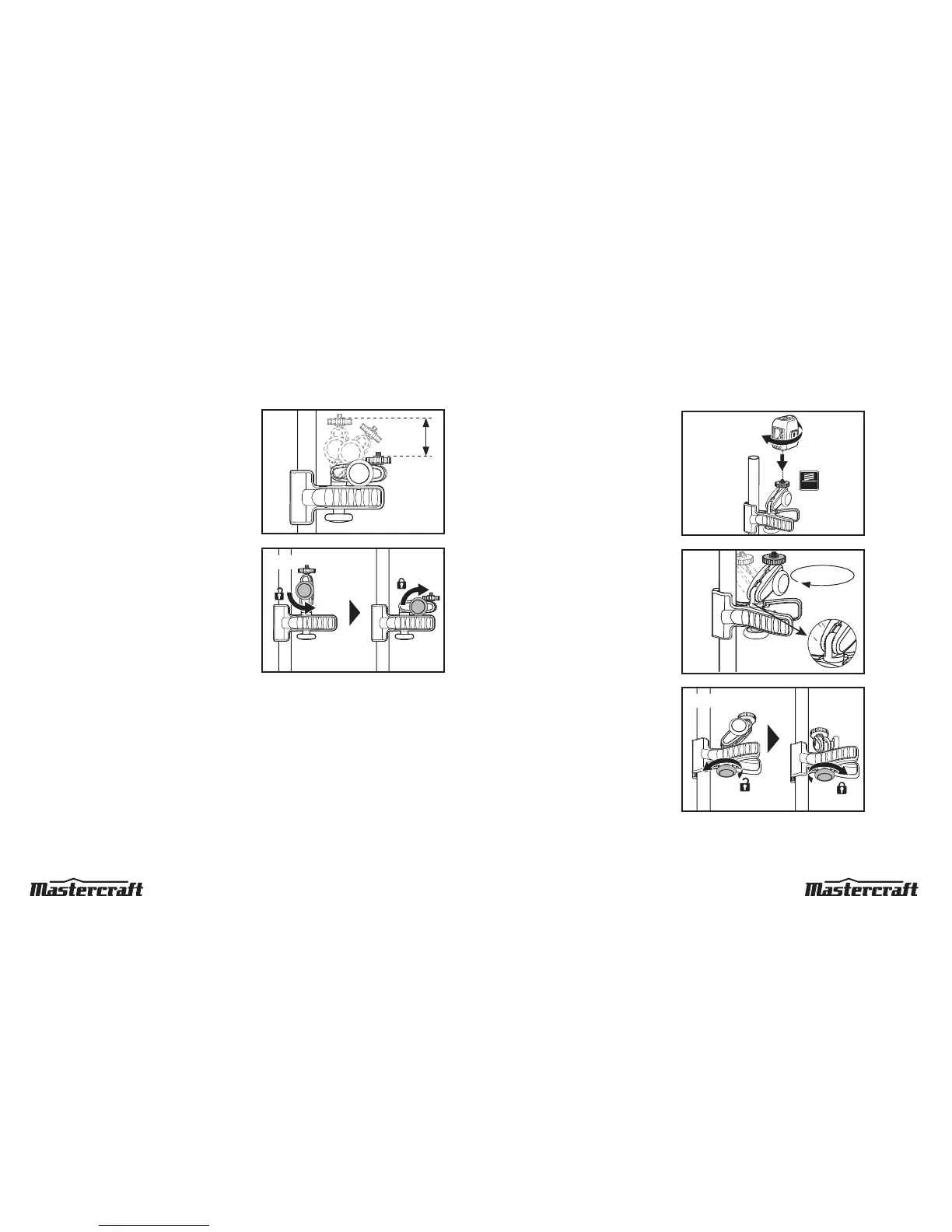

To operate the stand
1. Securely clamp the stand to a pole, pipe
or other suitable item.
2. Loosen Knob 1 and adjust the 1/4"
screw platform to the desired
position. After adjustment tighten
Knob 1 (fig 5 and fig 6).
3. Mount the self-levelling cross-line laser
level to the 1/4" screw platform (fig 7).
4. Loosen Knob 2 and adjust the orientation
of the rod such that the laser beam
projects to your target (fig 8 and fig 9).
5. Tighten Knob 2 again to lock the position.
57 mm
g 5
1/4"
g 7
360°
g 8
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
g 6
g 9
