LOADING THE TOOL WITH BRAD NAILS –
cont’d

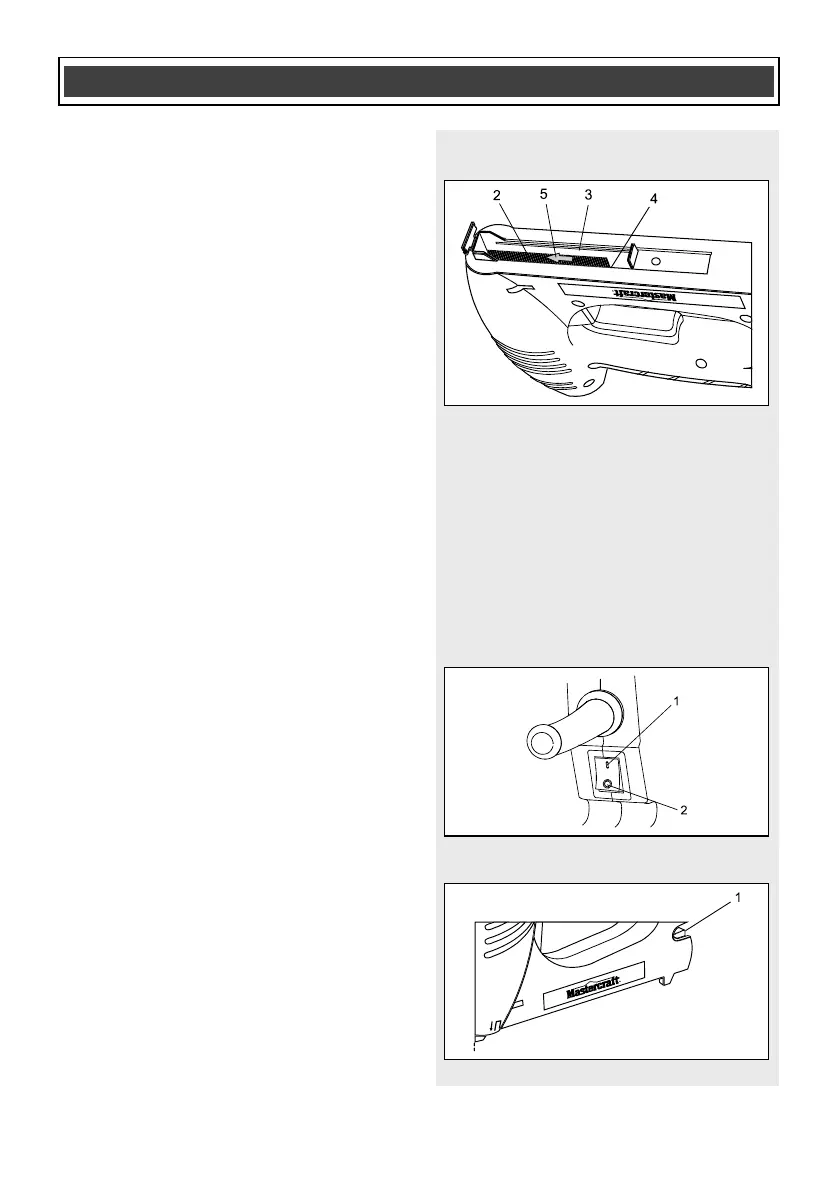

4. Place a nail strip (2) into the magazine
track (3) (Fig. 4).
NOTE: Place the heads of the nail strip (4)
into the magazine track first and lay the
row of nails flat on the right hand side of
the magazine track.
5. Slide the nail strip forward (5) to the
front of the magazine track.
6. Slide the magazine forward until the
magazine latch locks the magazine
into position.
NOTES:
a) If the magazine will not close properly,
do not force it. Check to make sure the nail
strip is properly nested flat against the right
hand side of the magazine cavity.
b) Make sure the magazine latch is fully
engaged to prevent it from coming loose
during operation.
LOADING THE TOOL WITH STAPLES
NOTE: This tool requires a specific type of
staples. Make sure you install T50 3/8"
(10.6 mm) wide staples with a maximum
length of 5/8” (16 mm). Other staples will
not fit properly and may jam in the stapling
mechanism.
1. Turn the ON/OFF switch to the OFF
position and remove the plug from the
power source (Fig. 1).
2. Squeeze the magazine latch (1)
(Fig. 2).
