PARTS LIST

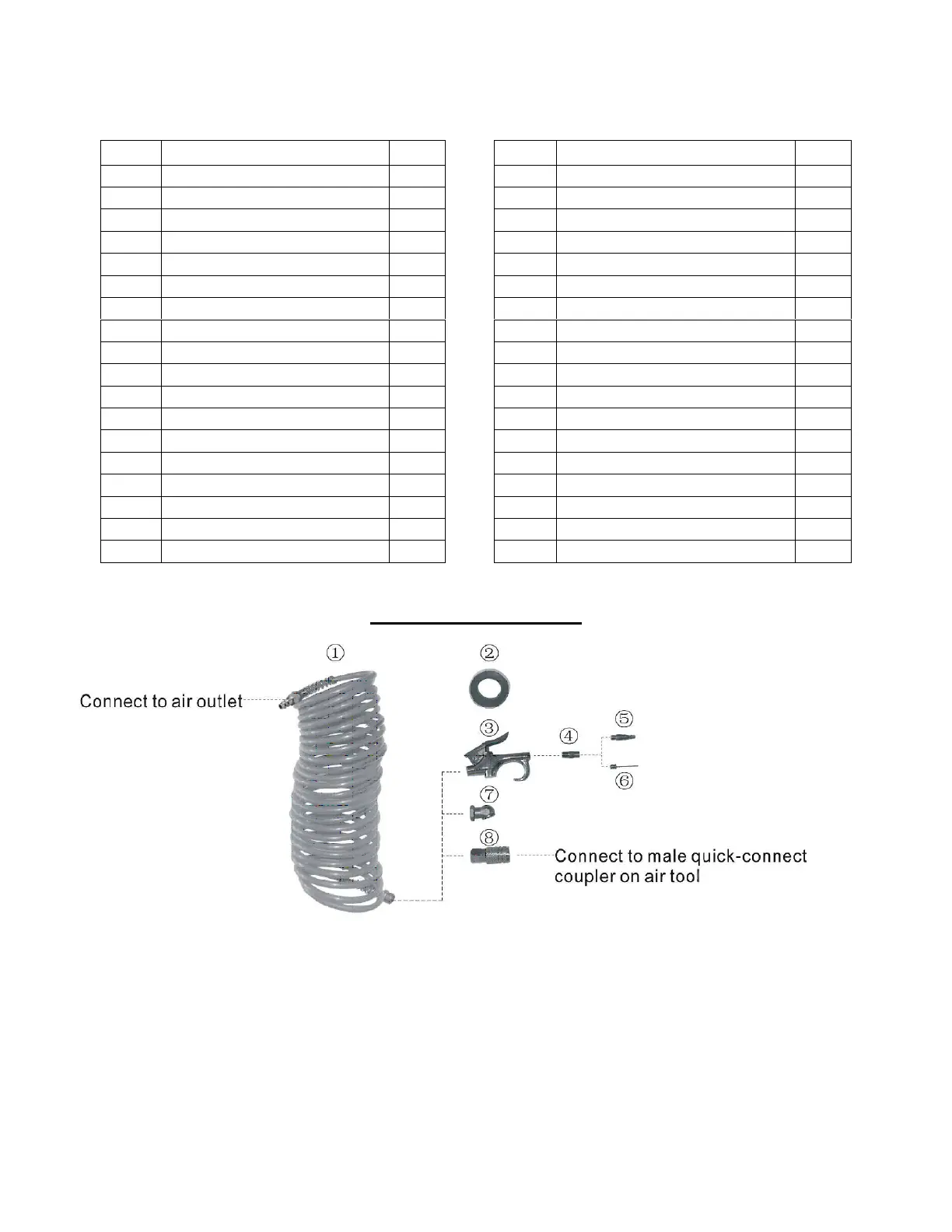

Standard Equipment
1) 25’ recoil hose with ¼” NPT male fitting & quick connector on both ends
2) Non-stick Tape
3) Blow Gun
4) Blow-gun adaptor
5) Tapered inflation nozzle
6) Inflation needle
7) Ball-style tire-inflation chuck
8) ¼” NPT female quick connector
Item# Description Qty Item# Description Qty
1 Tapping Screw
6
19 Rubber pad
2
2 Top shroud
1
20 Tank
1
3 Handle
1
21 Interconnect cord
1
4 Bolt
3
22 Screw
1
5 Washer GB96-85
3
23 Elbow
1
6 Copper sealing ring
2
24 Check valve
1
7 Sponge filter
1
25 Quick connector
1
8 Transfer tube
1
26 Safety valve
1
9 Nut
2
27 Regulator assembly
1
10 O-ring
2
28 Tapping Screw
6
11 Bottom shroud
1
29 Programmed control board
1
12 Anchor
1
30 Tapping Screw
6
13 Thumbscrew
2
31 Spring washer
1
14 Bleeder tube
1
32 Screw
1
15 Power cord
1
33 Elbow
1
16 Wheel
2
34 Crash pad
3
17 Axle cap
2
35 Motor assembly
1
18 Drain valve
1
36 Pump assembly
1
