AIR-POWERED GRAVITY-FEED SPRAY GUN 058-9312-8
Note: Use a piece of cardboard as a shield to capture the loss of spray paint at the ends of the
workpiece to protect other surfaces from being painted.
• The speed of the stroke, the distance from the work surface, and the setting of the paint
adjusting knob vary the amount of paint being applied.
N
ote: Two proper and uniform thin coats of paint, rather than one thick layer, will yield better results
and reduce the chance of runs.

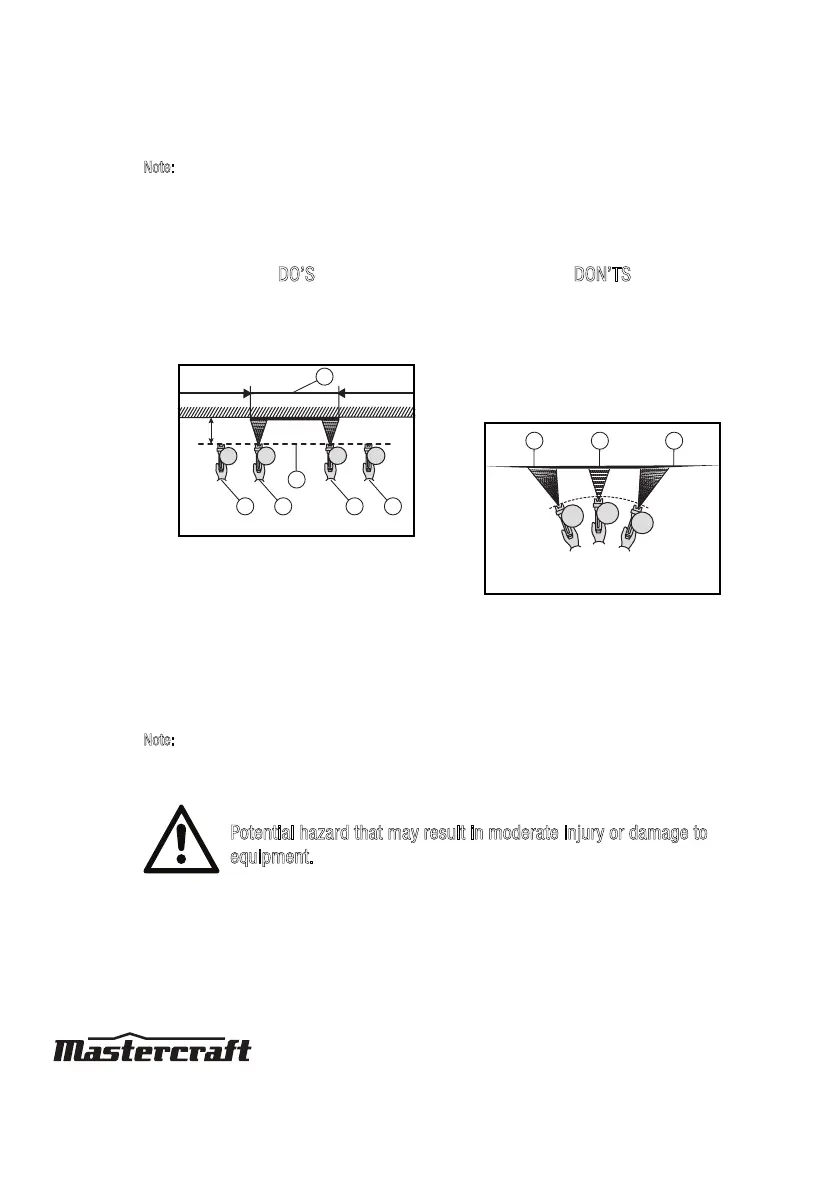

DO’S DON’TS
Always move the gun in a parallel direction.
1. Uniform coating region
2. Stroke starting position
3. Trigger pressing position
4. Trigger releasing position
5. Stroke stopping position
6. Gun movement path
Do not press the trigger with the gun at an
inclined or angled position.
Do not stop the sprayer movement in between
strokes, as this will cause a build-up of paint
and result in runs.
1. Improper/thin coating region
2. Uniform/thick coating region
CAUTION!
Potential hazard that may result in moderate injury or damage to
e
quipment.
• Do not fan the gun while painting. This will cause a build-up of paint in the
centre of the stroke and an insufficient coating at the ends. Failure to
comply may result in moderate injury or damage to equipment.
