MAINTENANCE

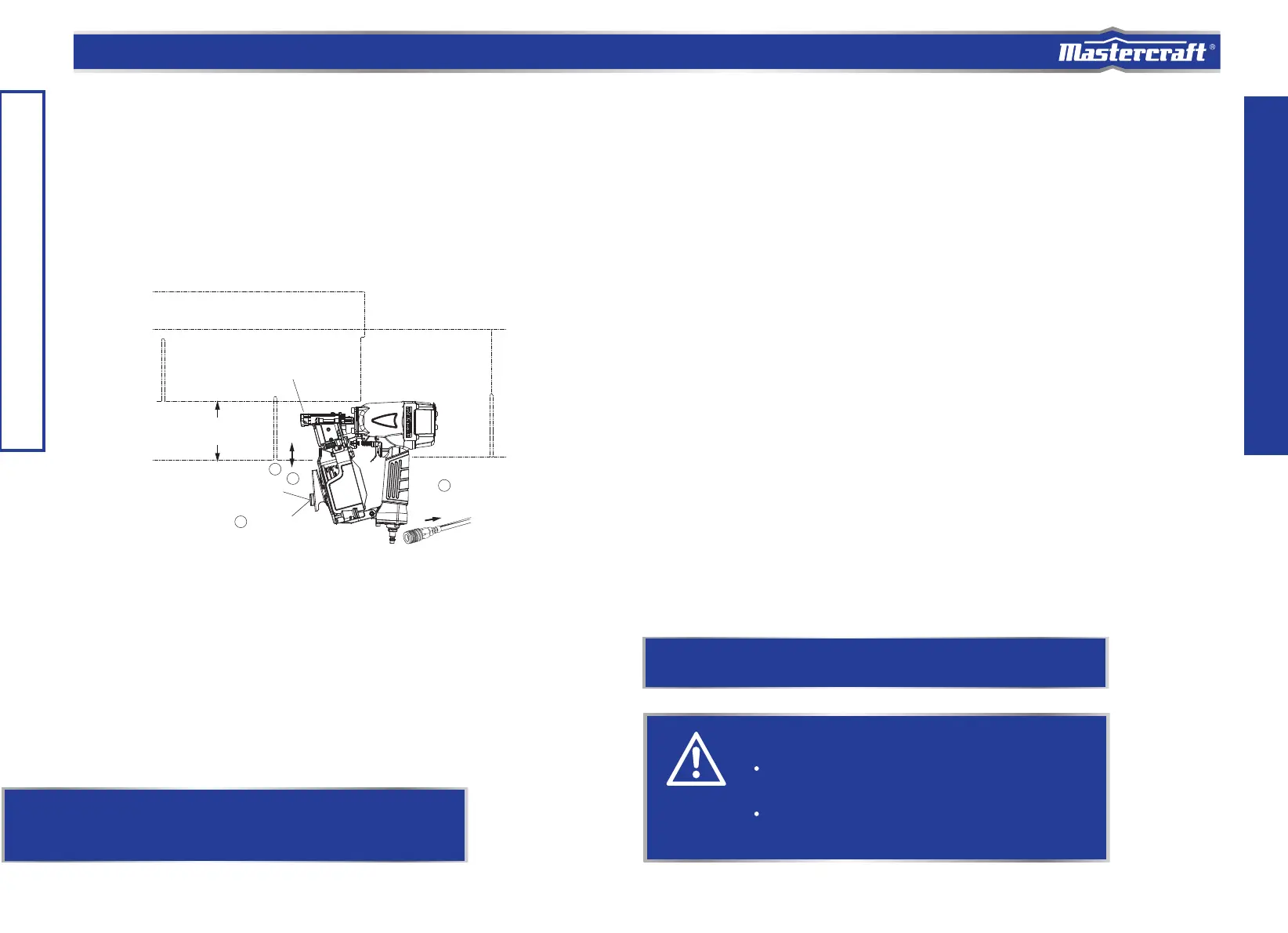

Using the shingle guide
The shingle guide can be used to control shingle spacing.
① Disconnect air hose from nailer.
② Loosen the shingle guide bolt with the accessory hex wrench.
③ Place the shingle guide against the bottom of the first row of shingles.
④ Adjust the distance between the outlet and the shingle guide to the proper shingle exposure by
sliding the shingle guide.
⑤ Tighten the shingle guide bolt.
First row
Disconnect
air hose
Second row
Outlet
Shingle guide
Shingle guide
bolt
1
Proper shingle
exposure
2120
Clearing a jammed nail
● Disconnect the tool from the air supply line.
● Open the nail guide and insert a rod into the outlet. Tap the rod with a hammer.
● Remove the jammed nail with a slotted screwdriver.
● Cut the deformed collated wire with snips. Correct the deformation.
● Remove the non-jammed nails that are stored in the tool’s magazine.
● Operate the magazine latch and slide the pusher back to open the magazine for checking the
jammed nails.
● Use pliers or any appropriate tool to remove the jammed nails.
● Close the magazine cover and slide the pusher to its original position.
● Reload the nails into the tool magazine.
● Reconnect the air supply line to the tool’s air inlet.
● Test fire 3 to 5 nails into a piece of scrap wood in order to ensure proper operation.
To clear a jammed nail
● Verify if the compressor tank has been properly drained prior to use.
● Keep tools as warm as possible using any safe, convenient method.
● Place up to 6 drops of pneumatic tool oil into the tool’s air inlet.
● Adjust the air pressure to 80 PSI or lower.
● Load the nails into the magazine (if required).
● Actuate the tool 5 to 6 times into a scrap wooden piece in order to lubricate the O-rings.
● Adjust the air pressure to the operating level (do not exceed 120 PSI) and use the tool
normally.
● Relubricate the tool, as described in the maintenance section.
● Drain the compressor tank at least once per day.
When operating any air-powered tool below freezing temperature:
Cold weather operation
Note: If the nails continue to jam, call 1-800-689-9928.
WARNING!
Potential hazard that will result in serious injury or death.
Disconnect the tool from the air supply line before clearing a
jammed nail. Failure to comply could cause them to be fired
out of the tool causing serious injury.
Do not point the tool towards the operator or other people.
Serious personal injury could result if these instructions are
not followed.
OPERATING INSTRUCTIONS
model no. 058-9809-8 | contact us 1-800-689-9928
model no. 058-9816-0 | contact us 1-800-689-9928
3
4
2
Note: The proper shingle exposure will depend on the type of shingle
and the manufacturer's specifications.
The shingle guide is not to be utilized as an indicator of nail location.
