OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
model no. 058-9809-8 | contact us 1-800-689-9928
model no. 058-9816-0 | contact us 1-800-689-9928
Note: Be aware that the final nail can fall out or be driven at an irregular angle.

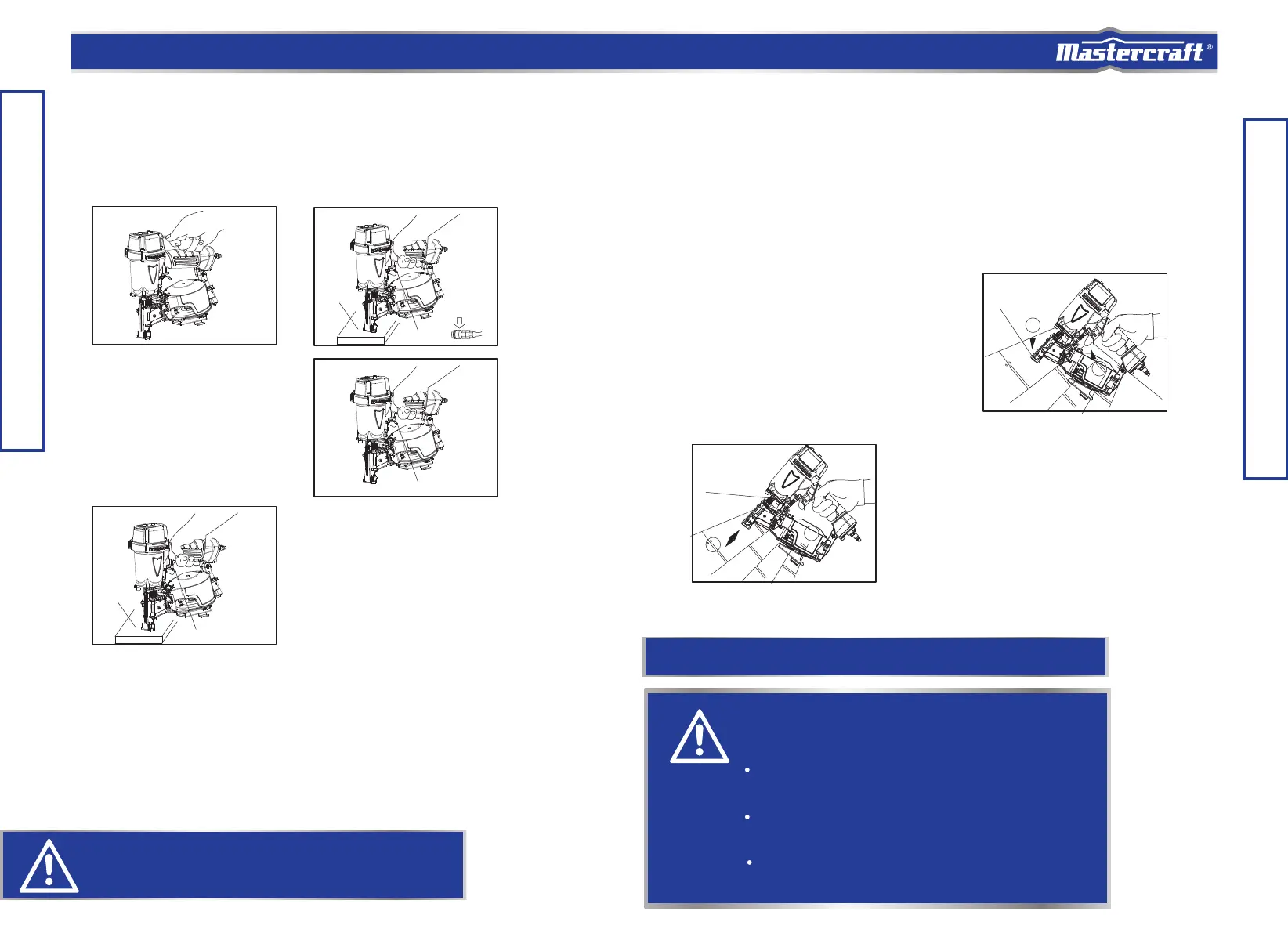

Firing modes
Testing the nailer
Potential hazard that may result in moderate injury or
damage to equipment.
WARNING!
Keep your finger off the trigger except when nailing. Serious
injury could result if the push lever accidentally contacts you or
others in work area.
Keep hands and body away from the discharge area. This
Mastercraft
®
nailer may bounce from the recoil of driving a nail
and unexpectedly drive another nail, possibly causing injury.
Some types of loaded nails can spark out of the muzzle during
a nail driving operation. Exercise caution!
WARNING!
The Mastercraft® Air-powered Coiled Roofing Nailer has two firing modes: sequential fire for single firing,
or bump fire for repetitive, fast firing of nails. The bump fire trigger kit comes installed on the nailer, and
the sequential fire trigger kit is included as replacement parts. See page 18 for instructions on how to
change from one mode to the other.
1. Sequential fire (single shot)
① Position the nail outlet on the workpiece with finger
off the trigger.
② Push the nailer down until the push lever is
completely depressed.
③ Pull the trigger to drive a nail.
④ Remove finger from the trigger.
⑤ To drive another nail, move the nailer along the
workpiece, repeating steps 1 to 4 as required (Fig. J).
2. Bump fire (multiple shots)
① Pull the trigger with the nailer off the workpiece.
② Drive a nail by pressing the nailer against the
workpiece to depress the push lever.
③ Drive additional nails by moving the nailer along
the workpiece with a bouncing motion. Each
depression of the push lever will drive a nail.
When the required nails have been driven,
remove finger from the trigger (Fig. K).
Previously pull
the trigger
1
3
Push lever
Trigger
2
3
METHODS OF OPERATION
This nailer is equipped with a push lever at the nailing point and will not operate unless the push lever is
depressed (pushed upwards).
Each mode requires a different method of operation:
1. DISCONNECT AIR HOSE FROM NAILER. REMOVE ALL NAILS FROM NAILER.
● All screws must be tightened. If any
screws are loose, tighten them
(Fig. F).
● The push lever and trigger must move
smoothly
(Fig. G).
2. Adjust the air pressure to 70 PSI (4.9 bar or
5 kgf/cm
2
). Connect the air hose.
Do not load any nails in the nailer
(Fig. H).
● THE NAILER MUST NOT LEAK AIR.
Hold the nailer downward and pull
the trigger.
● THE NAILER MUST NOT OPERATE.
3. With finger off the trigger, depress the
push lever against the workpiece
(Fig. I).
● THE NAILER MUST NOT OPERATE.
4. Without touching the trigger, depress the push lever against the workpiece.
Pull the trigger.
● THE NAILER MUST OPERATE.
5. With the nailer off the workpiece, pull the trigger. Depress the push lever against the
workpiece.
● THE NAILER MUST OPERATE.
6. If no abnormal operation is observed, you may load nails in the nailer.
Drive nails into a test piece that is the same type of material that will be used in the
actual application.
● THE NAILER MUST OPERATE PROPERLY.
Pull trigger
Do not pull trigger
Depress
push lever
Trigger
Push lever
Do not
connect
air hose
Fig. F
Fig. I
Fig. G
Fig. H
Fig. J
Fig. K
Before actually beginning the nailing work, test the nailer by using the check list below. Conduct the
tests in the following order. If abnormal operation occurs, stop using the nailer and contact a service
centre immediately.
● Never use nailer unless push lever is operating properly.
Always wear eye protection.
