ASSEMBLY INSTRUCTIONS
7. Install the Base Panel (Part
7) and Wheels (Part 12 13)
A: Fit the Bottom Panel (Part 7)
between the Back Frame (Part 3)
and Front Frame (Part 2) as shown
in Fig G. Line up the screw holes
and use eight Screws (Part 16) and
Screwdriver (Part 21) to fasten it.
B: Attach Wheels (Part 12 and 13)
using the Wrench (Part 25) to
tighten. Make sure that the Wheels
w/o Brakes (Part 13) are on the
Left Panel (Part 4), and Wheels with
Brakes (Part 12) are on the Right
Panel (Part 5) (Fig. G).
8. Install the Bumpers (Part 57)
Attach Bumpers (Part 57) to the
bottom four corners of the Cabinet.
Use 16 Screws (Part 42) and
Screwdriver (Part 21) to fasten.
Then, rotate/ stand the cabinet
upright (Fig. H).

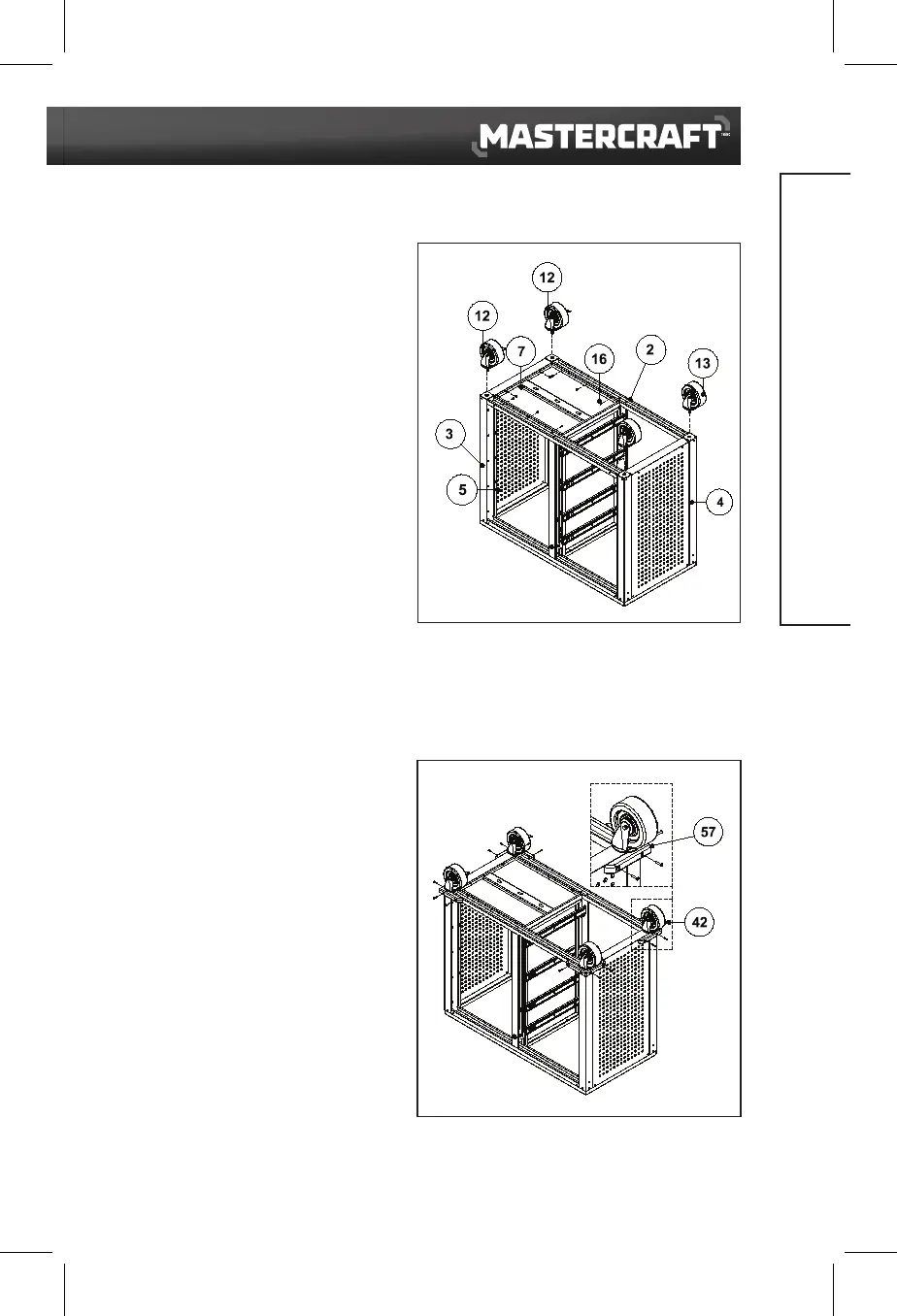

Fig. G
Fig. H
To Next Page
